26
8. POWER ON/OFF
When the power cannot be switched ON or the power is soon turned OFF even though the battery is mounted,
there may be almost no battery power remaining. Replace it with a fully charged battery.
"34. WARNING AND ERROR MESSAGES"

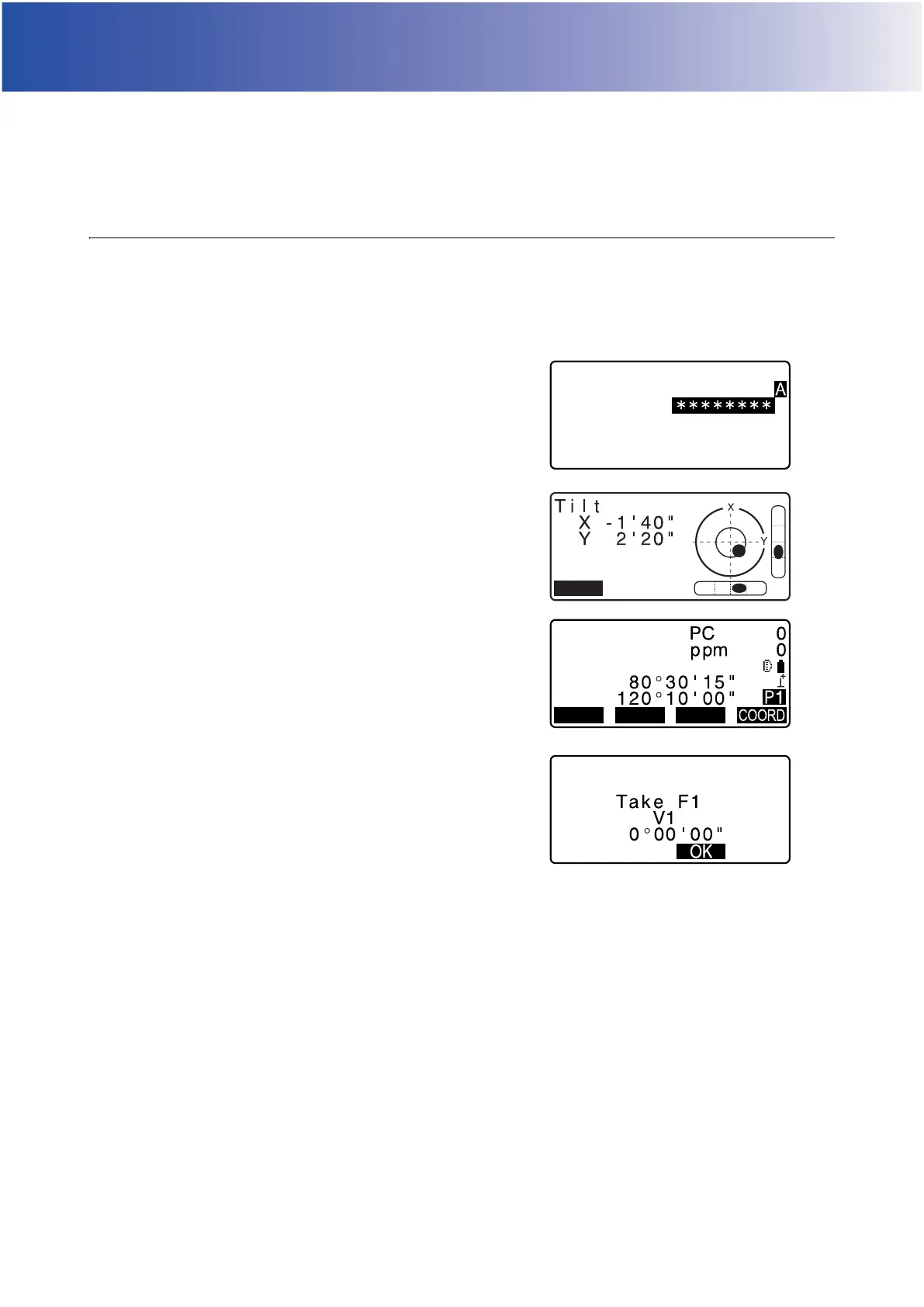

PROCEDURE Power ON
1. Press and hold (about 1 sec) the power key on the
operation panel.
When the power is switched on, a self-check is run to make
sure the instrument is operating normally.
When password is set, the display appears as at right. Input
password and press {ENT}.
Then, the electric circular level is displayed in the screen.
After leveling the instrument, press [OK] to enter into the
OBS mode.
"7.2 Levelling"
When “V manual” is set to “Yes”, the display appears as at
right after leveling the instrument and press [OK].
Manually indexing the vertical circle by Face 1/2
measurements: "41. EXPLANATIONS"
If “Out of range” or the Tilt screen is displayed, level the
instrument again.
“Tilt crn” in “Obs. condition” should be set to “No” if the display
is unsteady due to vibration or strong wind.
"33.1 Observation Conditions - Angle/Tilt"
When “Resume” in “Instr. config” is set to “On”, the screen previous to power off is displayed (except when
missing line measurement was being performed).
"33.1 Observation Conditions - Angle/Tilt"
Resume function
The Resume function redisplays the screen appearing before the instrument was powered OFF when the
instrument is powered back ON. All parameter settings are also saved. Even if remaining battery power is
completely depleted, this function will remain active for 1 minute, after which it is canceled. Replace a
depleted battery as soon as possible.
P a s s w o r d :
O K
OBS
SD
ZA
HA-R
SHVMEAS 0SET
0 Set
ZA
HA-R
