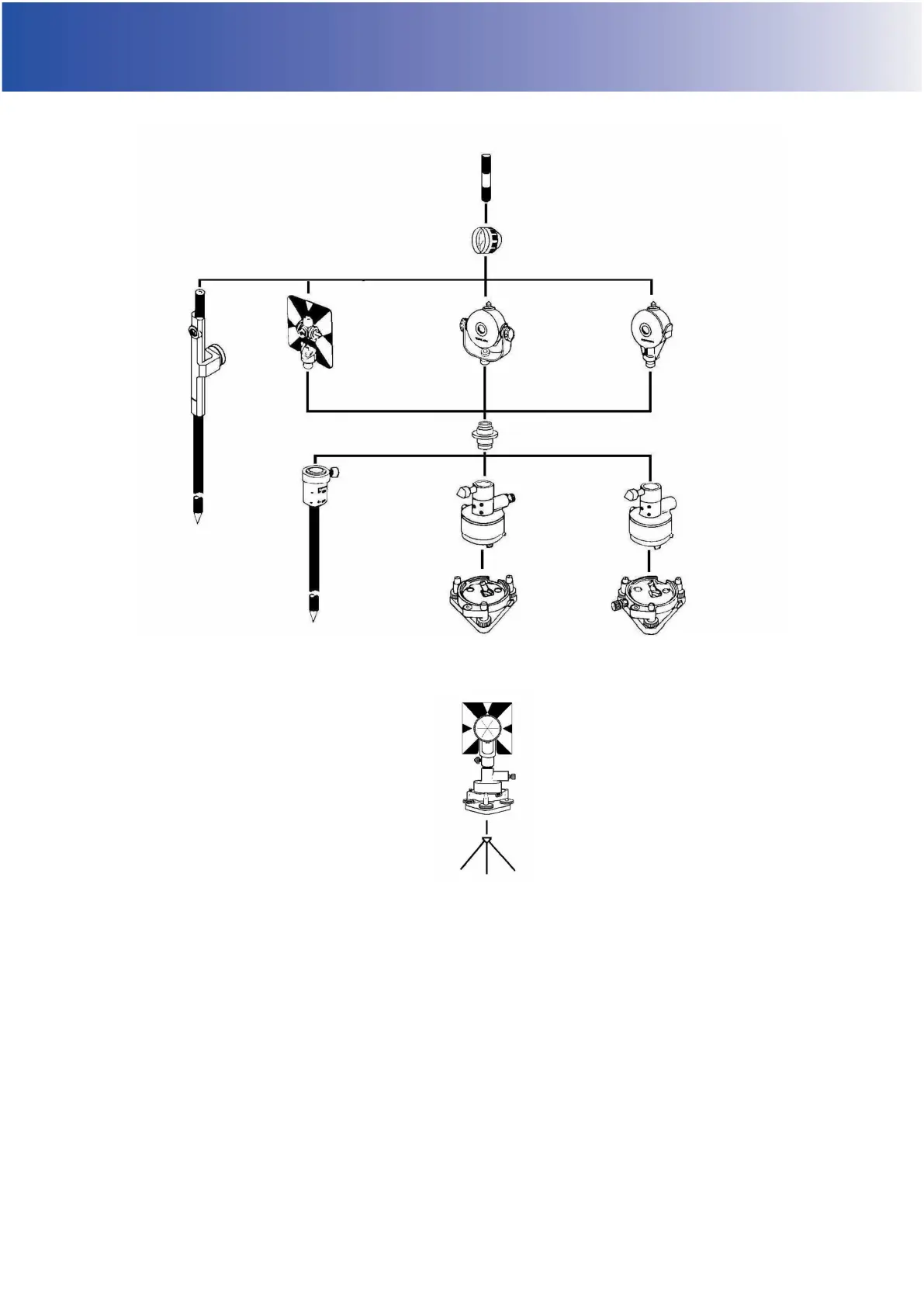

38.PRISM SYSTEM
Arrangement according to your needs is possible.
• Plug-4 is necessary for the tribrach adaptor-2, tribrach adaptor-S2 and pole adaptor-F2 to coincide with
the height of this series.
Use the above prisms after setting them at the same height as the instruments. To adjust the height of
prism set, change the position of fixing screws.
• During a traverse observavtion, it is recommended to use the same type (tribrach-TR-102/103R/112) of
tribrach for the target.
Tilt single prism unit
Tripod
Target pole-2
Prism-2
Tribrach
adaptor-2
Tribrach
adaptor-S2
Tilting prism holder-2
with target plate-2
Pole adaptor- A
Tilting prism
holder-3
Single prism
holder-2
Pole adaptor- F2
Tribrach TR-102/103R
Optical plummet tribrach TR-112
Plug-4
