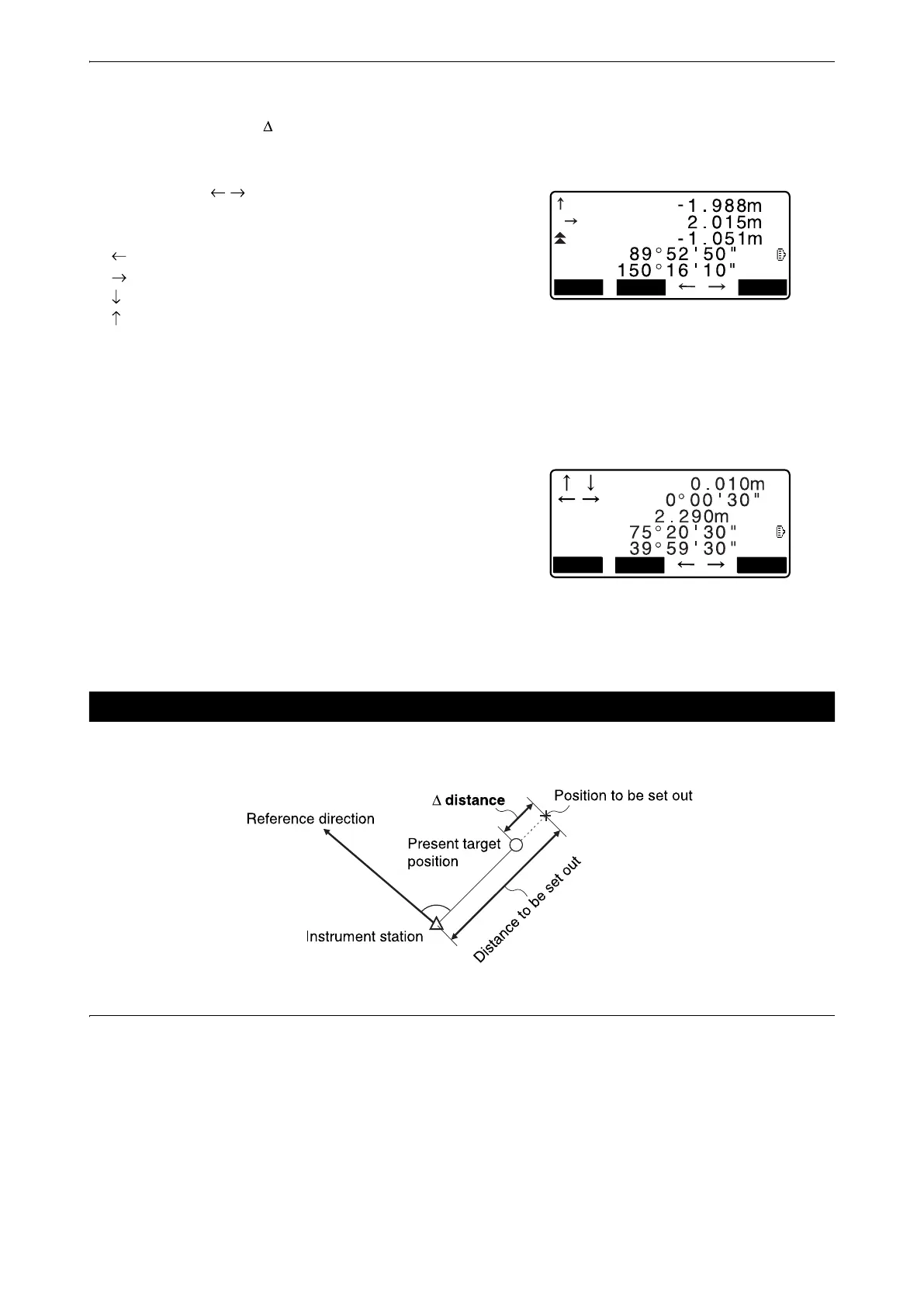

15. SETTING-OUT MEASUREMENT
8. Move the prism forward and backward until the setting-out
distance is 0 m. If S-O HD is “+”, move the prism toward
yourself, if it is “-”, move the prism away from yourself.
• By pressing [ ], an arrow pointing to the left or right
displays which direction the target should be moved.
: Move the prism to left.
: Move the prism to right.
: Move the prism forward.
: Move the prism away.
: Move the prism upward.
: Move the prism downward.
When the target is within measurement range, all four
arrows are displayed.
9. Press {ESC} to return to step 4.
• When [LOAD] was used in step 4, the list of registered
coordinates is restored. Continue setting-out
measurement.
• [REC]: records measurement results
Recording method: "28. RECORDING DATA - TOPO
MENU -"
The point to be found based on the horizontal angle from the reference direction and the distance from the
instrument station.
PROCEDURE
1. Press [S-O] in the third page of the OBS mode screen to
display <S-O>.
2. Select "Occ.orien." to set the instrument station data and
azimuth angle of the backsight point.
"13.1 Entering Instrument Station Data and Azimuth
Angle PROCEDURE Reading in Registered Coordinate
Data"
15.2 Distance Setting-out Measurement
MEAS
DISP
REC
ZA
HA-R
Cut
R
Back
HD
ZA
HA-R
MEASREC
MEAS
DISP
REC
To Next Page
