63
15. SETTING-OUT MEASUREMENT
3. Select “S-O data.”
4. Press [DISP] to change the distance input mode to <S-O
H>.
• Each time [DISP] is pressed: S-O Coord (coordinates), S-
O HD (horizontal distance), S-O SD (slope distance), S-O
VD (height difference), S-O Ht. (REM measurement).
15.1 Coordinates Setting-out Measurement, 15.3 REM
Setting-out Measurement
• When [LOAD] is pressed, registered coordinates can be
recalled and used. Distance and angle are calculated using
the coordinate value.
"13.1 Entering Instrument Station Data and Azimuth
Angle PROCEDURE Reading in Registered
Coordinate Data"

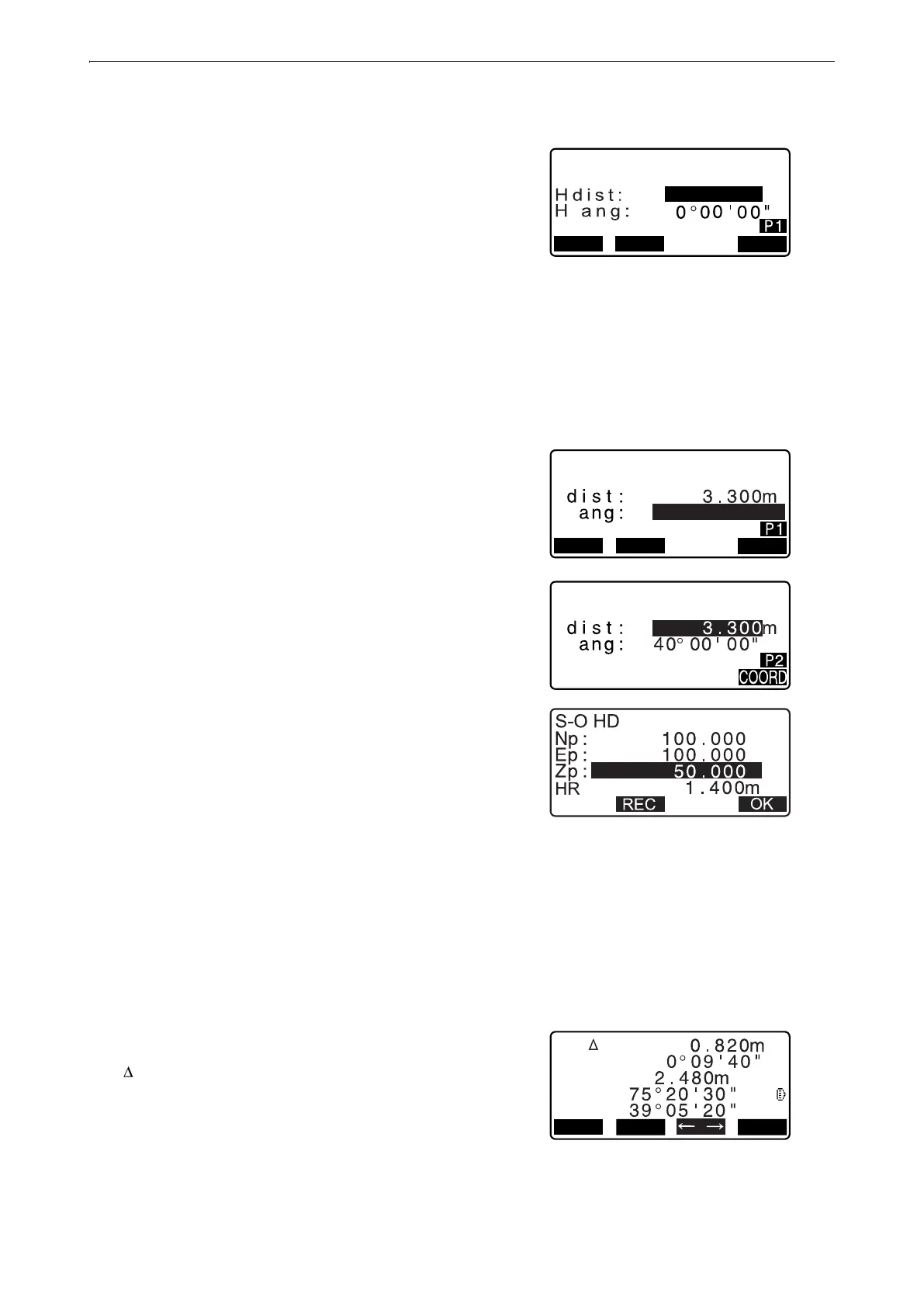

5. Set the following items.
(1) Sdist/Hdist/Vdist: distance from the instrument station to
the position to be set out.
(2) H ang: included angle between the direction of the
reference and the point to be set out.
• Pressing [COORD] in the second page allows you to enter
the coordinates of the point to be set out.
6. Press [OK] to set the input values.
• The tilt screen is displayed if the instrument is out of level.
Level the instrument.
"7.2 Levelling"
7. Rotate the top of the instrument until “dHA” is 0° and place
the target on the sight line.
8. Press [MEAS] to start distance measurement. The target
and the distance of the point to be set out is displayed (S-
O HD).
9. Move the prism to find the point to be set out.
0 . 0 0 0 m
OK
LOAD DISP
S-O HD
H
H
40. 000 0
OK
LOAD DISP
S-O HD
H
H
S-O HD
S-O HD
dHA
HD
ZA
HA-R
MEAS
DISP
REC
To Next Page
