68
16. SETTING-OUT LINE

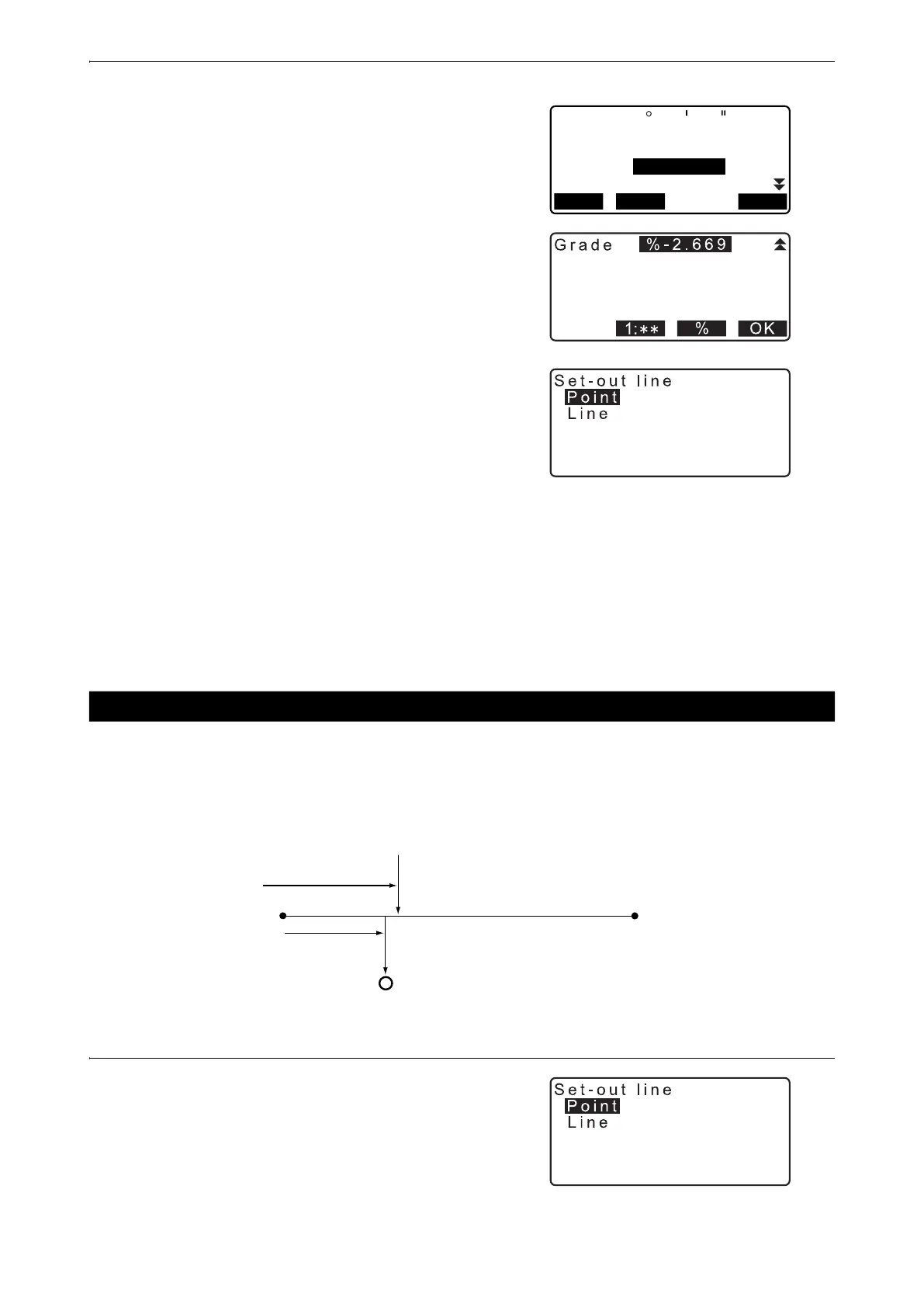

• Scale factor settings can be set in the screen shown at
right.
8. Press [OK] on the third screen of step 7 to define the
baseline. <Set-out line> is displayed. Move to setting-line
measurement.
"16.2 Setting-out Line Point"/"16.3 Setting-out Line Line"
• Press [Sy=1] to set scale factor y to “1”.
• Press [1 : **] to change the grade display mode to “1 : * * =
elevation : horizontal distance”.
• It is also possible to perform setting-out line measurement by pressing [S-O LINE] when allocated to the OBS
mode screen.
Allocating [S-O LINE]: "33.12 Allocating Key Functions".
Setting-out line point measurement can be used to find the required point coordinate by inputting the length
and offset based on the baseline.
• Before performing setting-out line point, the baseline must be defined.
PROCEDURE
1. Select “Point” in <Set-out line>
16.2 Setting-out Line Point
A z m t h
H c a l c
H m e a s
S c a l e X
Sy=1
Sy=Sx
OK
1.0 000 91
13. 003 m
17. 294 m
S c a l e Y
1.0 000 91
93 20 3 1
Baseline
1st Pt.
Length
X direction
Y direction
Offset
Required point
2nd Pt.
To Next Page
