67
16. SETTING-OUT LINE
12.Press [OK] on the screen of step 11 to define the baseline.
<Set-out line> is displayed. Move to setting-line
measurement.
"16.2 Setting-out Line Point"/"16.3 Setting-out Line Line"
• Press [Sy=1] to set scale factor y to “1”.
• Press [1 : **] to change the grade display mode to “1 : * * =
elevation : horizontal distance”.
• It is also possible to perform setting-out line measurement by pressing [S-O LINE] when allocated to the OBS
mode screen.
Allocating [S-O LINE]: "33.12 Allocating Key Functions".

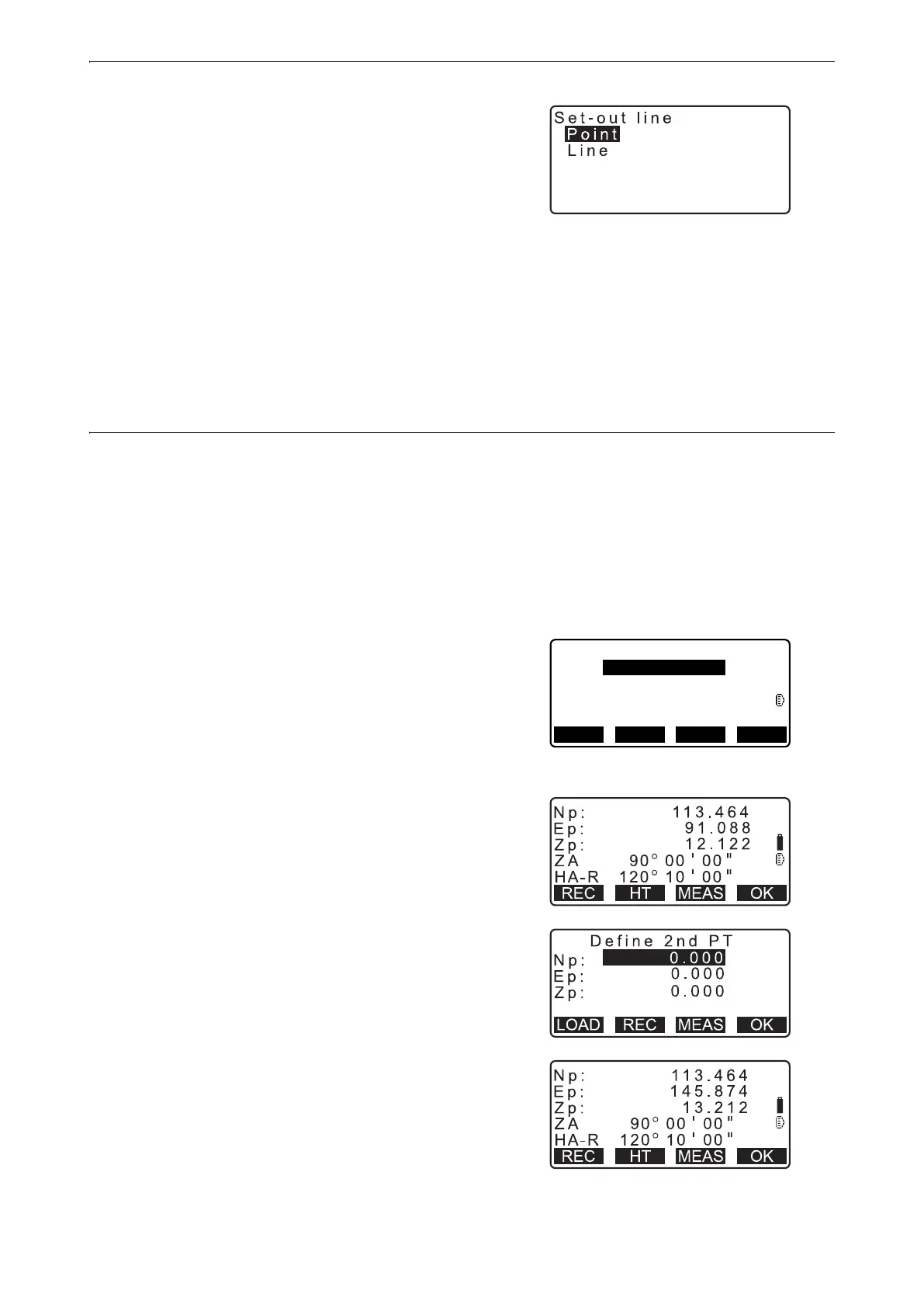

PROCEDURE Defining by observation
1. In the second page of OBS mode screen, press [MENU],
then select "S-O line".
2. Enter the instrument station data.
"13.1 Entering Instrument Station Data and Azimuth
Angle"
3. Select “Define baseline” in <Set-out line>.
4. Sight the first point and press [MEAS].
• Press [STOP] to stop the measurement.
• The tilt screen is displayed if the instrument is out of level.
Level the instrument.
"7.2 Levelling"
5. Press [OK] to use the measurement results of the first
point.
• Press [MEAS] to observe the first point again.
• Press [HT] to input instrument and target height.
6. Sight the second point and press [MEAS].
7. Press [OK] to use the measurement results of the second
point.
• Press [MEAS] to observe the second point again.
• Press [HT] to input instrument and target height.
D e f i n e 1 s t P T
N p :
E p :
Z p :
0 . 0 0 0
0 . 0 0 0
0 . 0 0 0
RECLOAD MEAS OK
