16.SETTING-OUT LINE

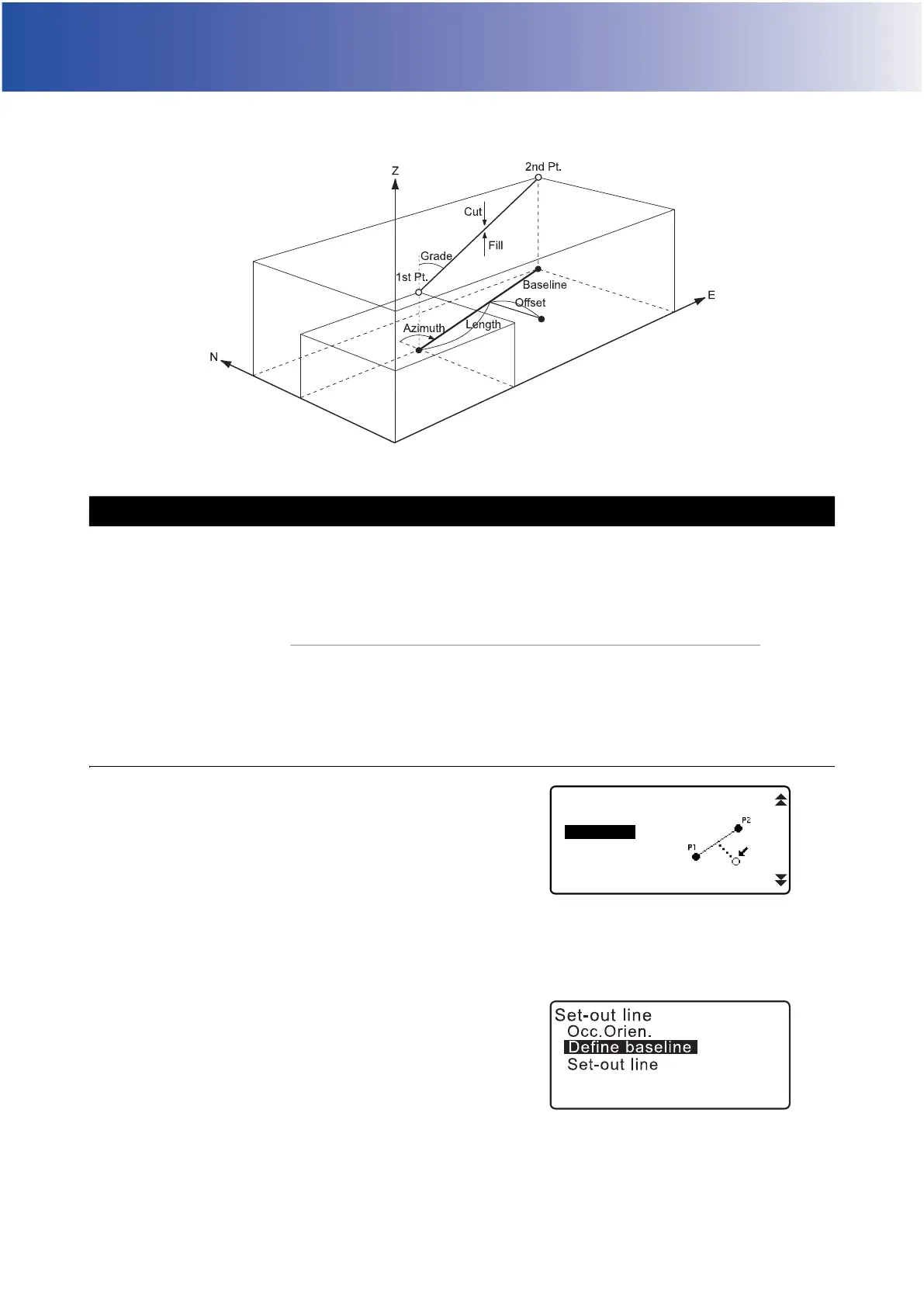

Setting-out line is used for setting out a required point at a designated distance from the baseline and for finding
the distance from the baseline to a measured point.
To perform setting-out line measurement, first, define the baseline. The baseline can be defined by inputting
the coordinates of, or by observing the two points. The scale factor value is the difference between the input
coordinates and the observed coordinates.
• When not observing first or second points, scale factor is set to “1”.
• Defined baseline can be used in both setting-out line measurement and point projection.
PROCEDURE Defining by inputting coordinates
1. In the second page of OBS mode screen, press [MENU],
then select "S-O line".
2. Enter the instrument station data.
"13.1 Entering Instrument Station Data and Azimuth
Angle"
3. Select “Define baseline” in <Set-out line>.
16.1 Defining Baseline
Scale (X, Y) =
Hdist’ (horizontal distance calculated from the measured value)
Hdist (horizontal distance calculated from the input coordinates)
REM
Area calc.
S-O Line
S-O Arc
PT to line
P-Project
To Next Page
