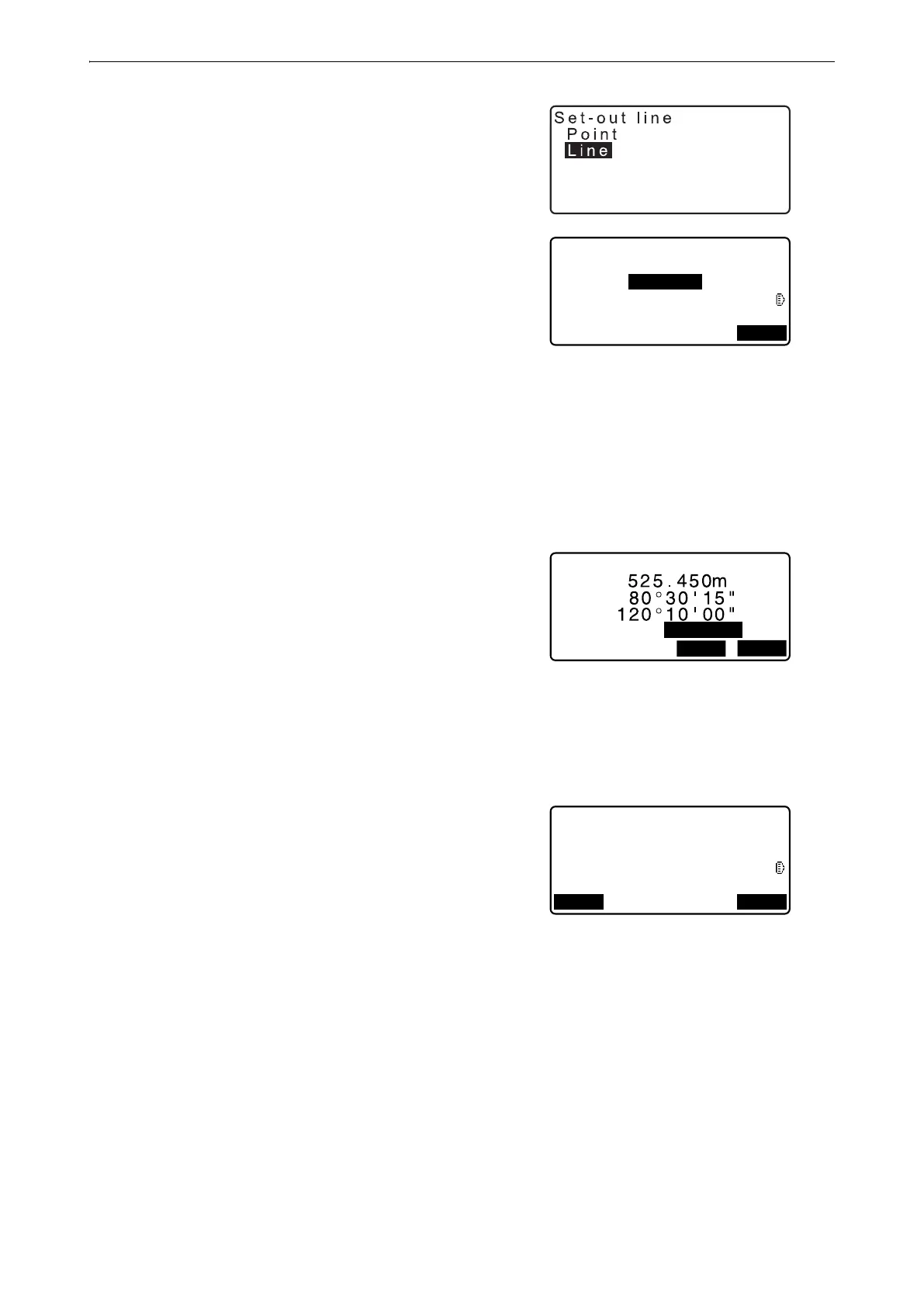

16. SETTING-OUT LINE
1. Select “Line” in <Set-out line>.
2. Enter the offset value.
• Offset: How much to move the baseline.
A positive value indicates right side and a negative value
indicates left side.
• When not setting offset value, go to step 3.
3. Sight the target and press [MEAS] on the screen of step 2.
The measurement results are displayed on the screen.
Press [STOP] to stop the measurement.
• The tilt screen is displayed if the instrument is out of level.
Level the instrument.
"7.2 Levelling"
4. Press [YES] to use the measurement results.
Displays the difference between the measured point and the
baseline.
• Offline: A positive value indicates the point is on the right of
the baseline and a negative value indicates it is on the left.
• “Cut” indicates that the point is below the baseline.
• “Fill” indicates that the point is above the baseline.
• Length: Distance along the baseline from the first point to
the measured point.
• Press [NO] to observe the target again.
5. Sight the next target and press [MEAS] to continue the
measurement.
• Press [REC]: records measurement results.
 Recording method: "28. RECORDING DATA - TOPO
MENU -"
S e t - o u t l i n e
O f f s e t
0 . 0 0 0 m

MEAS
Set-out line
NO
YES
HR
1.400m
SD
ZA
HA-R
S e t - o u t l i n e
0.0 06m
-0.0 04 m
Offline
Cut
12. 917 m
Length

MEASREC
