Topcon GM-100 Series User Manual

138

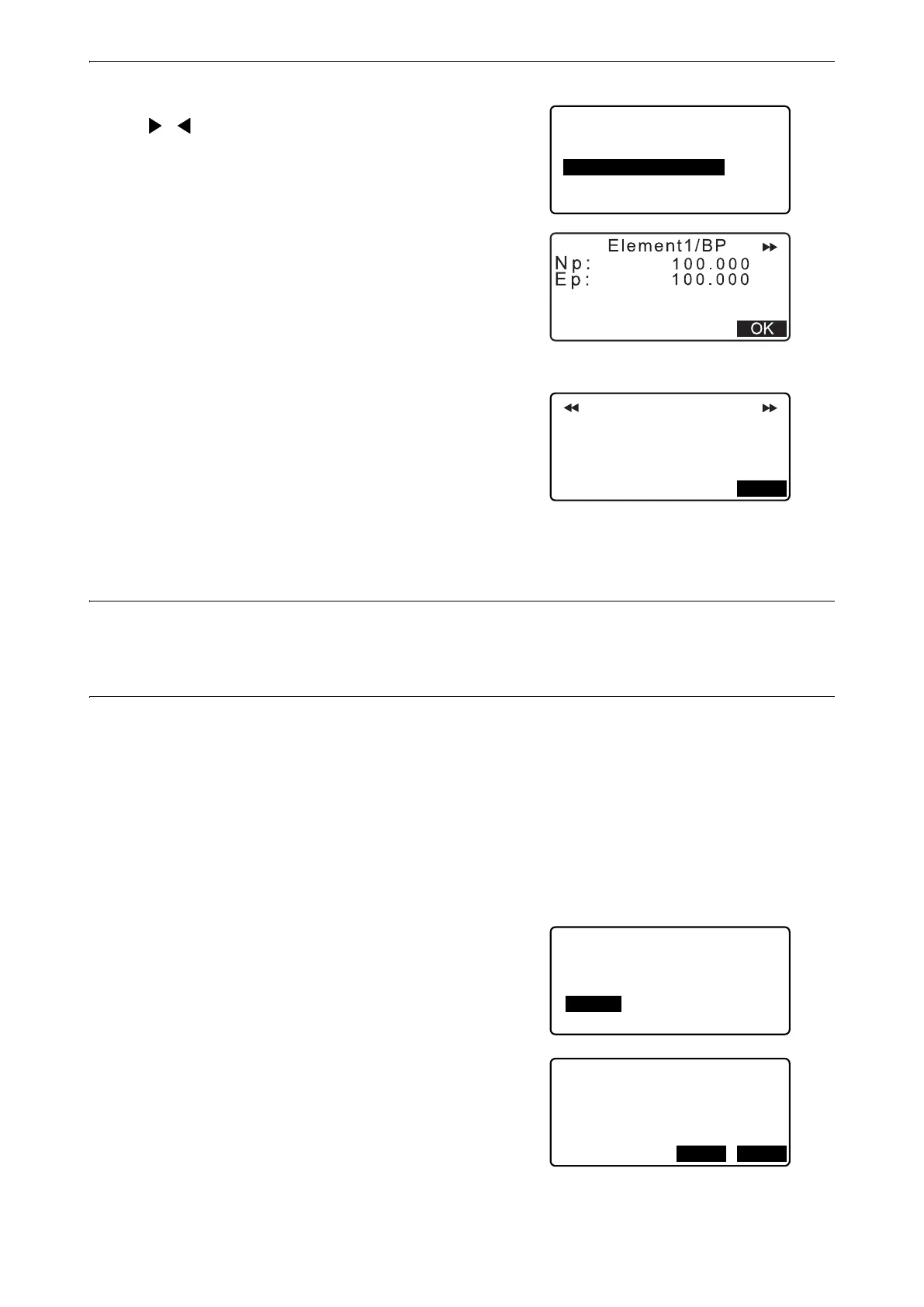

25. ROUTE SURVEYING
3. Align the cursor with "Review elements" and press {ENT}.
Use { }/{ } to move through property screens in the
following order: BP Point -> IP Point -> EP Point -> curve
properties -> BP Point of the next curve.
4. Press [OK] to return to <Define elements>.
25.8.4 Clearing Data
The route data set with the procedures in 25.8.1 Inputting IPs (Intersection Points) and 25.8.2 Inputting Curve
Elements can be cleared.
PROCEDURE
1. Enter the Route Calculation menu.
Press [MENU] on the third page of the OBS mode to enter
the Route Calculation menu.
2. Enter the Alignment Calculation menu.
Select "Alignment".
3. Enter the Curve Element Setting menu.
Select "Define elements".
4. Enter the Clearing menu.
Select "Clear".
5. Clear the route data.
Press [YES] to clear all the route data.
• Pressing [NO] returns to the <Curve Element Setting>
screen.
I n p u t I P
Defin e eleme nts
I n p u t e l e m e n t
R e v i e w e l e m e n t s
C l e a r
S t . o f s
R a d i u s
6 0 . 0 0 0 m
0 . 0 0 0 m
P a r a A 1
5 0 . 0 0 0 m
P a r a A 2
5 0 . 0 0 0 m
Elem ent1
OK
・
・
・
I n p u t I P
Defin e eleme nts
I n p u t e l e m e n t
R e v i e w e l e m e n t s
C l e a r
Clear A lld e letions
Confi rm ?
YESNO
