26. CROSS SECTION SURVEY

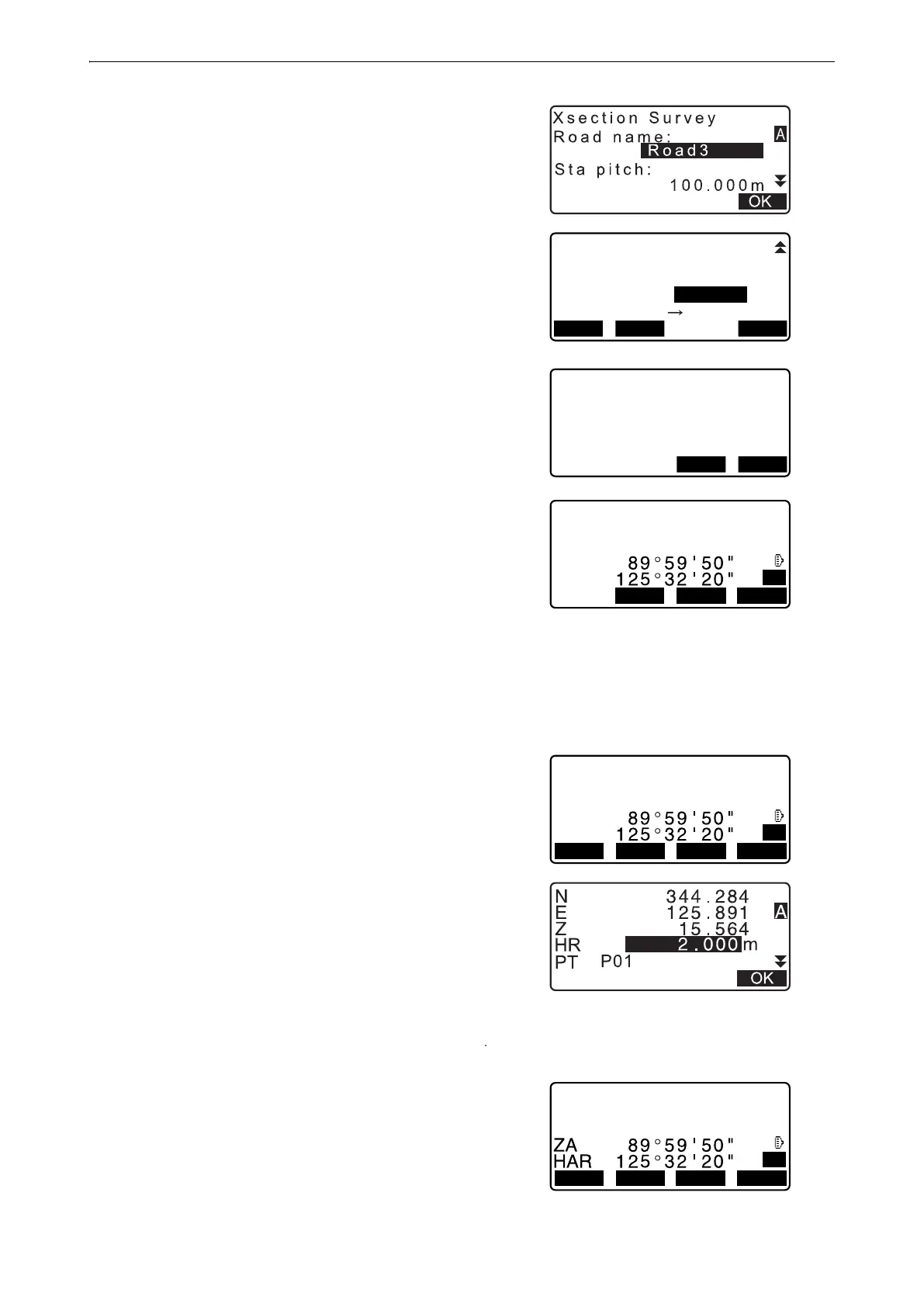

4. Input road name for cross section survey, station pitch,
station increment, stationing chainage and select direction.
Then press [OK].
• Press [STA-]/[STA+] to decrease/increase the pitch set in
"Sta incr" from/to "Stationing chainage". Stationing
chainage is displayed as "xx+xx.xx".
• In the event that stationing chainage was the same as the
prior observation, cross-section survey is judged to have
finished and a confirmation message window is displayed.
Press [YES] to proceed to step 5. Press [NO] to set station
pitch, station chainage, and direction again.
5. Sight the last point on the cross-section and press [MEAS].
" Direction""
• Press [HT] to set instrument and target height.
• Press [OFFSET] on the second page to perform offset
measurement for the last point.
• When observing the center point first, the center point
needs to be set.
Step 8
6. Press [REC]. Enter target height, point name and code,
then press [OK].
7. Repeat steps 5 to 6 for all points on the cross-section in the
set observation direction until the centerline is reached
8. Observe the center point. Then press [OK].
