Topcon GM-100 Series User Manual

150

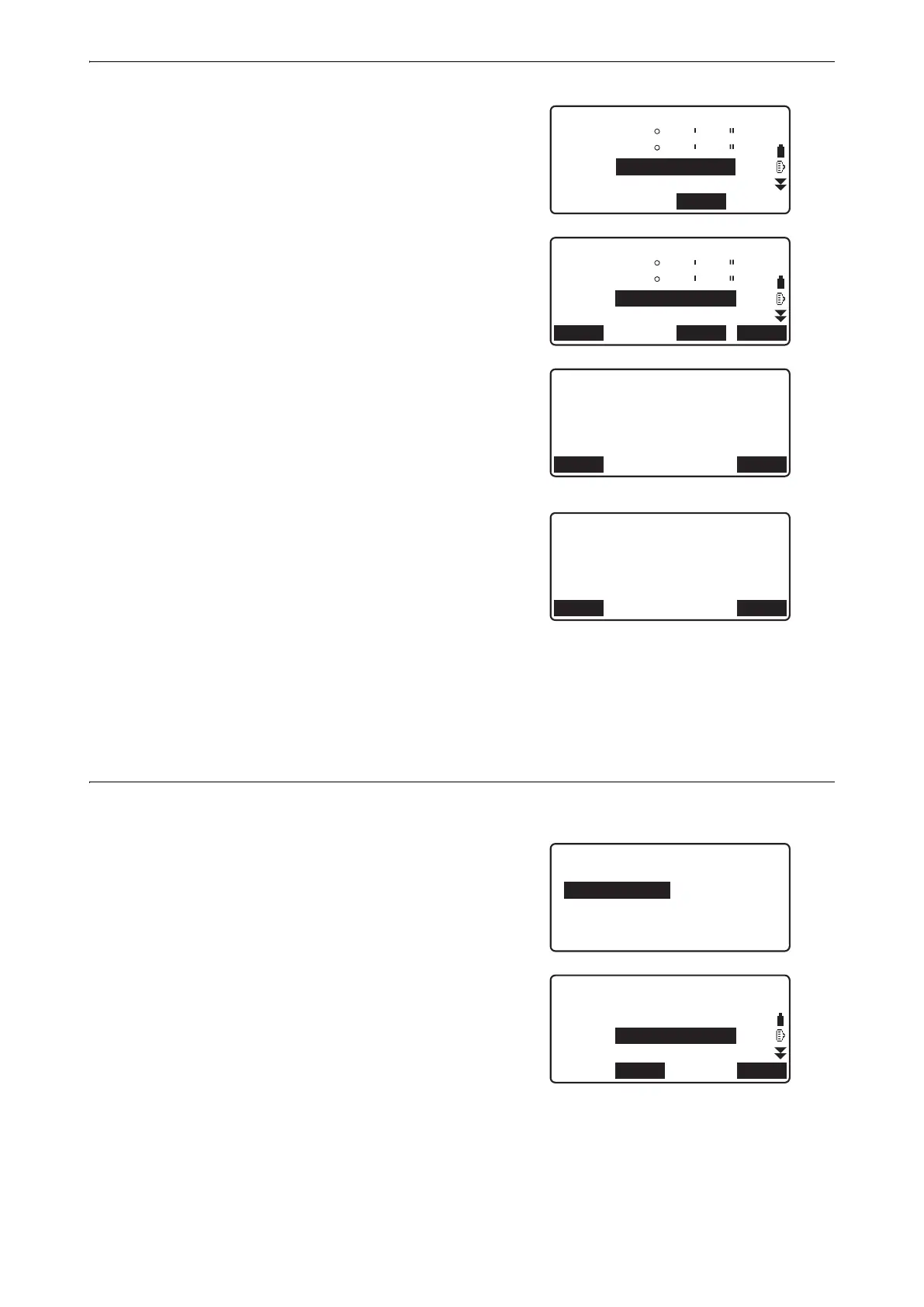

27. Point to Line MEASUREMENT
5. Measure the second target point in the same manner as the
first one.
Confirm the measured result and press [OK].
6. Confirm the measured result of the baseline defined from
the line between the first target point and the second one.
Pressing [OK] sets the instrument's point coordinates and
angle.
Continue with the measurement of Point to Line.
• Pressing [S.CO] displays the instrument point coordinates
defined from the measurement results of the first target
point and the second one.
Pressing [OK] conducts measurement of Point to Line.
• Pressing [REC] records the coordinates for the instrument
point as known point data in the current JOB. The
instrument's station coordinates and height cannot be
changed at this time.
PROCEDURE Point to Line Measurement
1. Press "Point to line" on the second page of the OBS mode.
2. Select "Point to line".
3. Collimate the target point and press [MEAS]. The
measured result is displayed.
1004
Measure 2nd PT
ZA
HA-R
HR
PT
45
178
12
56
34
31
MEAS
2.000m
1004
HR
PT
45
178
12
56
34
31
MEAS OKREC
2.000m
5.123m
SD
ZA
HA-R
HD
OKS.CO
0.123m
VD
-0.003m
SD
0.156m
Baseline pt1-pt2
OKREC
20.000
30.000
40.000
N0:
E0:
Z0:
2.000mHI
Point to line
Define baseline
Point to line
MEASS.CO
N
E
Z
HR
PT
2.500 m
1001
