12. DISTANCE MEASUREMENT

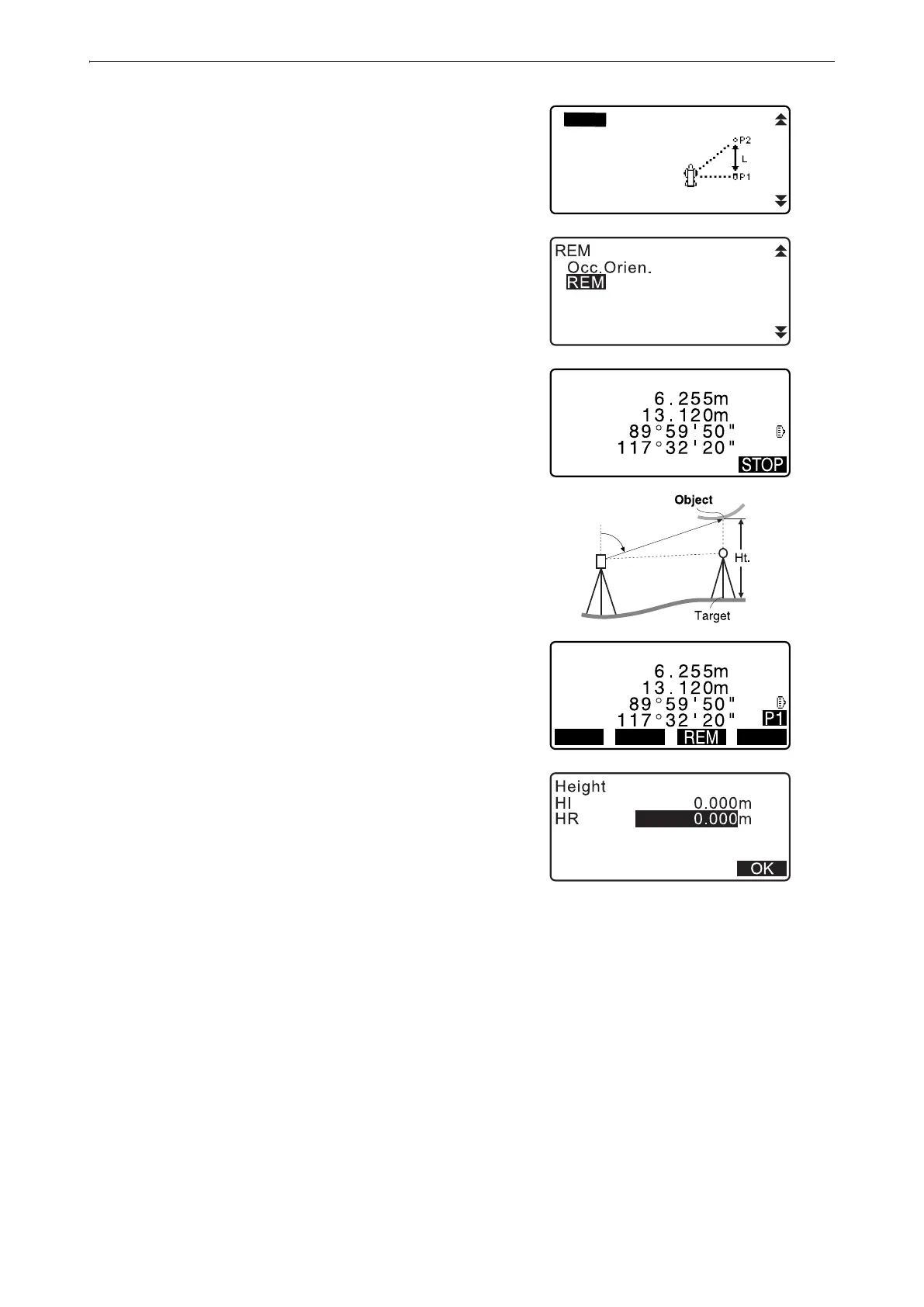

3. In the second page of OBS mode screen, press [MENU],
then select "REM".
4. Enter into the REM menu. Select "REM."
5. Sight the target.
Pressing [REM] starts REM measurement.
The height from the ground to the object is displayed in
“Ht.”.
6. Press [STOP] to terminate the measurement operation.
• To re-observe the target, sight the target, then press
[MEAS].
• Press [HT] to enter an instrument height (HI) and a target
height (HR).
• When [REC] is pressed, REM data is saved.
"28. RECORDING DATA - TOPO MENU -"
• Press [HT/Z] on the second page of the REM
measurement to display the Z coordinate for the height
from the ground to the target. Pressing [HT/Z] again returns
to the height display.
7. Press {ESC} to finish measurement and return to the OBS
mode screen.

• It is also possible to perform REM measurement by pressing [REM] when allocated to the OBS mode screen.
"33.12 Allocating Key Functions"
• Inputting instrument and target height: Press [HT] to set instrument and target height. It can be set also in
“Occ. Orientation” of coordinate measurement.
"13.1 Entering Instrument Station Data and Azimuth Angle"
