13. COORDINATE MEASUREMENT

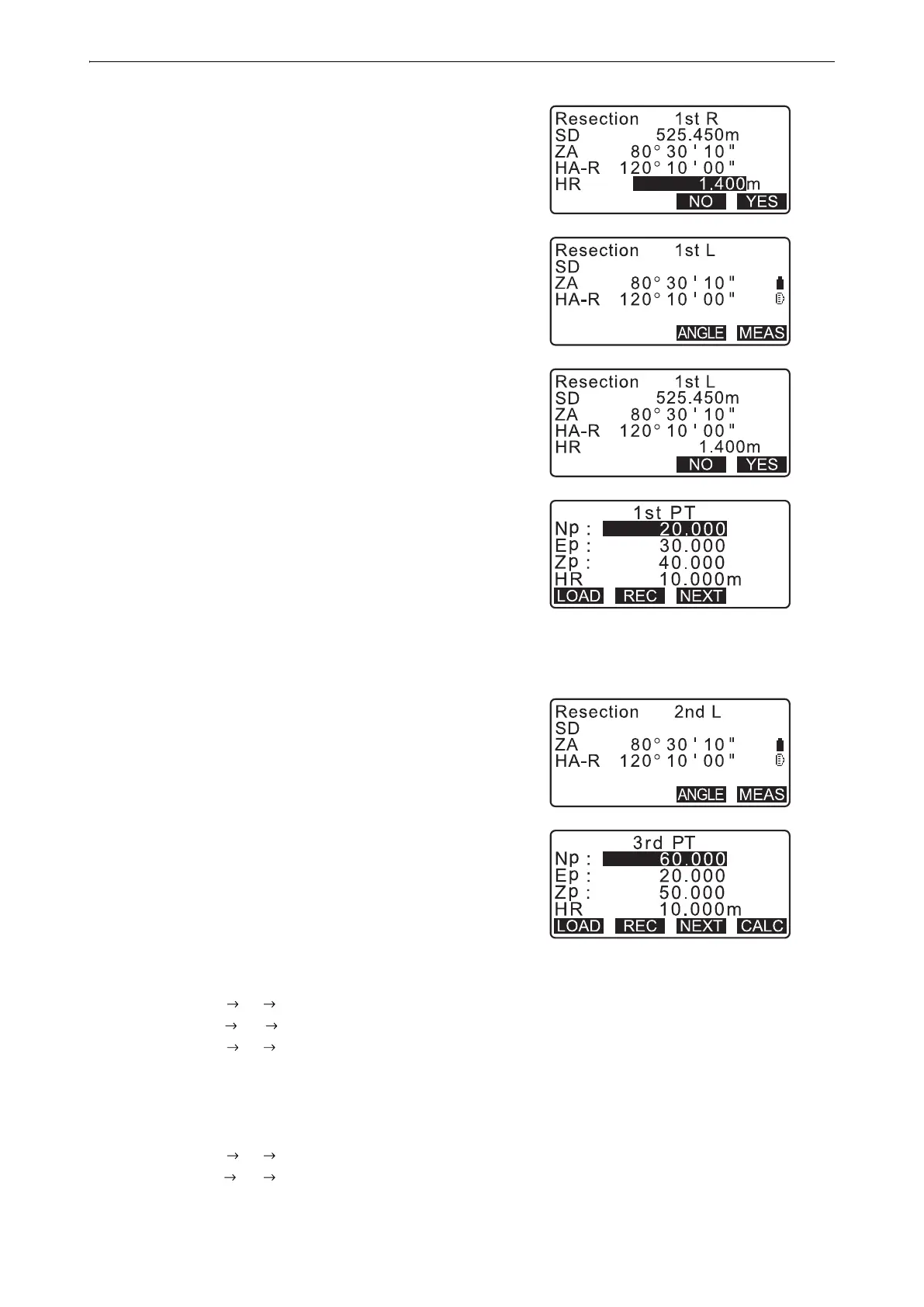

5. Press [Yes] to use the measurement results of the first
known point in Face 1.
• You can input target height here.
6. Measure the first known point in Face 2.
"L" is displayed in the screen title.
Press [MEAS] to start measuring. The measurement results
are displayed on the screen.
7. Press [Yes] to use the measurement results of the first
known point in Face 2.
8. Input coordinates for the first known point and press [NEXT]
to move to the second point.
• When [LOAD] is pressed, registered coordinates can be
recalled and used.
"13.1 Entering Instrument Station Data and Azimuth
Angle PROCEDURE Reading in Registered
Coordinate Data"
• Press {ESC} to return to the previous known point.
9. Repeat steps 4 to 8 in the same way from the second point.
When the minimum quantity of observation data required for
the calculation is present, [CALC] is displayed.
Perform the following procedure referring " 13.2.2
Coordinate Resection Measurement" steps 8 to 12.
• Order of RL observation in resection measurement is as follows:
(1) 1st point (R1 L1 coordinates input)
(2) 2nd point (L2 R2 coordinates input)
(3) 1st point (R3 L3 coordinates input)
.
.
When re-observe the 1st point, the order is as follows:
(1) 1st point (R1 L1 press {ESC} to cancel the result)
(2) 1st point (L1 R1 coordinates input)
