Bluetooth Module Configuration
P/N 7010-0557 www.topconpositioning.com
2-39
4. From the drop-down list in the upper left corner, select the
computer serial port (usually COM1) used for communication
(Figure 2-33).

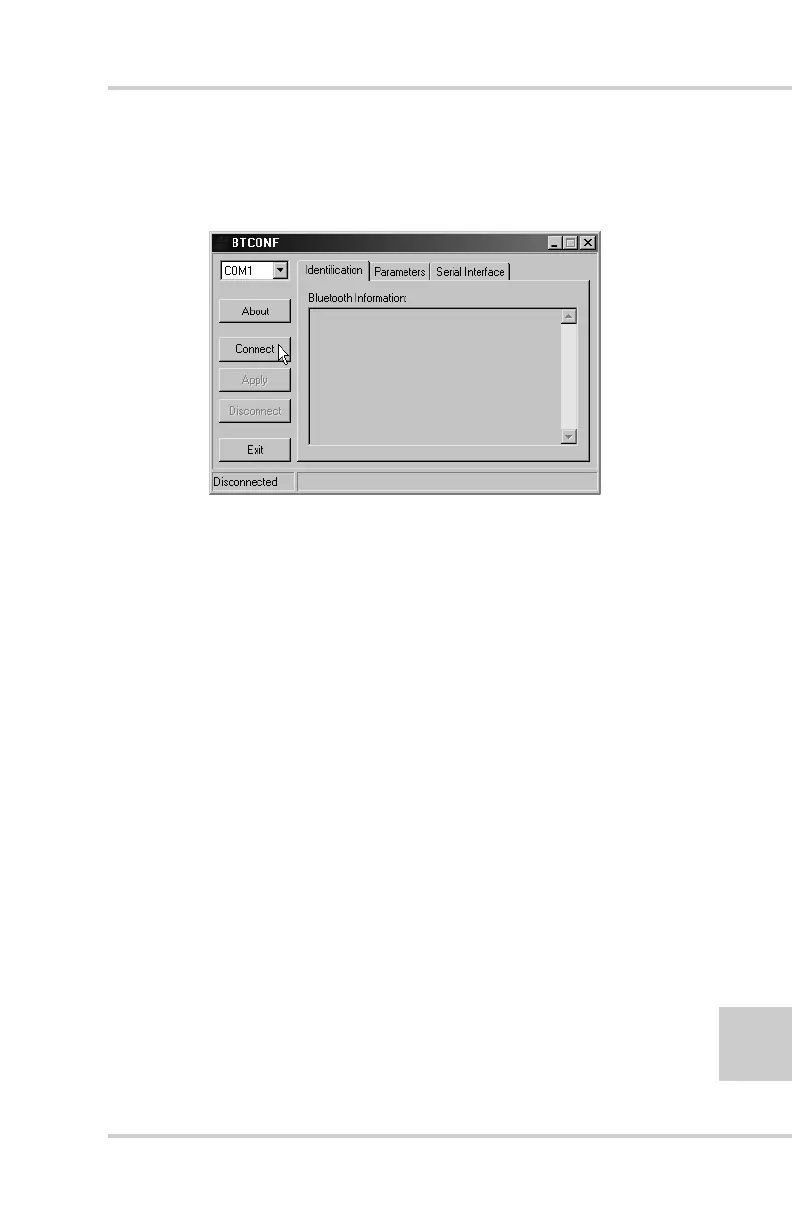

Figure 2-33. Select Communication Port and Click Connect
5. Click Connect to connect the computer and Bluetooth module
(Figure 2-33).
Once the receiver and computer connect through BTCONF, the
Identification tab (Figure 2-34 on page 2-40) displays the
following information:
• Bluetooth name – the name of the Bluetooth module, set in
the Parameters tab.
• Bluetooth address – the unique electronic address for your
Bluetooth module.
• Firmware version – the current firmware version of the
Bluetooth module.
