Topcon HiPer VR - Getting Acquainted with the Receiver

Receiver Enclosure—Overview
2-1
P/N: 1023998-01
Getting Acquainted
The HiPer VR receiver enclosure is fully sealed and may incorporate a GNSS receiver board, multiple
modems, multiple antennas, a battery, memory storage, and wireless communication modules that are
enclosed in a rugged housing.
Receiver Enclosure—Overview
Currently there are two (2) versions of the HiPer VR receiver:
1. A HiPer VR GNSS receiver without UHF and FH915 modems (P/N 1016578-17). The upper part of
the receiver includes both GNSS and Bluetooth antennas. The upper part of the receiver is covered
by a Radome and is securely surrounded by a shock absorbing rubber bumper
(Figure 2-1).

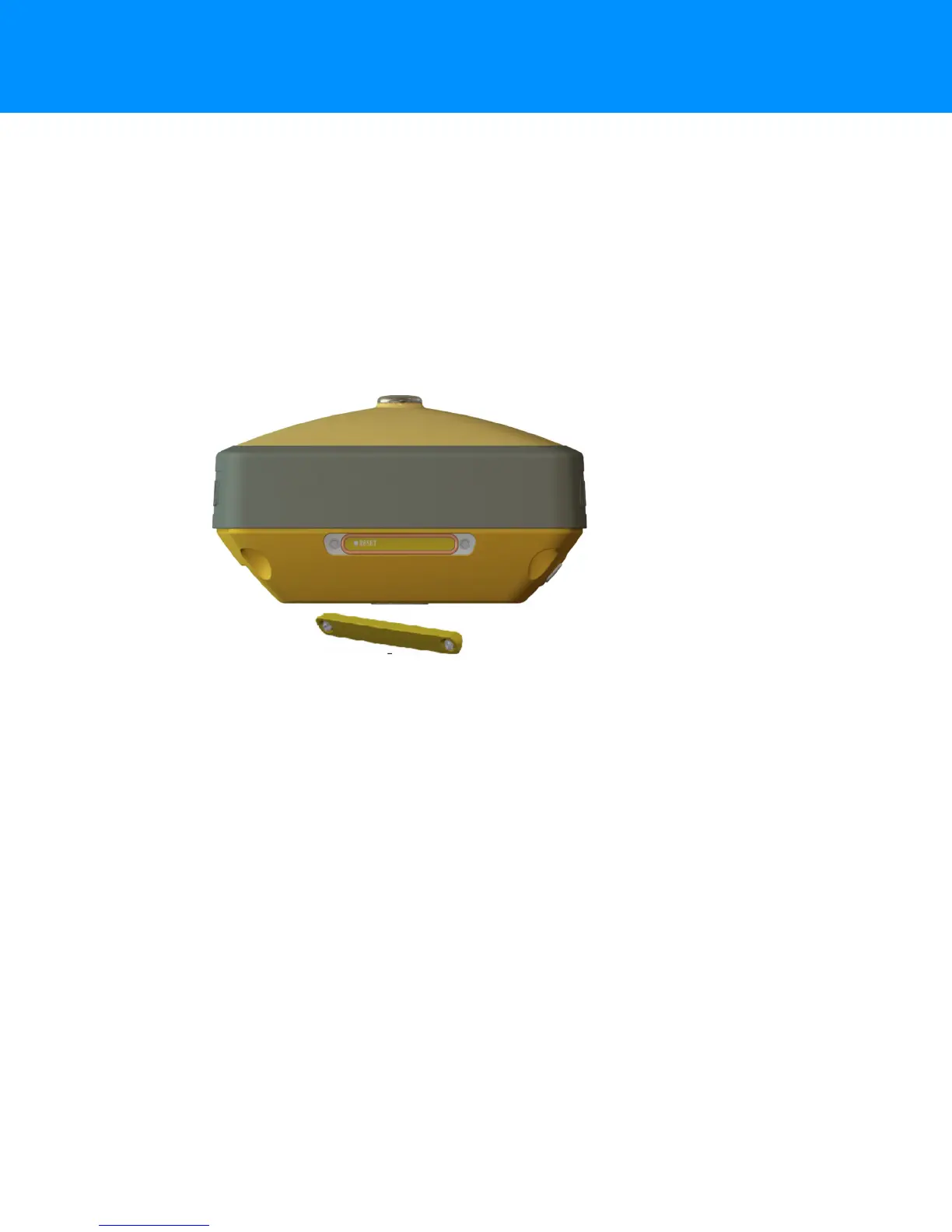

Figure 2-1: HiPer VR Without UHF and FH915 Modems
HiPer VR GNSS Receiver
without
UHF/FH915 Modems
