Topcon HiPer VR User Manual

Option Authorization Files
5-6
P/N: 1023998-01
Configuration
5. Click the Options icon in the main screen. The Receiver Options window
(Figure 5-5) displays, so you can view the current authorization options and upload new ones.

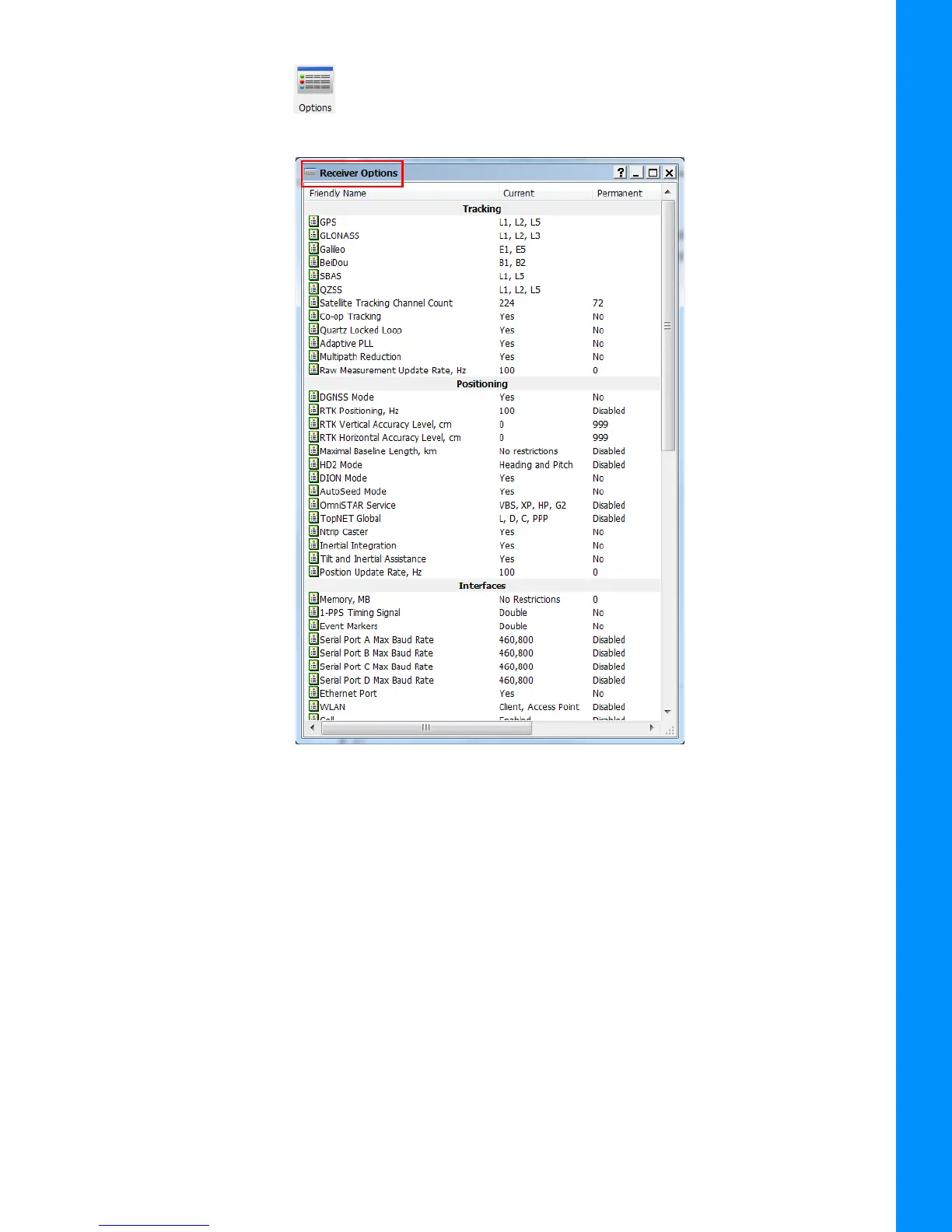

Figure 5-5: Receiver Options
Loading an OAF
Topcon dealers provide customers with OAF files. For any OAF related questions, e-mail Topcon at
options@topcon.com and include the receiver’s ID and serial number. To obtain these numbers, see
“Getting Technical Support”.
1. Follow the steps in “Checking the Receiver’s OAF” shown above.

Topcon HiPer VR Specifications

General

Battery Life	Up to 10 hours
Ingress Protection	IP67
Internal Memory	8 GB
Signal Tracking	GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Static Accuracy Horizontal	3 mm + 0.1 ppm
Static Accuracy Vertical	5 mm + 0.5 ppm
Communication	Bluetooth, Wi-Fi
Operating Temperature	-40°C to +65°C
Update Rate	20 Hz
