Topcon HiPer VR User Manual

Communication LEDs
3-6
P/N: 1023998-01
Display Panel
Radio LED
The Radio LED displays the status of the UHF or FH915 modem.

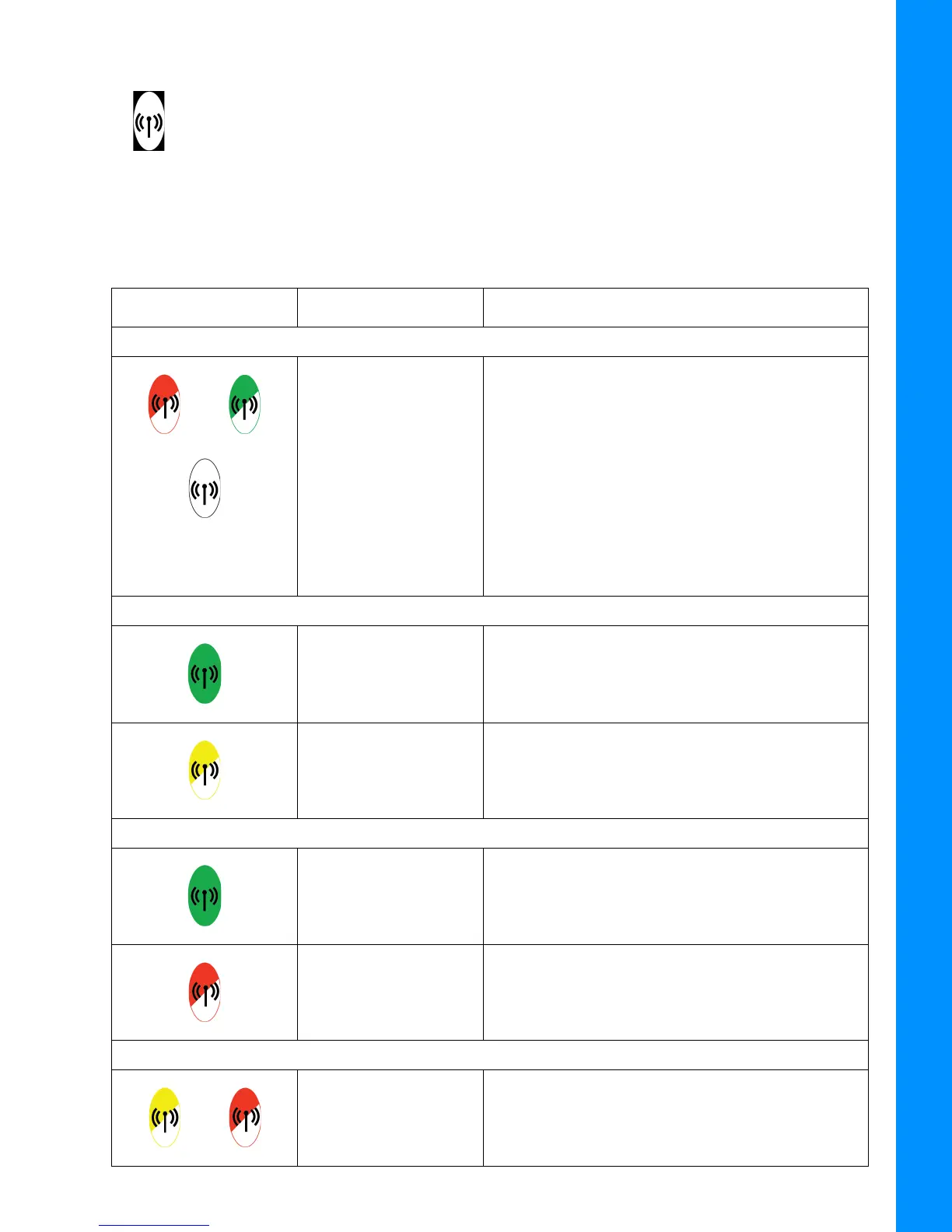

Table 3-6 describes the LED colors and patterns for the UHF modem.
Table 3-6. UHF Modem LED Descriptions
Display LED Color Description
Command mode (Rover and Base)
Red Blink - Green
Blink - No Light
MAGNET Field or TRU sends commands to
configure the modem.
Receiver mode (Rover)
Green Solid Modem is not receiving correction data.
Yellow Blink Modem is receiving correction data from a base.
Transmitter mode (Base)
Green Solid Modem is not transmitting correction data.
Red Blink Modem is transmitting correction data.
Retranslator mode (Base)
Yellow Blink - Red
Blink
Modem is receiving and transmitting correction
data.

Topcon HiPer VR Specifications

General

Battery Life	Up to 10 hours
Ingress Protection	IP67
Internal Memory	8 GB
Signal Tracking	GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Static Accuracy Horizontal	3 mm + 0.1 ppm
Static Accuracy Vertical	5 mm + 0.5 ppm
Communication	Bluetooth, Wi-Fi
Operating Temperature	-40°C to +65°C
Update Rate	20 Hz
