Connector Specifications
9-10
P/N: 1023998-01
Micro-USB Connector

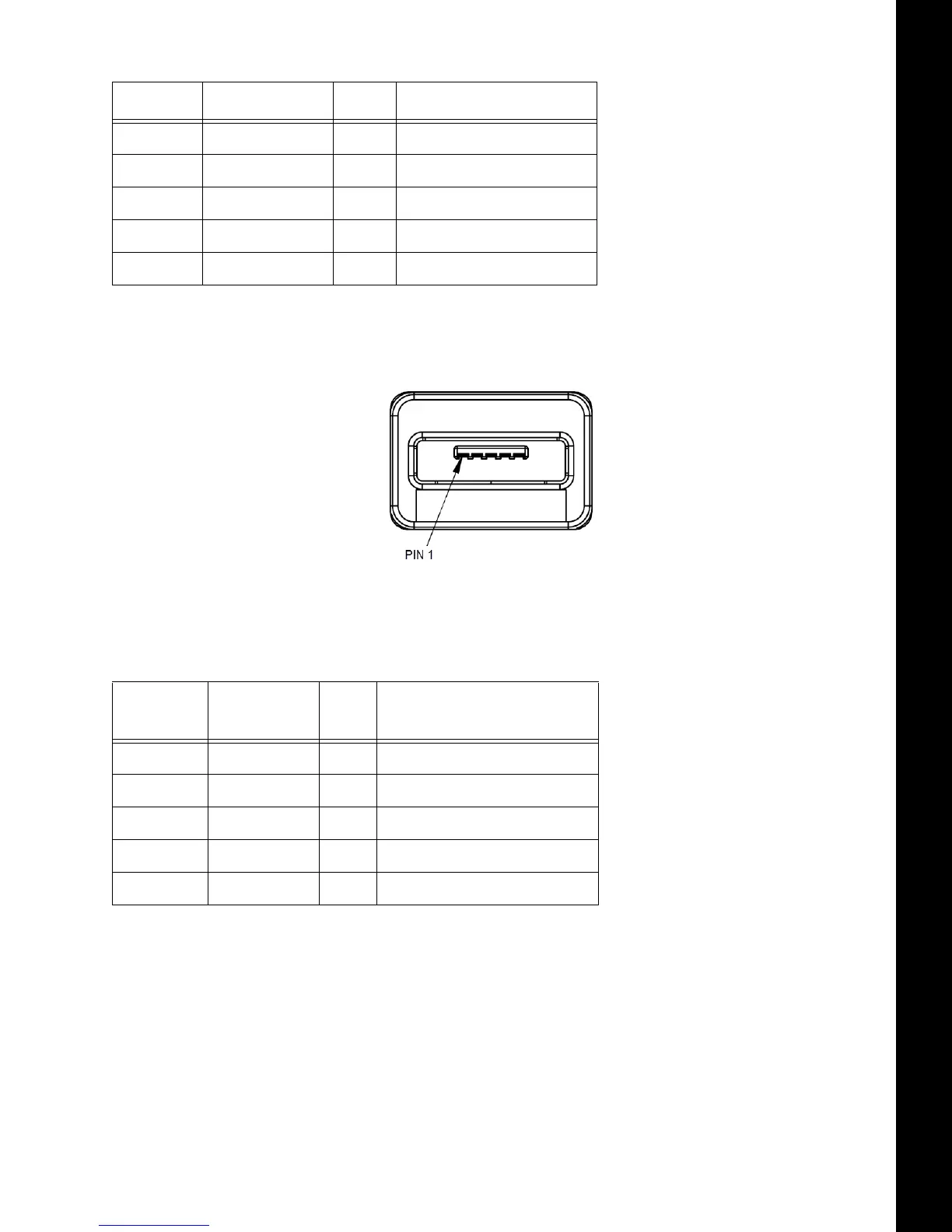

The micro-USB connector is a standard 5-pin, micro-USB, A/B connector (Figure 9-3).
Figure 9-3: USB Connector for GGD Options
Table 9-8 describes the micro-USB connector specifications.
3 CTS I Clear to send
4 RTS O Request to send
5 RXD I Receive data
6 TXD O Transmit data
7 PPS O 1-PPS
Table 9-7. RS-232 Connector Specifications (Continued)
Number Signal Name Dir Details
Table 9-8. Micro-USB Specifications
Number
Signal
Name
Dir Details
1 USB_PWR P Bus power input
2 USB D- I/O Data minus
3 USB D+ I/O Data plus
4 ID I USB ID
5 GND P Ground

Topcon HiPer VR Specifications

General

Battery Life	Up to 10 hours
Ingress Protection	IP67
Internal Memory	8 GB
Signal Tracking	GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Static Accuracy Horizontal	3 mm + 0.1 ppm
Static Accuracy Vertical	5 mm + 0.5 ppm
Communication	Bluetooth, Wi-Fi
Operating Temperature	-40°C to +65°C
Update Rate	20 Hz
