Receiver Enclosure—Overview
2-2
P/N: 1023998-01
Getting Acquainted
2. A HiPer VR GNSS receiver with UHF (P/N 1016578-13) or FH915 (P/N 1016578-14) modems.
The upper part of the receiver includes GNSS and Bluetooth antennas. The upper part of the
receiver is covered by a radome and is securely surrounded by a shock absorbing rubber bumper.

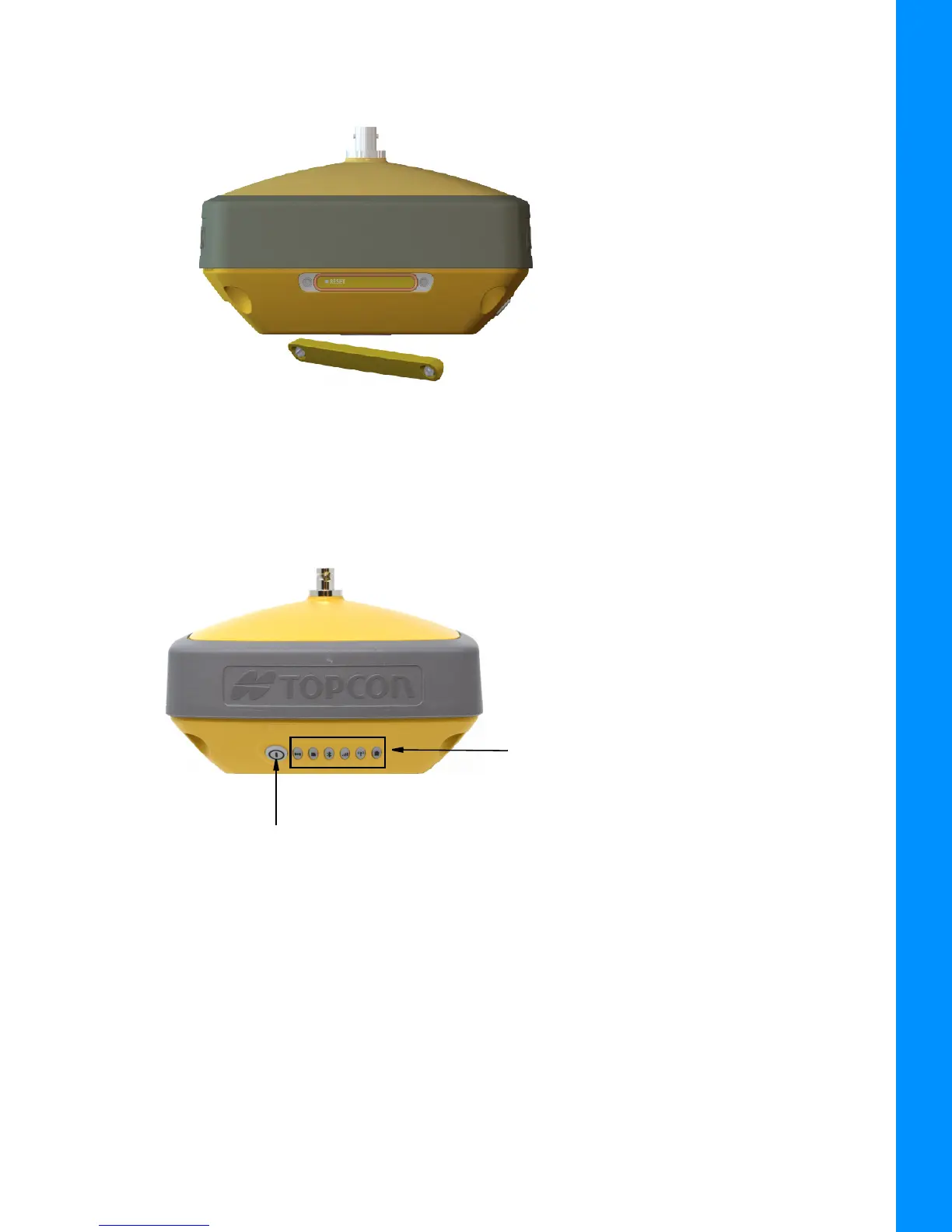

Figure 2-2: HiPer VR With UHF and FH915 Modems
Receiver Enclosure—Display Panel
The receiver’s lower part is made of a magnesium alloy and contains a Display Panel.
Figure 2-3: Lower Part of Receiver—Display Panel
The Display Panel enables you to view the receiver’s operational status. For more information about
the Display Panel’s operational status see the
“Display Panel” chapter.
HiPer VR GNSS Receiver with
UHF/FH915 Modems
Display Panel
Power Button
