Topcon HiPer VR - Internal Battery and External Connectors

Battery
2-8
P/N: 1023998-01
Getting Acquainted
Battery
The receiver has an internal, non-removable, rechargeable battery. The internal battery has two
battery cells (packs). For more information about using the battery see
“Managing Power” chapter.

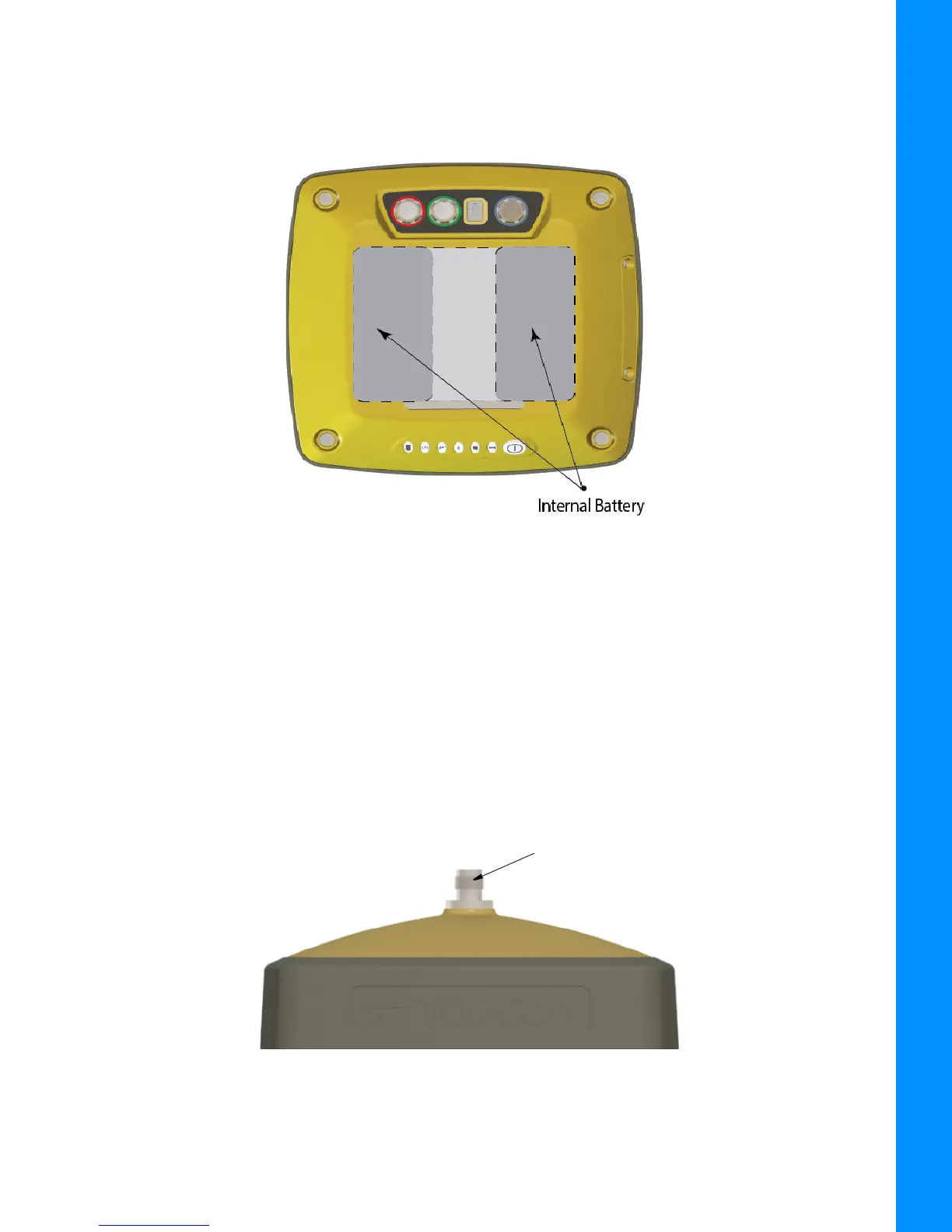

Figure 2-8: HiPer VR Internal Battery
External Connectors
The HiPer VR has the following external connectors.
Receiver Enclosure Top—Connectors
• Radio Modem Antenna Connector—The radio antenna of the FH915 radio modem or the UHF
radio modem plugs to the external antenna connector on the HiPer VR radome. The radio
antenna uses a reverse polarity TNC or BNC connection depending on the installed radio
modem. For additional Specification information see
Table 9-3.
Figure 2-9: A Reverse Polarity TNC Connector is Used for the FH915 Radio Modem
(Two Battery Cells/Packs–Bottom View)
TNC Connector
