Topcon HiPer VR User Manual

Specifications
Connector Specifications
9-9
P/N: 1023998-01
Power Connector

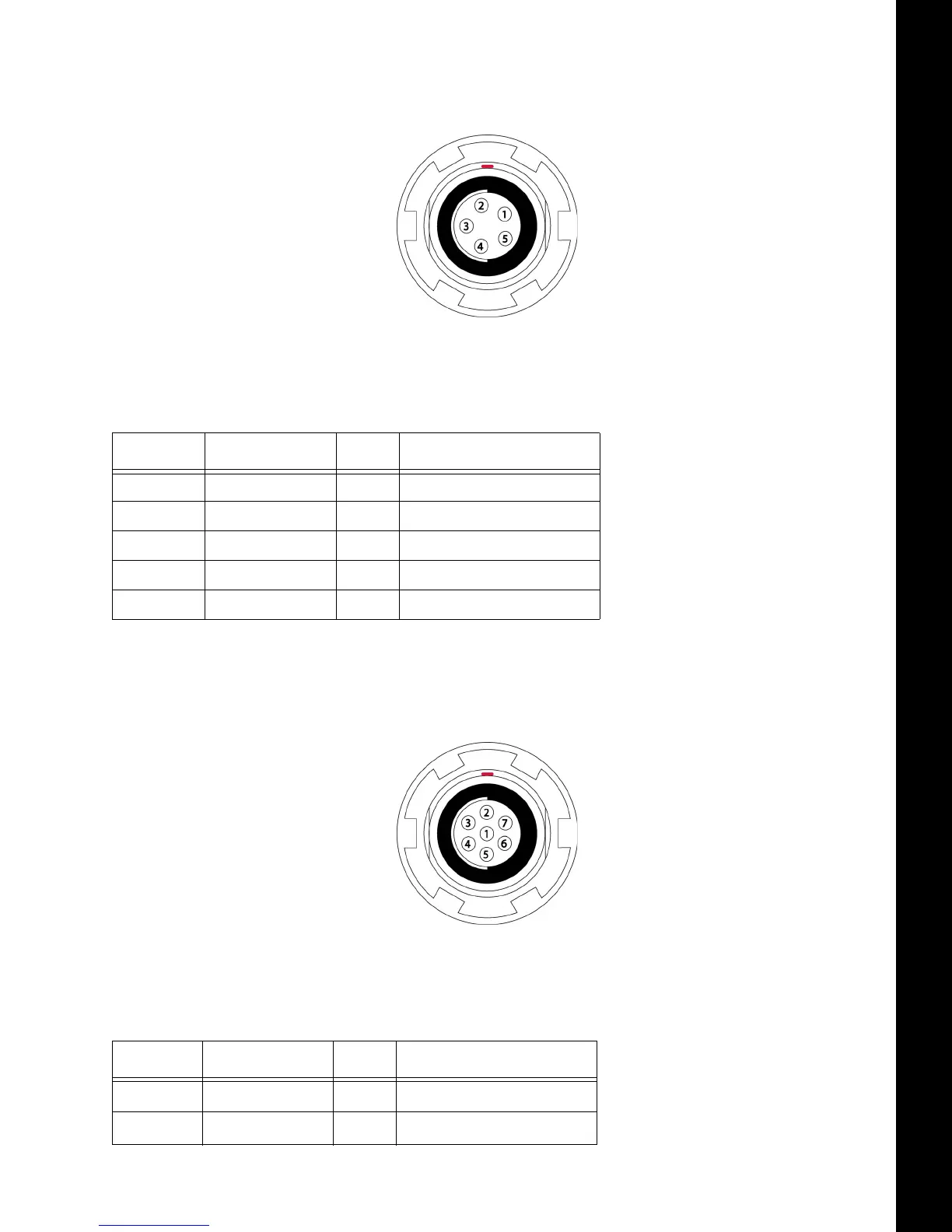

The power connector (Figure 9-1) is a sealed receptacle, 5 pin, ODU (P/N G80F1C-T05QF00-0000).
Figure 9-1: Power Connector
Table 9-6 describes power connector specifications.
Serial RS-232 Connector
The Serial RS-232 connector (Figure 9-2) is a sealed receptacle, 7 pin, ODU (P/N G80F1C-T07QC00-
0000).
Figure 9-2: Serial C RS-232 Connector
Table 9-7 describes the RS232 cable connector specifications.
Table 9-6. Power Connector Specifications
Number Signal Name Dir Details
1 Power_INP P 9 – 27 volts DC input
2 Power_INP P 9 – 27 volts DC input
3 Power_GND P Ground, power return
4 Power_GND P Ground, power return
5 Aux_Power P 9 – 27 volts DC input
Table 9-7. RS-232 Connector Specifications
Number Signal Name Dir Details
1 Not used
2 GND - Signal ground

Topcon HiPer VR Specifications

General

Battery Life	Up to 10 hours
Ingress Protection	IP67
Internal Memory	8 GB
Signal Tracking	GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Static Accuracy Horizontal	3 mm + 0.1 ppm
Static Accuracy Vertical	5 mm + 0.5 ppm
Communication	Bluetooth, Wi-Fi
Operating Temperature	-40°C to +65°C
Update Rate	20 Hz
