Communication LEDs
3-5
P/N: 1023998-01
Display Panel
Communication LEDs
The communication LEDs display the status of the wireless activity. The following tables describe the
communication activity for two use cases: Bluetooth and Radio modems (UHF and FH915).
Bluetooth LED
The Bluetooth LED displays the status of the Bluetooth activity. Table 3-5 describes the activity.

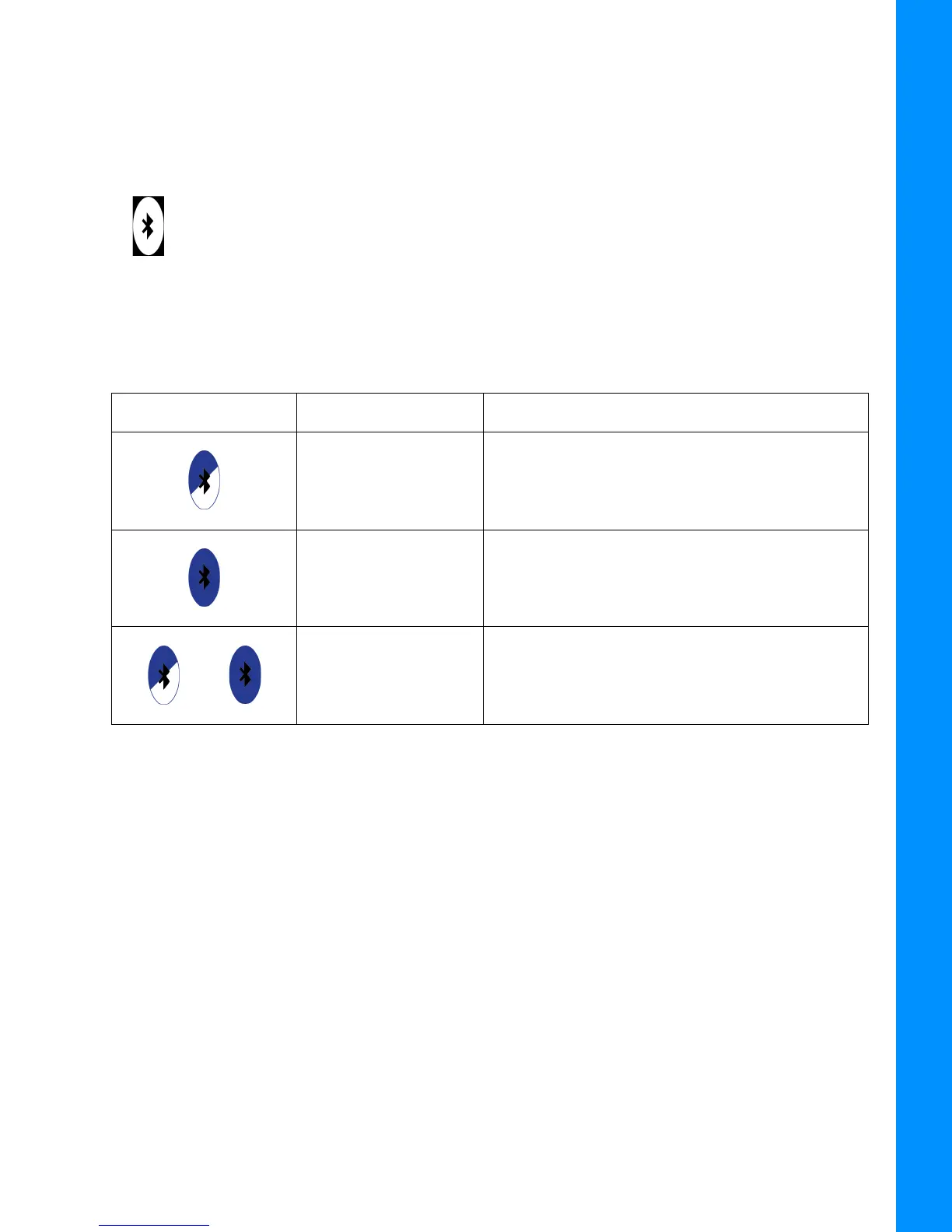

Table 3-5. Bluetooth LED Descriptions
Display LED Color Description
Blue Blink Bluetooth is on and waiting for a connection.
Blue Solid A single Bluetooth connection has been
established.
Blue Solid + Blue
Blink * N every 10
seconds
Multiple (N) valid Bluetooth connections have
been established.
