Topcon HiPer VR User Manual

Performing a Factory Reset
5-10
P/N: 1023998-01
Configuration
Perform a Factory Reset Using TRU
1. Connect the receiver to a computer.
2. Start TRU on your computer.
3. Click Device > Application Mode > Receiver Managing.
4. Click Device > Connect. The Connection Parameters screen appears.
5. Click the Connect button to establish a connection with the receiver.
6. Click the Tools icon in the main screen. The Tools window appears, enabling you to
reset the receiver and clear the NVRAM (Figure 5-11).

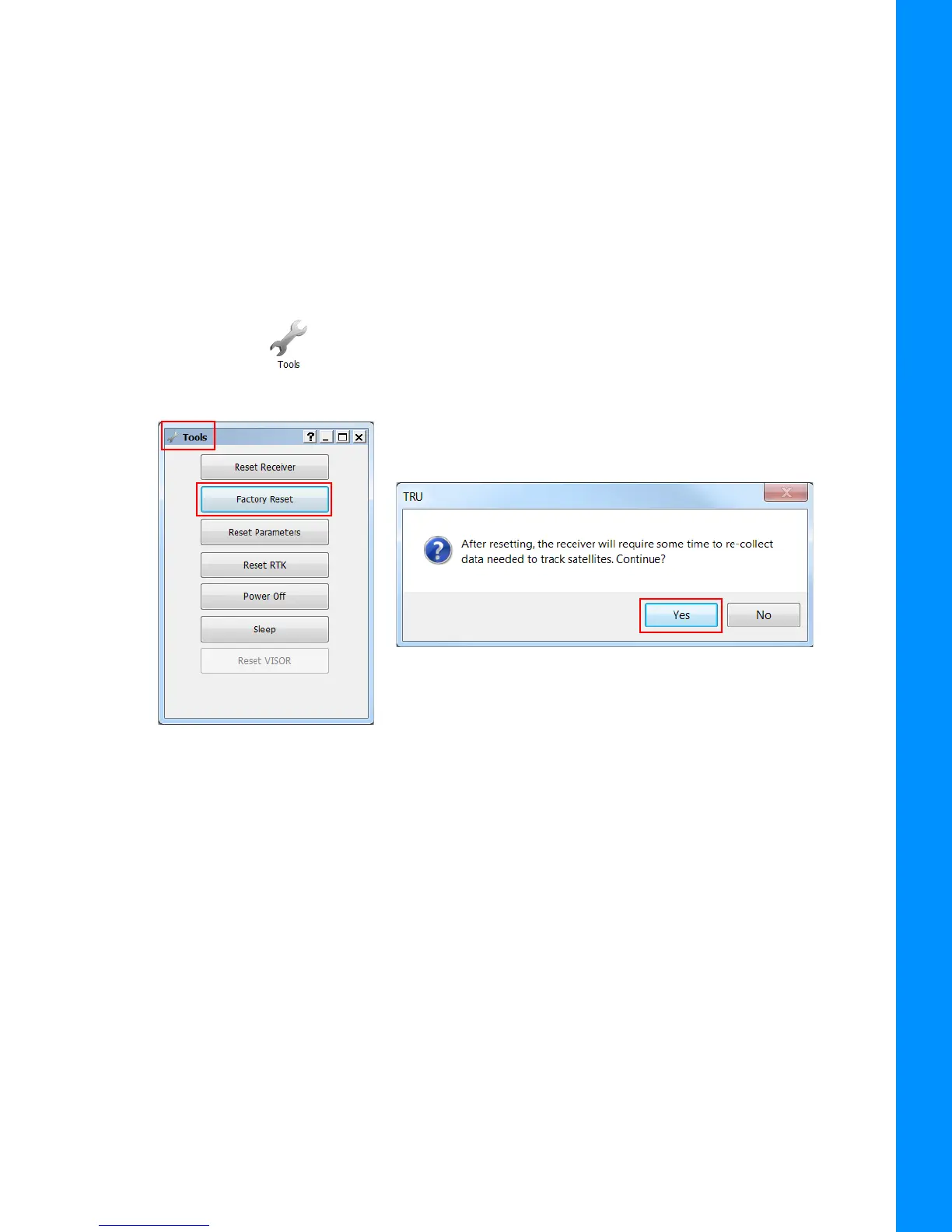

Figure 5-11: Tools Window
7. Click Factory Reset, then click Yes at the prompt.

Topcon HiPer VR Specifications

General

Battery Life	Up to 10 hours
Ingress Protection	IP67
Internal Memory	8 GB
Signal Tracking	GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Static Accuracy Horizontal	3 mm + 0.1 ppm
Static Accuracy Vertical	5 mm + 0.5 ppm
Communication	Bluetooth, Wi-Fi
Operating Temperature	-40°C to +65°C
Update Rate	20 Hz
