Cables
2-5
P/N: 1023998-01
Getting Acquainted
Cables
The HiPer VR
1
package includes a power supply cable, a USB cable, and a power adapter. Table 2-1
describes the cables included with your receiver—depending on your regional standard kit
configuration. Make sure to contact your local Topcon dealer to inquire about standard items included
in your receiver kit.
1. Components in the standard kit may differ based on your region. Contact your local Topcon dealer to inquire about
items included in your regional standard kit, and accessories that are available with the receiver.
Align the keyways when connecting the power/serial cable to the receiver
connectors. To disconnect the cable, push the cable in, and then gently remove the
cable.

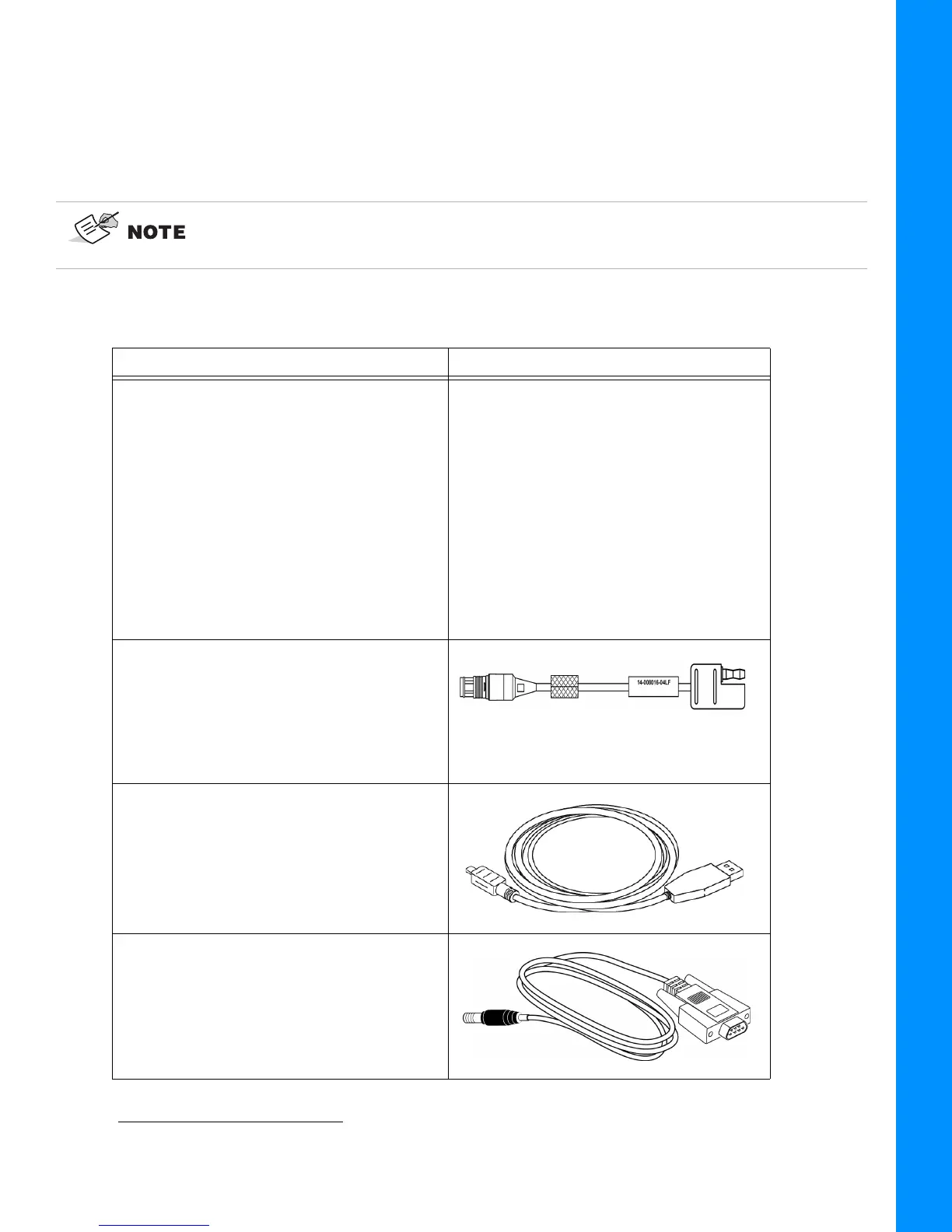

Table 2-1. Receiver Cables
Cable Description Cable Illustration
Power Charge Cable(s)
These two cables connect to the power
adapter to a grounded outlet. Several
options are available for the power charger
cable based on your country. To purchase
this cable, contact your Topcon dealer.
Refer to this part numbers:
P/N 1005793-01 - Cable, Power Charger
(US)
P/N 1005794-01 - Cable, Power Charger
(EUR)
See Figure 2-6 and Figure 2-7.
Receiver Power/Charging Cable
Connects the receiver and the power
supply unit via SAE connectors for battery
charging.
P/N 14-008016-04LF
Micro-USB Cable
Connects the receiver to an external device
(controller or computer) for data transfer
and receiver configuration.
P/N 1013602-01
Serial Cable
Connects the receiver to an external device
(controller or computer) for data transfer
and receiver configuration.
P/N 14-008005-03
