100

5 PROGRAM MODE

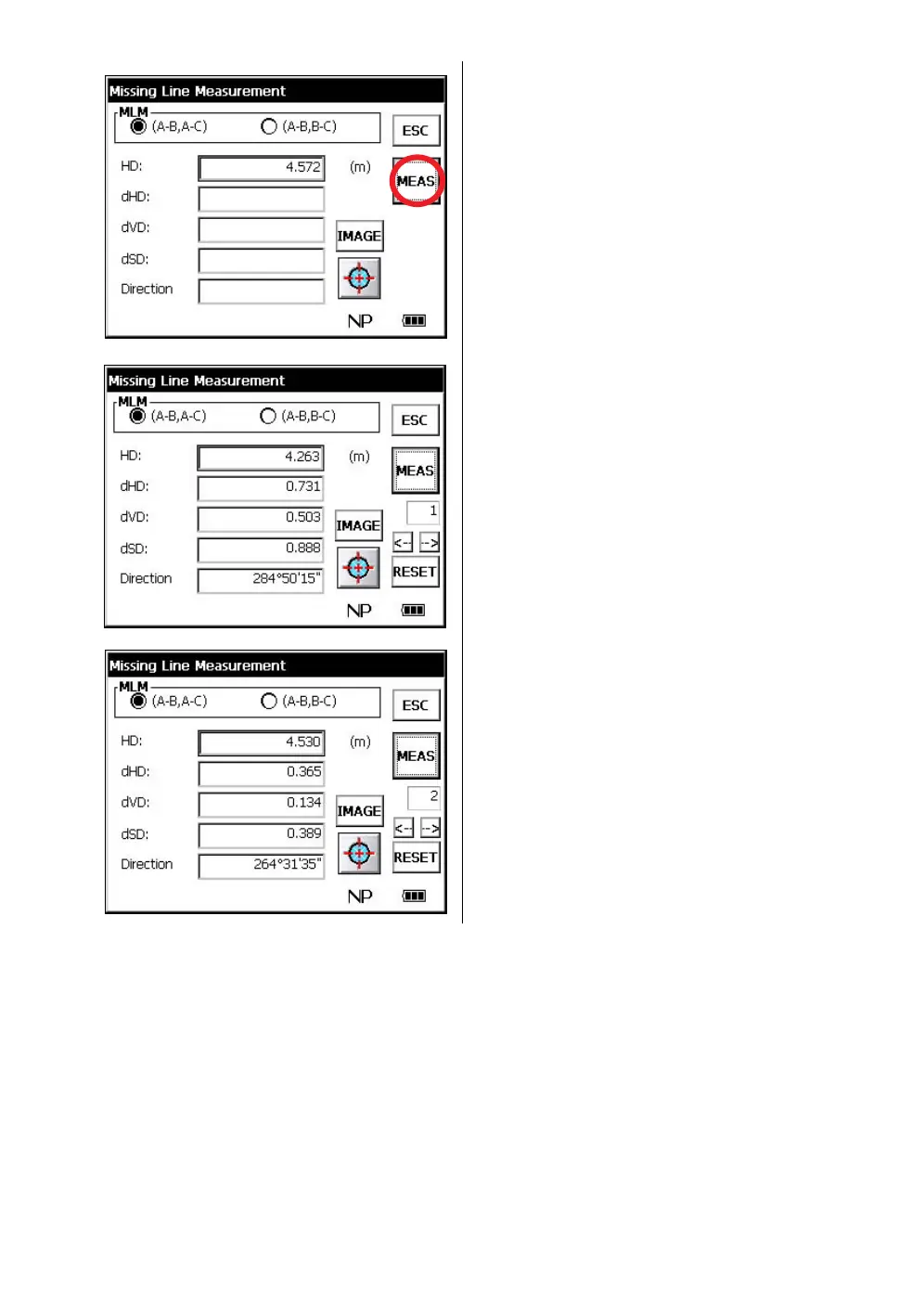

Collimate prism B, and press the [MEAS] key.

Horizontal distance between the instrument

and prism B will be shown.

And then, the horizontal distance (dHD),

relative elevation (dVD) and slope distance

(dSD) between prism A and B will be shown.

To measure the distance between points A and

C, repeat procedure

• To conﬁrm the previous data, press the [←] or [→] key.

• To clear all data, press the [RESET] key.
