4 STANDARD MEASUREMENT MODE
•
To select distance measurement mode
Confirm the distance measurement mode
4.3.7 Stake Out (S.O)
The difference between the measured distance and the distance preset is displayed.
The displayed value = Measured distance - Standard (Preset) distance
Stake out operation can be performed for horizontal distance (HD), relative elevation (VD) or slope
distance (SD).
1
Collimate the center of prism.
2
Press the [MODE] key.
3

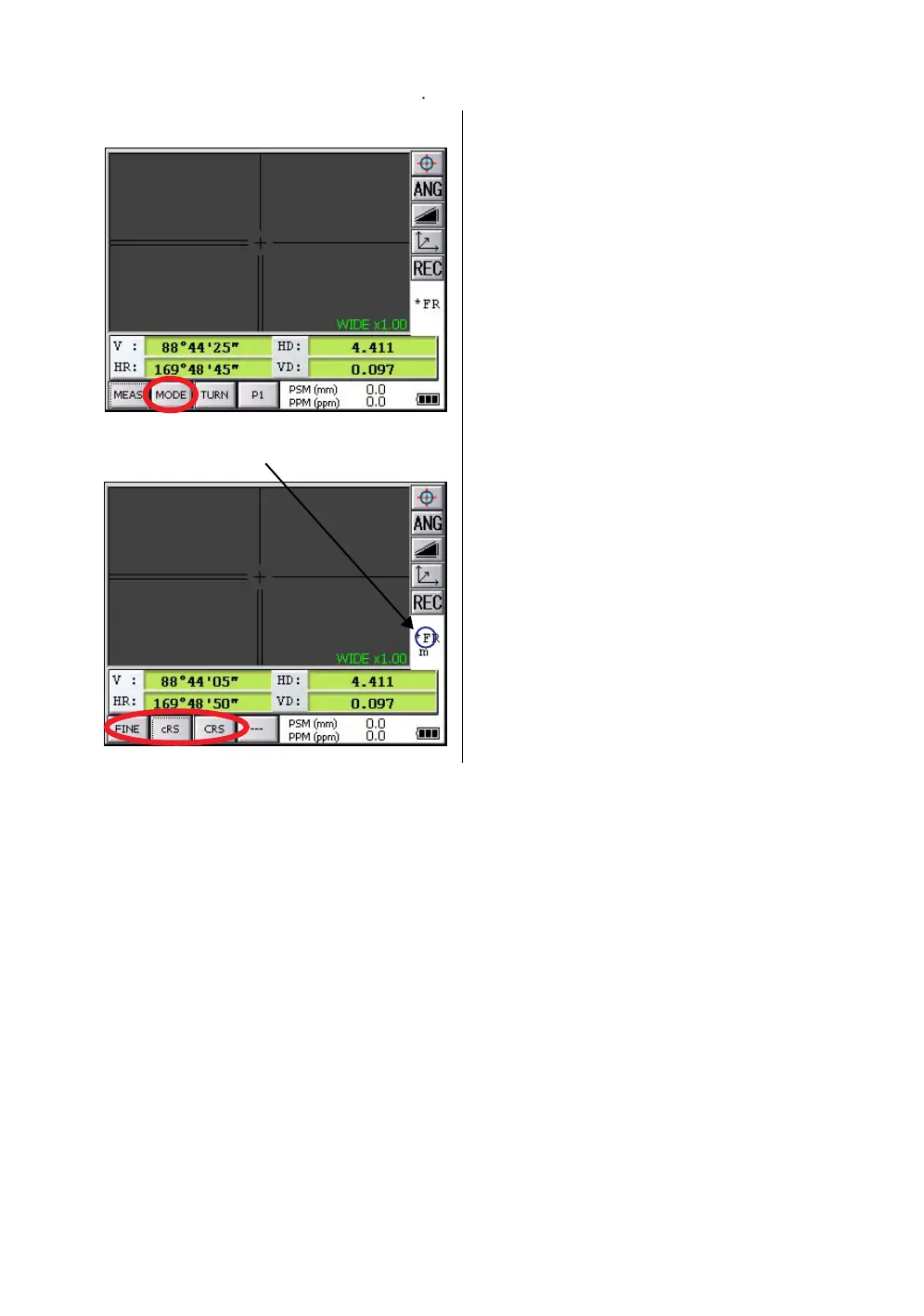

Select the measurement mode by pressing the
[FINE], [cRS] or [CRS] key. *2)
The mode is set and distance measuring mode
reappears.
*1)The following characters will be shown on the 4th line right hand of the display to represent measurement
mode.
F=Fine; C=Coarse [cRS]; c=Coarse 10mm [CRS]
*2)To cancel the setting, press the [ESC] key.
The first letter of the current mode is displayed.*1)
To Next Page
