132

7 CHECK AND ADJUSTMENT

7.5.2 Showing Compensation Systematic Error of Instrument

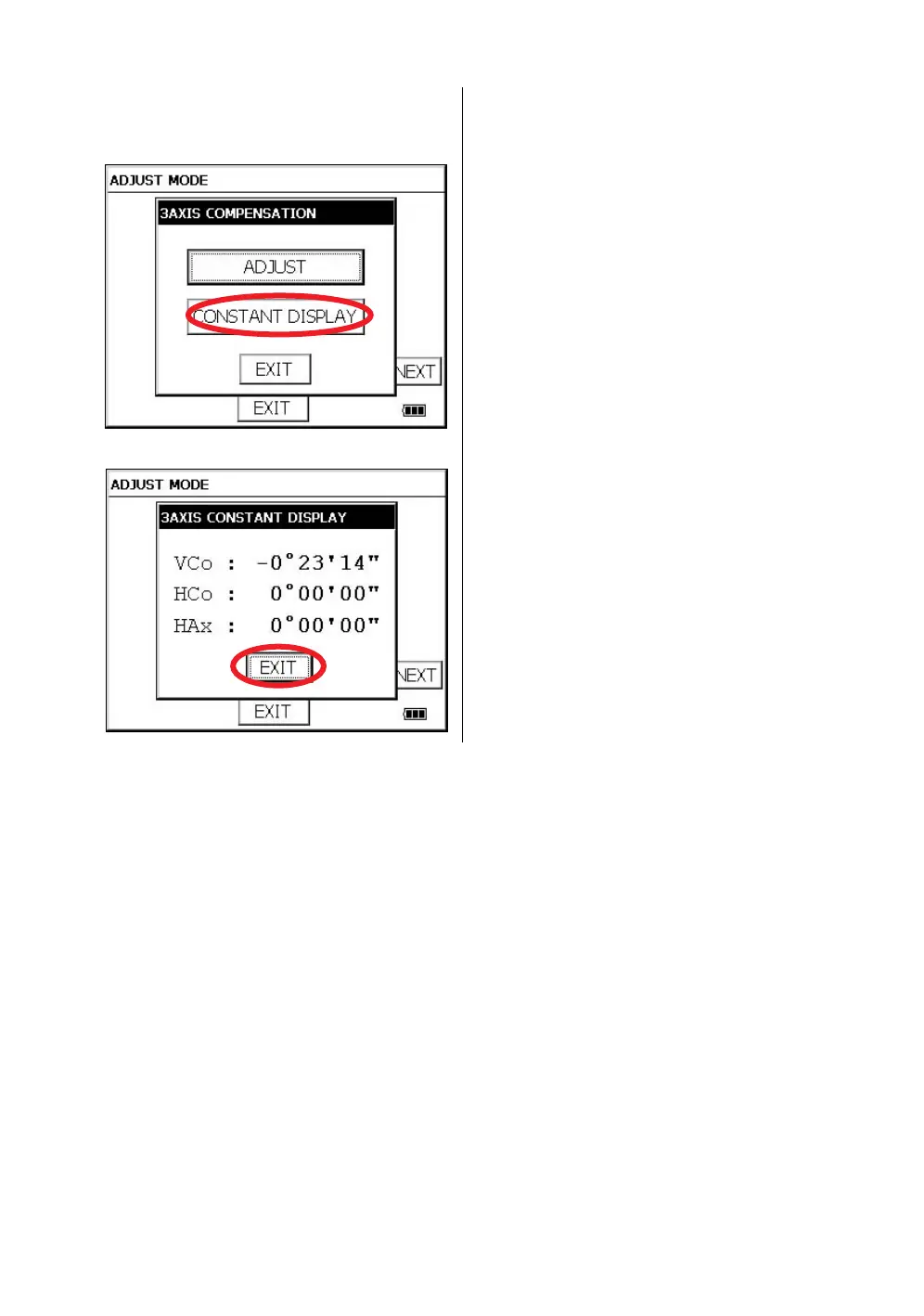

Press the [ADJUST] icon from the main menu.

Press the [3AXIS COMPENSATION] key.

Press the [CONSTANT DISPLAY] key.

Press the [EXIT] key.

The display returns to previous menu.
