2 PREPARATION FOR MEASUREMENT

2.3 Power Switch Key ON

• Conﬁrm the battery power remaining on the display. Replace with charged battery or charge when

battery level is low. see section 2.4“Battery Power Remaining Display” .

Conﬁrm the instrument is leveled.

Tu rn the power switch ON.

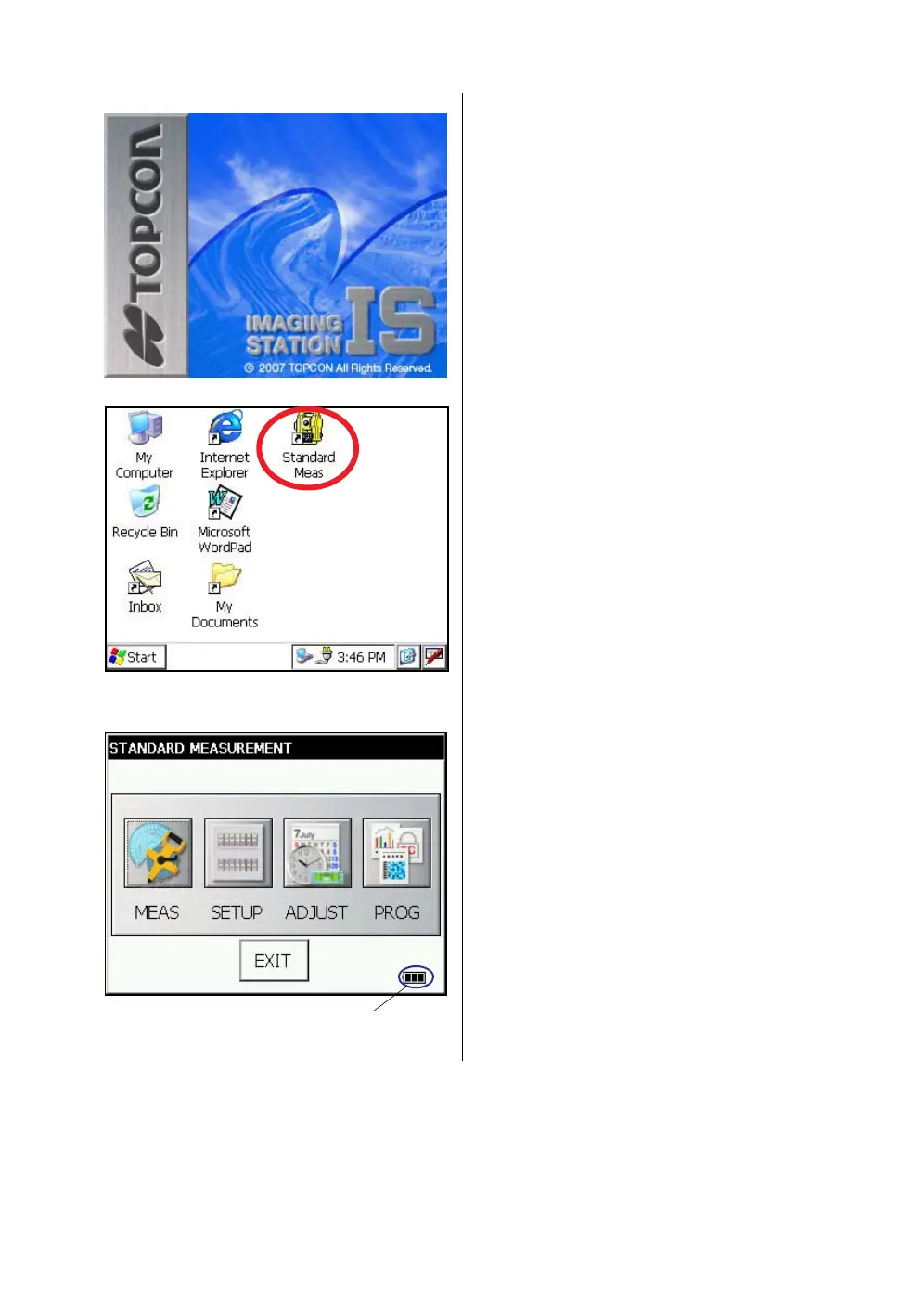

Progress bar will be displayed during reloading

the Operating System, after you turn the

instrument on at the ﬁrst time or perform

hardware reset.

You will see the Desktop display of Windows CE

with “Standard Meas.” icon.

Press the “Standard Meas.” icon.

The main menu will be displayed.

Main menu

Battery Power Remaining Display
