4 STANDARD MEASUREMENT MODE

4.2.4 Vertical Angle Percent Grade(%) Mode

Make sure the mode is angle measurement

Press the [P1] key to get on the page 2.

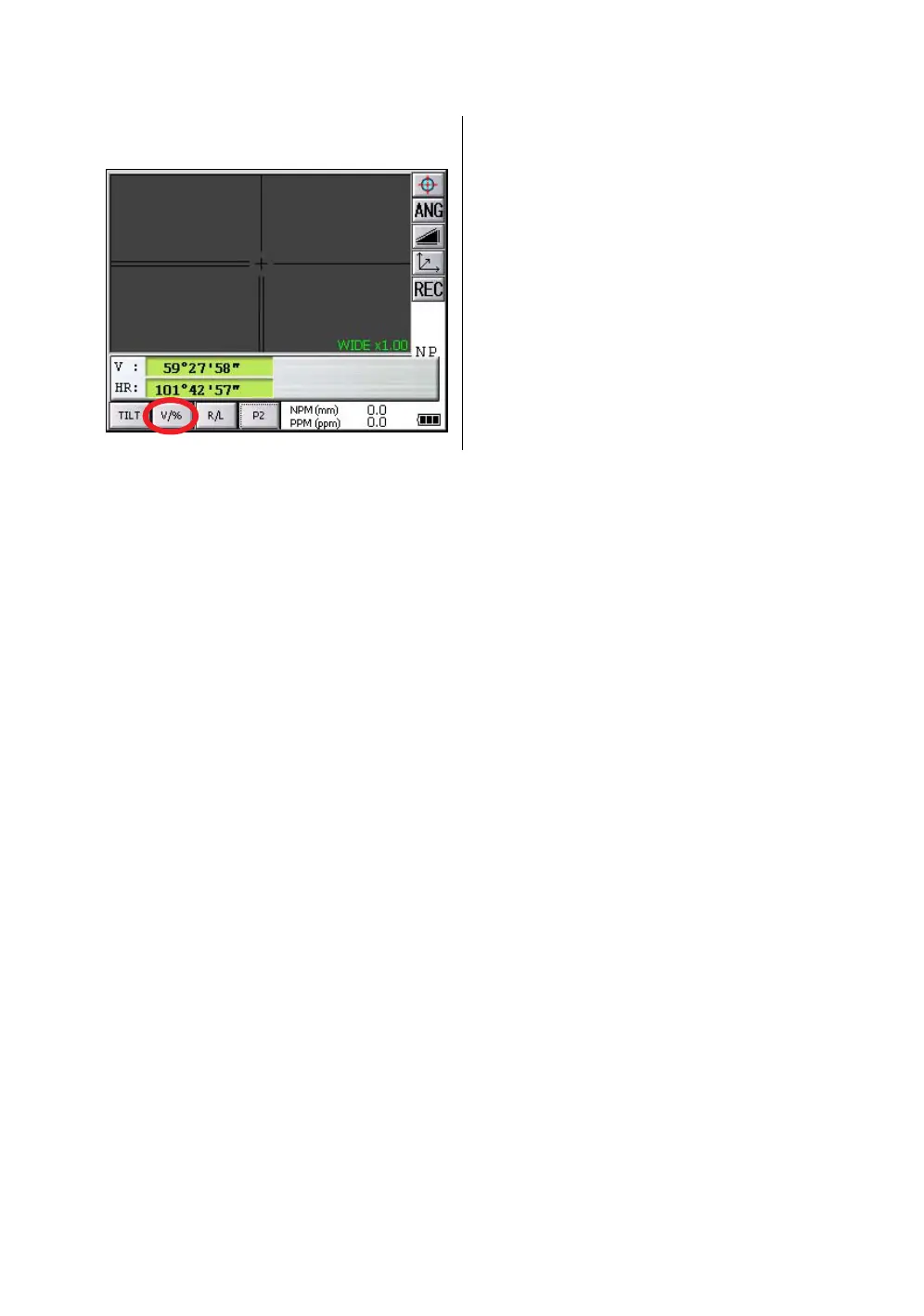

Press the [V/%] key. *1)

*1) Every time pressing the [V/%] key, the display mode switches.
