105

5 PROGRAM MODE

5.6 Edge Abstraction Mode

In this mode, the edges of structures and other objects whose distance cannot be directly measured

are detected using image processing, and the coordinates are then easily measured.

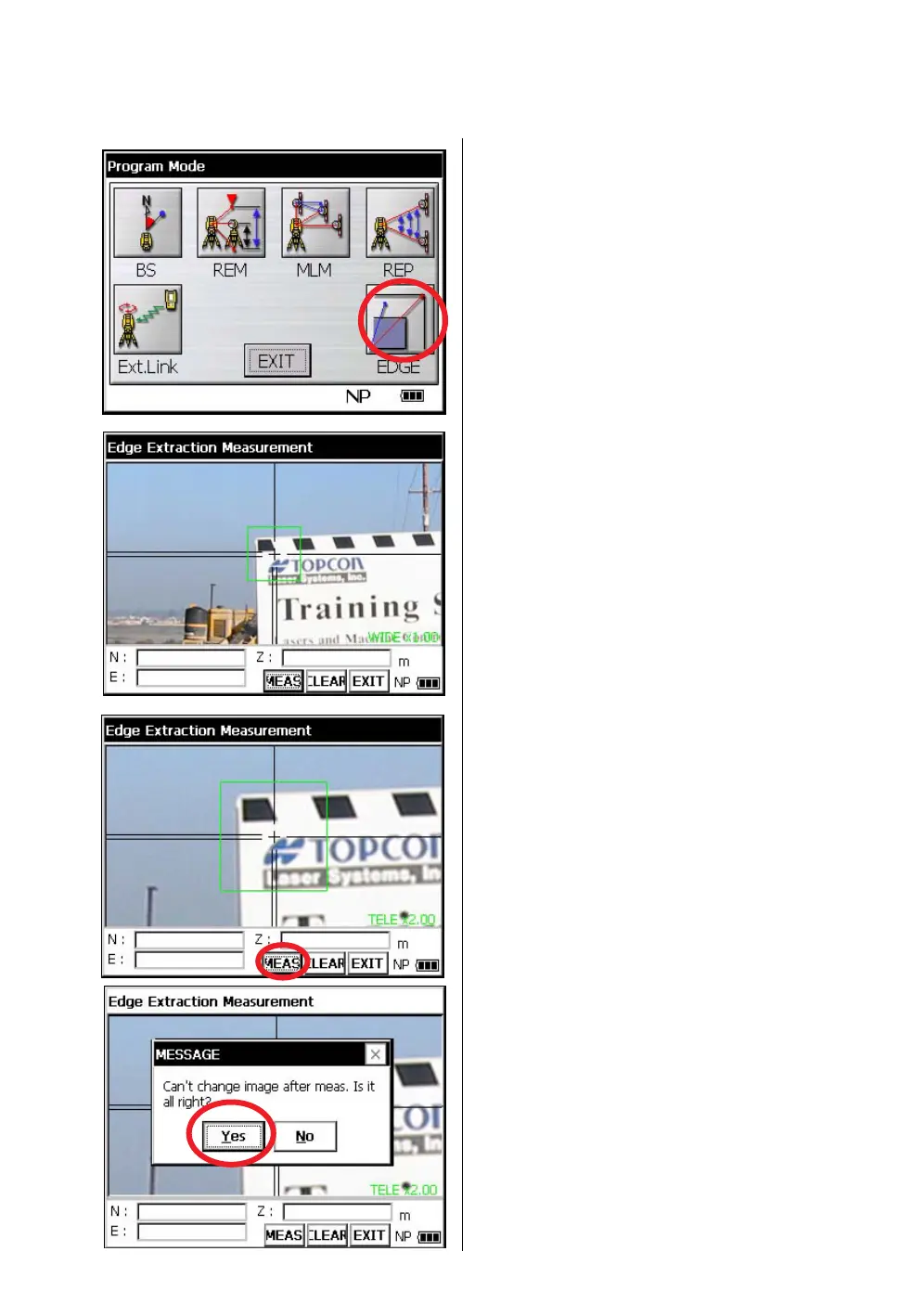

Press the [EDGE] icon.

Collimate the target object.

Switch to the telescopic mode and press the

[MEAS] key.

* Measurement cannot be conducted unless you

switch to the telescopic mode.

Telescopic: numeric key [1]

Wide-angle: numeric key [2]

Press the [YES] key.
