2 PREPARATION FOR MEASUREMENT

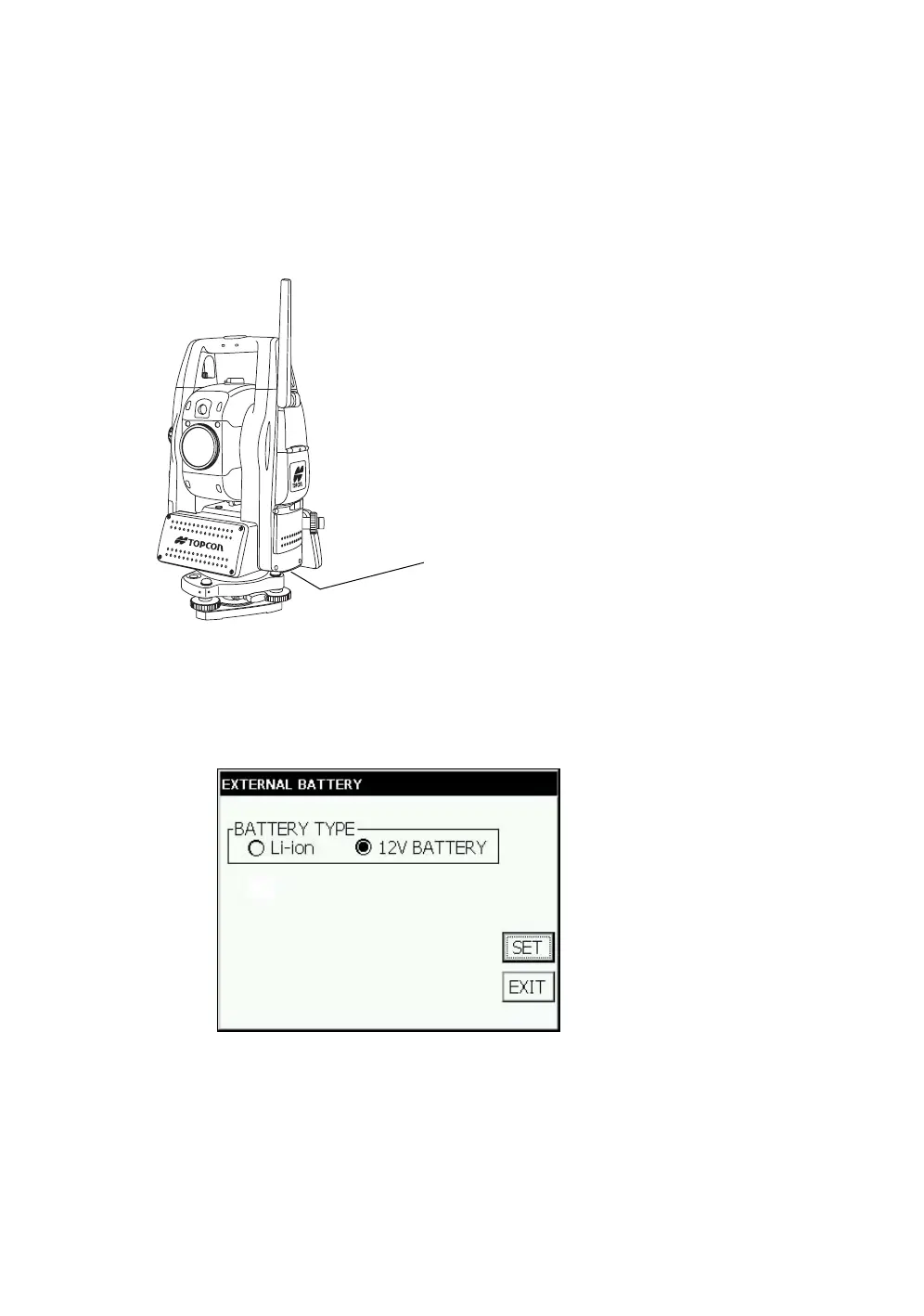

2.1 Power Connection

Obtain power from BT-65Q battery or an external battery.

• When using the BT-65Q, leave the power of the instrument switched ON.

• Selecting an external battery

When using an external battery, select the battery type, either “Li-ion” or “12V BATTERY.”

Regarding operating procedures, refer to Chapter 6 “PARAMETERS SETTING MODE” .

External battery
