125
7 CHECK AND ADJUSTMENT
7.3.5 Checking/Adjusting the Cross-Hairs on Telescopic/Wide-angle Images
•
Checking telescopic Image
1
Level the instrument with the plate level.
2
With the telescope, collimate target point A,
located at a distance of at least 15 meters.
3

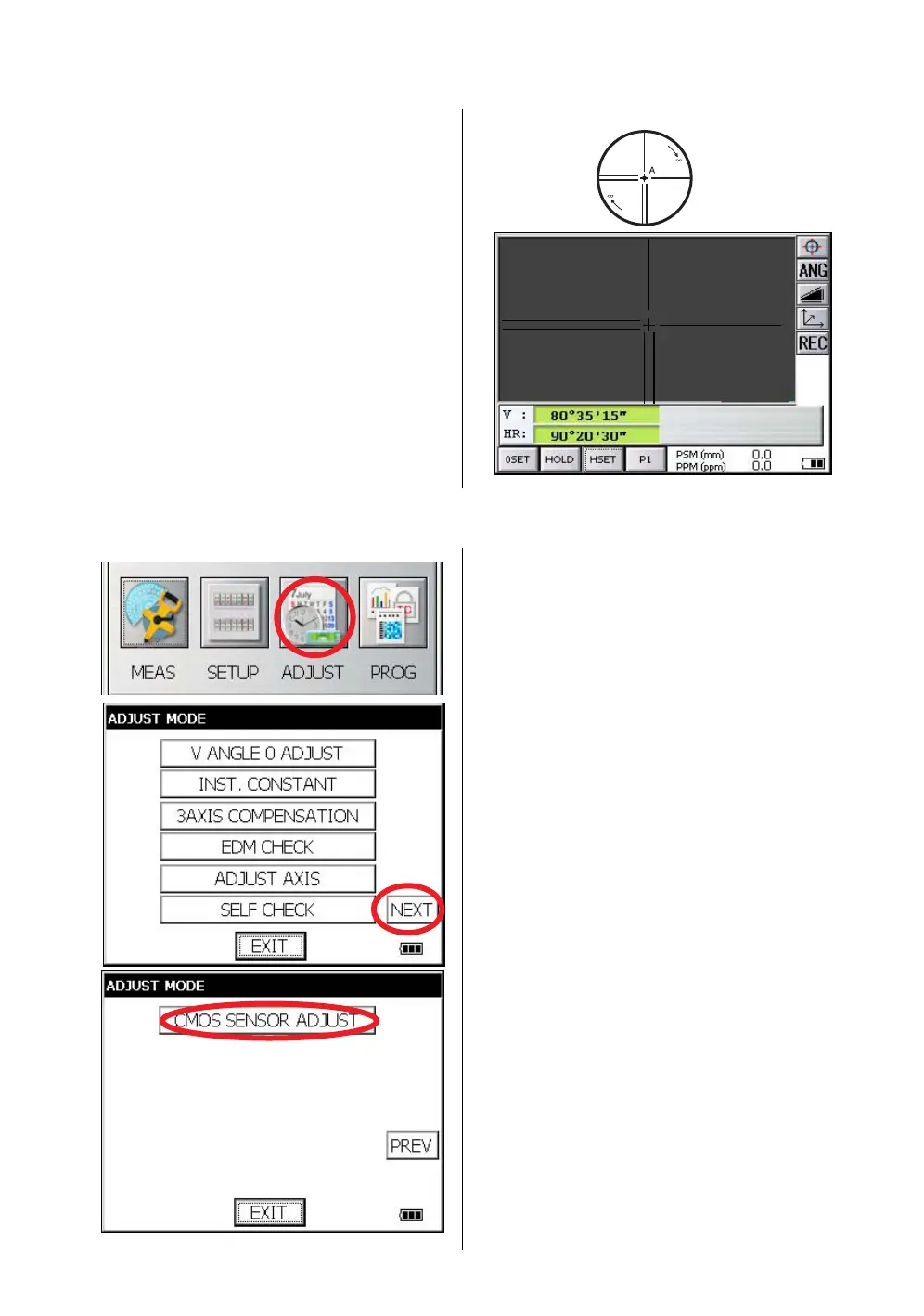

Check that the telescopic image (magnification
of 4) is displayed. If the cross-hairs are
centered on point A, adjustment is not
necessary. If they are off-center, perform
adjustment as follows.
•
Adjustment
Prior to adjustment, carry out section 7.3.4“Collimation of the Instrument” .
1
With the telescope, collimate target point A,
located at a distance of at least 15 meters.
2
Press the [ADJUST] key.
3
Press the [NEXT] key.
4
Press the [CMOS SENSOR ADJUST] key.
A
TELE x 4.00
To Next Page
