5 PROGRAM MODE

5.5 AP-L1A Communication Emulator

With IS Series, it is possible to execute AP-L1A communication emulation.

Set up for use of remote control system is also done here.

5.5.1 Activate AP-L1A communication Emulator

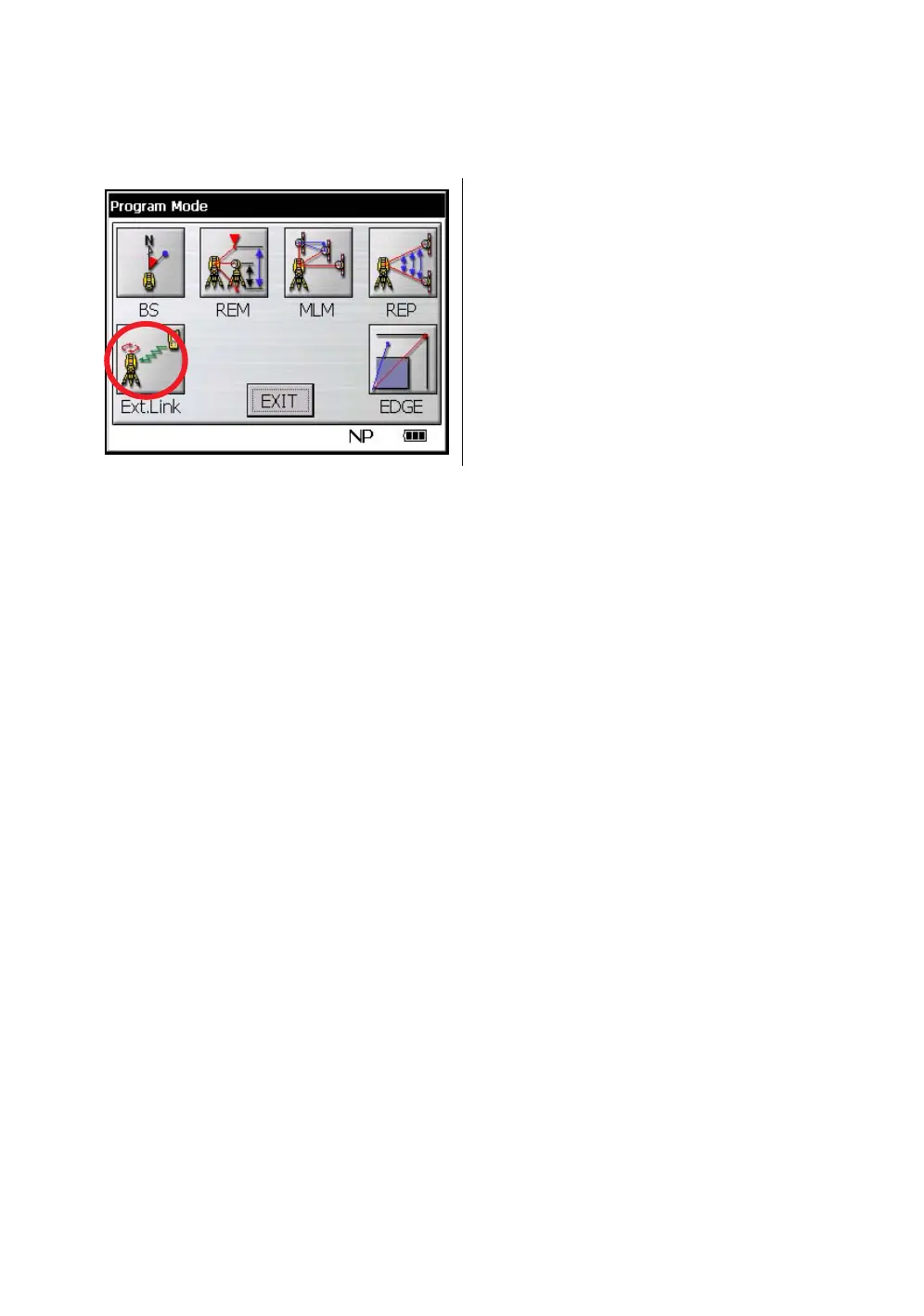

Press the [Ext.Link] icon.

AP-L1A Communication Emulator program

[Ext.Link] will activate.
