101

5 PROGRAM MODE

5.4 Repetition Angle Measurement (REP)

Repetition Angle Measurement program calculates horizontal angles and shows the total angle (Ht)

and the mean (Hm) of all the angles measured. The program also keeps track of the amount of

complete sets of horizontal angles measured.

Repetition Angle Measurement program can be done by horizontal angle right measurement mode.

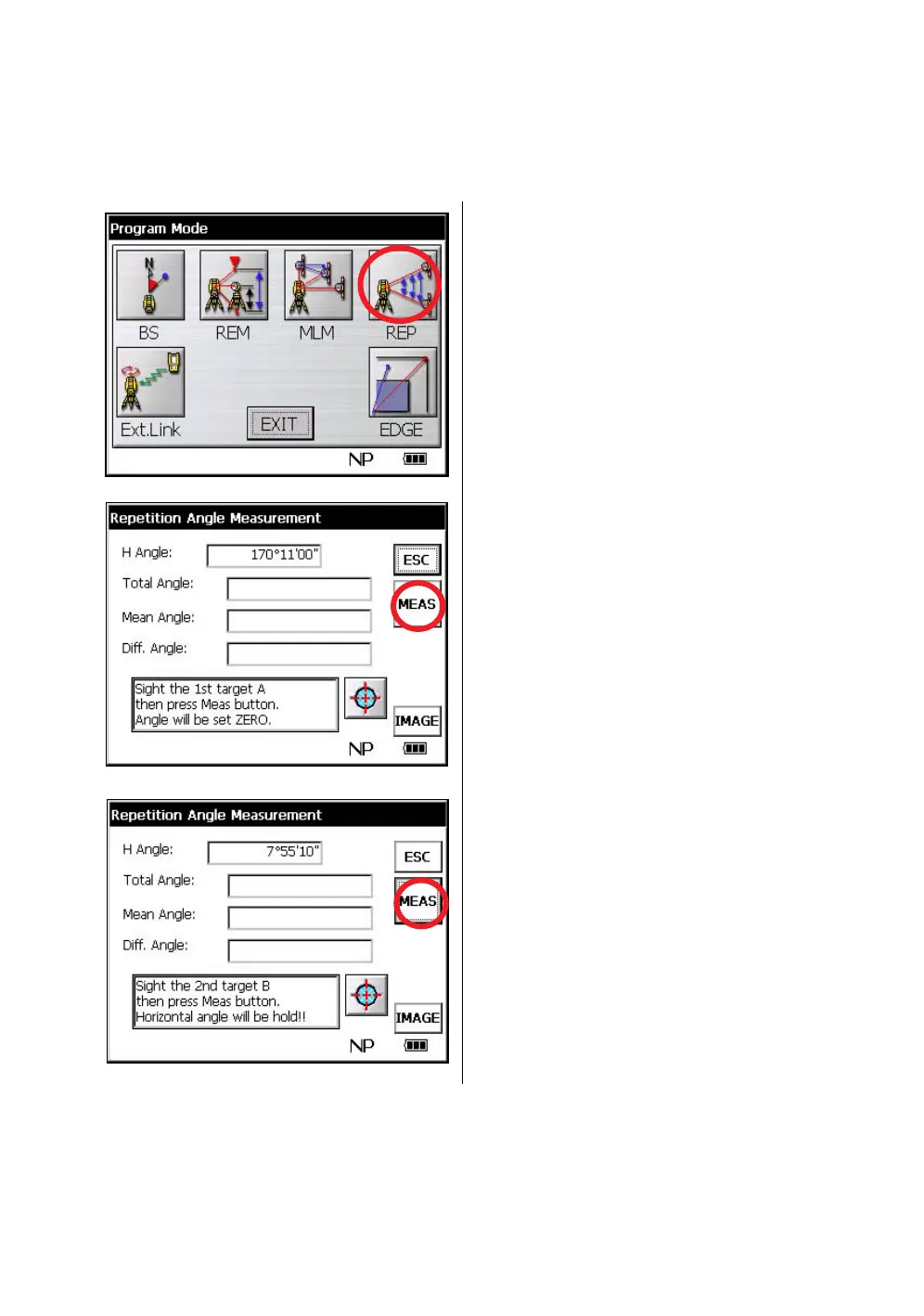

Press the [REP] icon.

Collimate the ﬁrst target A.

Press the [MEAS] key.

Collimate the second target B.

Press the [MEAS] key.
