6 PARAMETERS SETTING MODE

6PARAMETERS SETTING MODE

PARAMETERS SETTING MODE

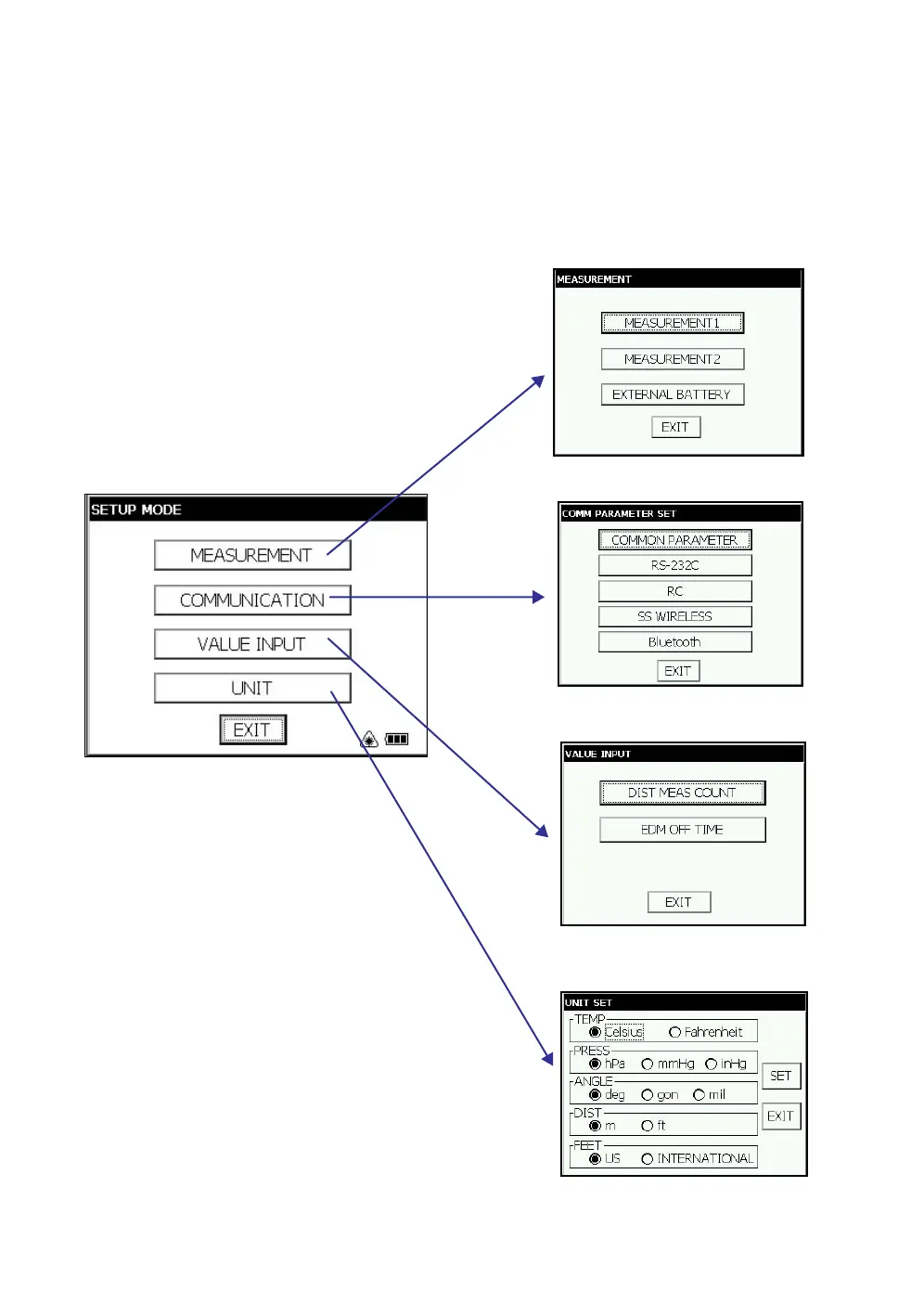

In this mode, setting of parameters regard with

measuring and communications will be done.

When a parameter is changed and set, the new

value is stored into the memory.
