Topcon IS Series User Manual

150

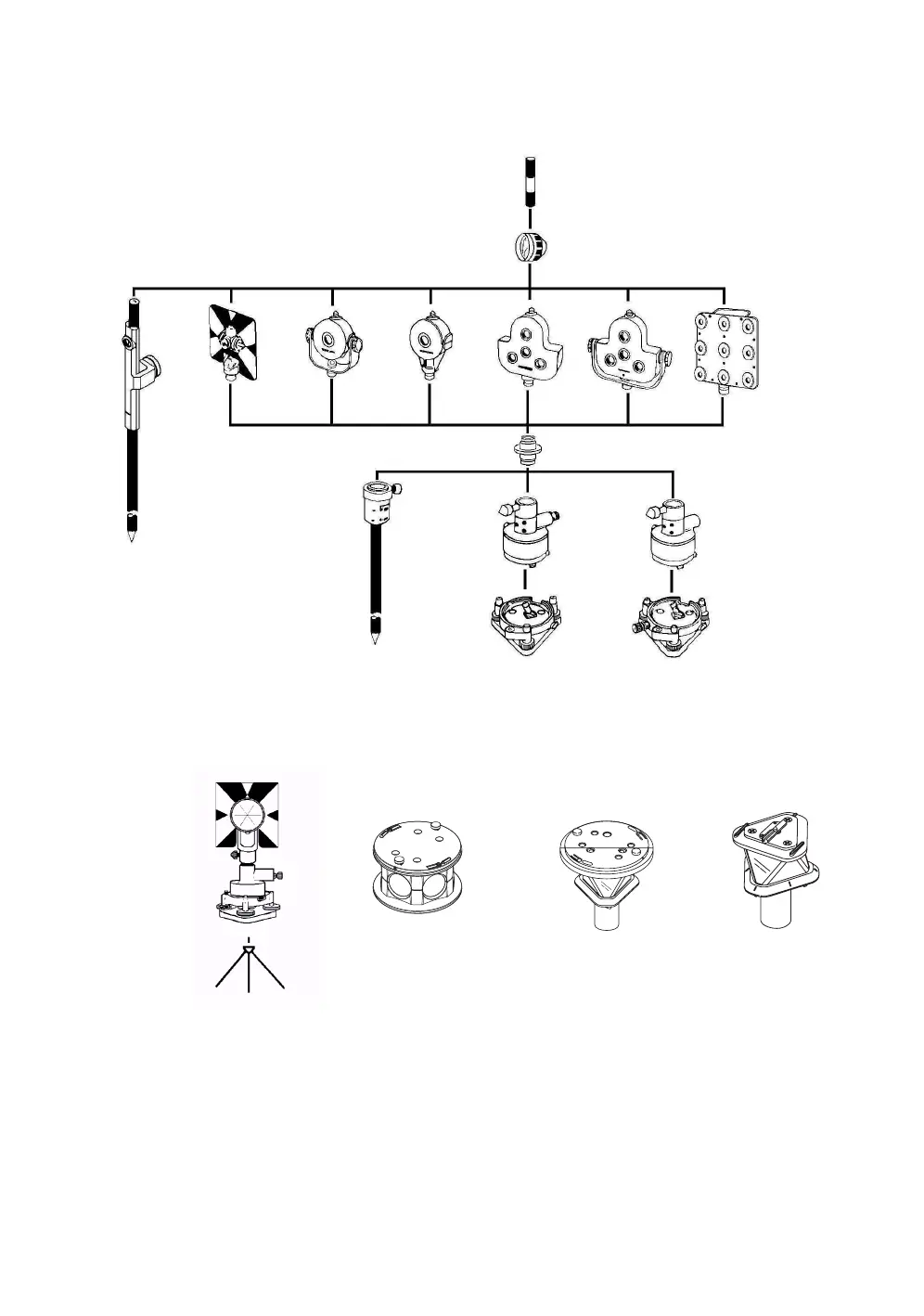

15 PRISM SYSTEM
15 PRISM SYSTEM
Arrangement according to your needs is possible.
• Use the above prisms after setting them at the same height as the instruments. To adjust the height
of prism set, change the position of fixing screws.
Plug 3 is necessary for the tribrach adaptor-2, tribrach adaptor-S2 and pole adaptor-F2 to coincide
with the height of IS series.
• TR-5 or TR-5P tribrach should be used for prism side when the traverse surveys is performed.
Target pole-2
(not used with 9 prisms)
Prism-2
Tilting prism
holder-2
with target
plate-2
Pole adaptor- A
Pole adaptor- F2
Tr ibrach
Optical plummet tribrach
Tilting prism
holder-3
Single prism
holder-2
Tr iple prism
holder-2
Tilting triple
prism holder-1
9 prism
holder-2
Tr ibrach
adaptor-2
Tr ibrach
adaptor-S2
Plug-3
Tilt single prism unit
Tr ipod
Prism unit A6R/A6S Prism unit A7R
Prism unit A7S
