1 NOMENCLATURE AND FUNCTIONS
1.2 Display

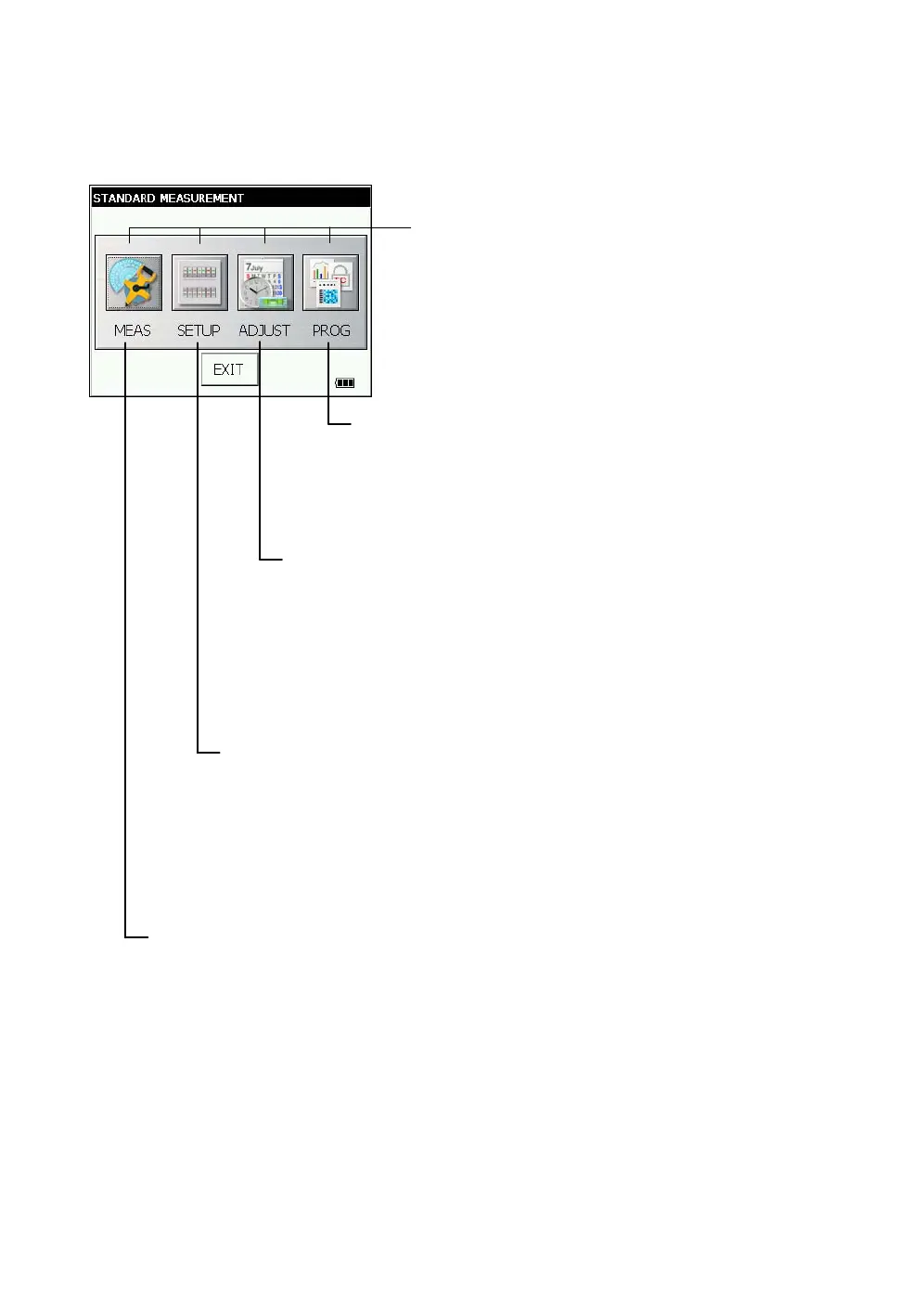

1.2.1 Main Menu Contains
The main menu contains as following items.
Select the menu by pressing icons.
PROGRAM MODE
• Setting a direction angle for backsight orientation
• Remote elevation measurement
• Missing line measurement
• Repetition angle measurement
• Setting AP-L1A communication
(see Chapter 5 “PROGRAM MODE” .)
ADJUSTMENT MODE
This mode is used for checking and adjustment.
• Error of vertical angle 0 datum
• Setting instrument constant value
• Compensation systematic error of Instrument
• Checking the optical axis of EDM
• Adjustment of optic axis for auto -tracking
• Self check
• Checking/Adjusting the Cross-Hairs on Images
(see Chapter 7 “CHECK AND ADJUSTMENT” .)
PARAMETERS SETTING MODE
This mode is used for follows
• Setting measurement
• Setting communication
• Value input
• Setting unit
The PARAMETERS SETTING MODE settled is
memorized even power is off.
(see Chapter 6 “PARAMETERS SETTING MODE” .)
STANDARD MEASUREMENT MODE
This mode is used for follows
• Angle measurement
• Distance measurement
• Coordinate measurement
(see Chapter 4 “STANDARD MEASUREMENT MODE” .)
