4 STANDARD MEASUREMENT MODE
4STANDARD MEASUREMENT MODE
4.1 Screen Displays
In the standard measurement mode, the collimation screen is displayed on the display device except
during collimation with the telescope.
The images include a telescopic image and a wide-angle image.
• Telescopic image : An image similar to that obtained by collimation with the telescope is displayed.
• Wide-angle image : An image with a wide-angle is displayed.
4.1.1 Switching between Telescopic Image and Wide-Angle Image
When numeric key [1] is pressed, a telescopic
image appears.
When numeric key [2] is pressed, a wide-angle
image appears.
See section 1.8.1“Operating Key”.
It is also possible to switch between a
telescopic image and a wide-angle image by
tapping the screen.
* The focus of telescopic images is adjusted
with the telescope focusing knob.

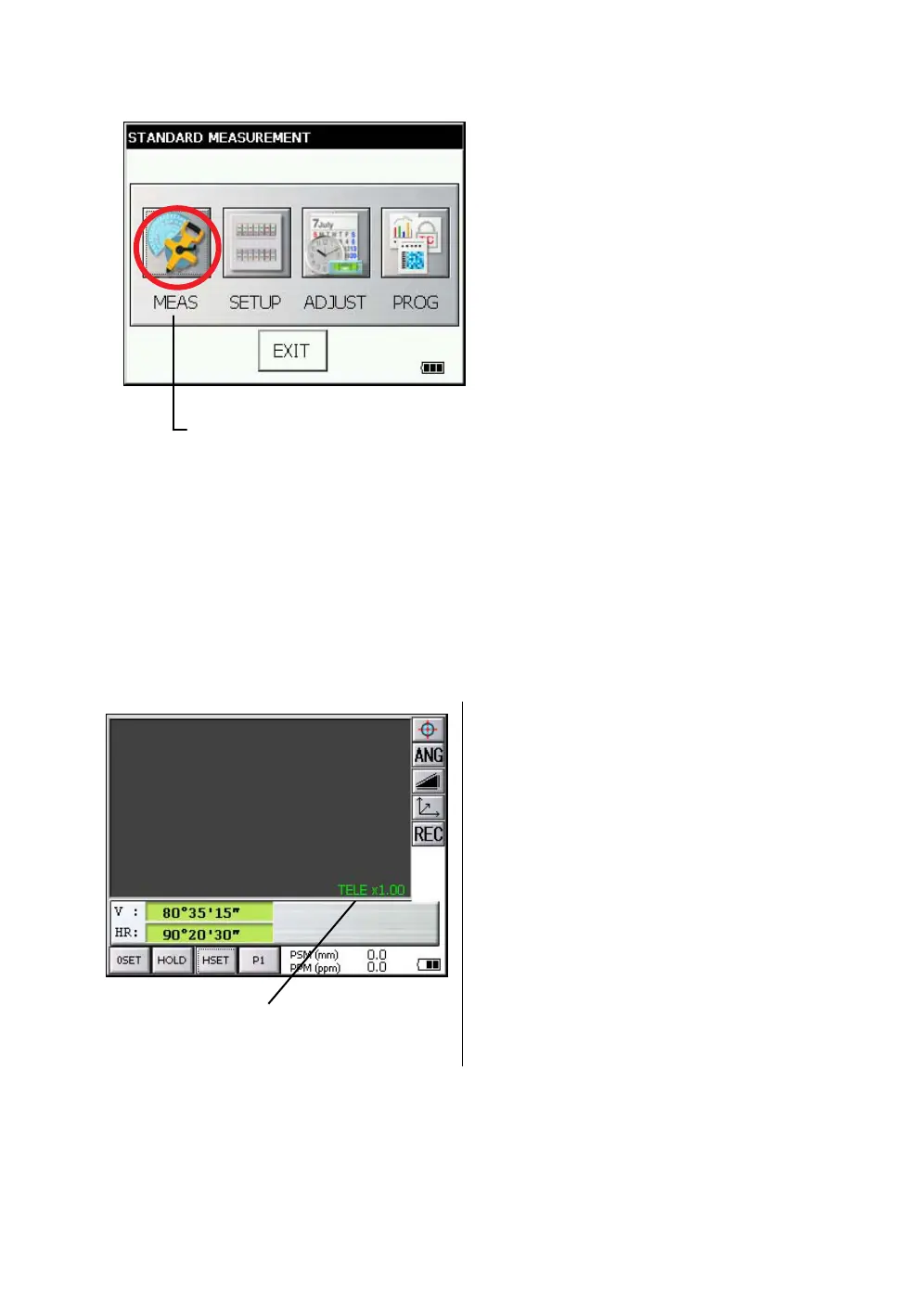

STANDARD MEASUREMENT MODE
Angle measurement, Distance measurement, Coordinate measurement .
Press the [MEAS] icon.
Displays the current mode.
TELE: Telescopic image
WIDE: Wide-angle image
