1 NOMENCLATURE AND FUNCTIONS

1.3.4 Selecting the Key Light Option

The Key Light option:

[Key light is always off, Key light is always on, Key light synchronizes with backlight]

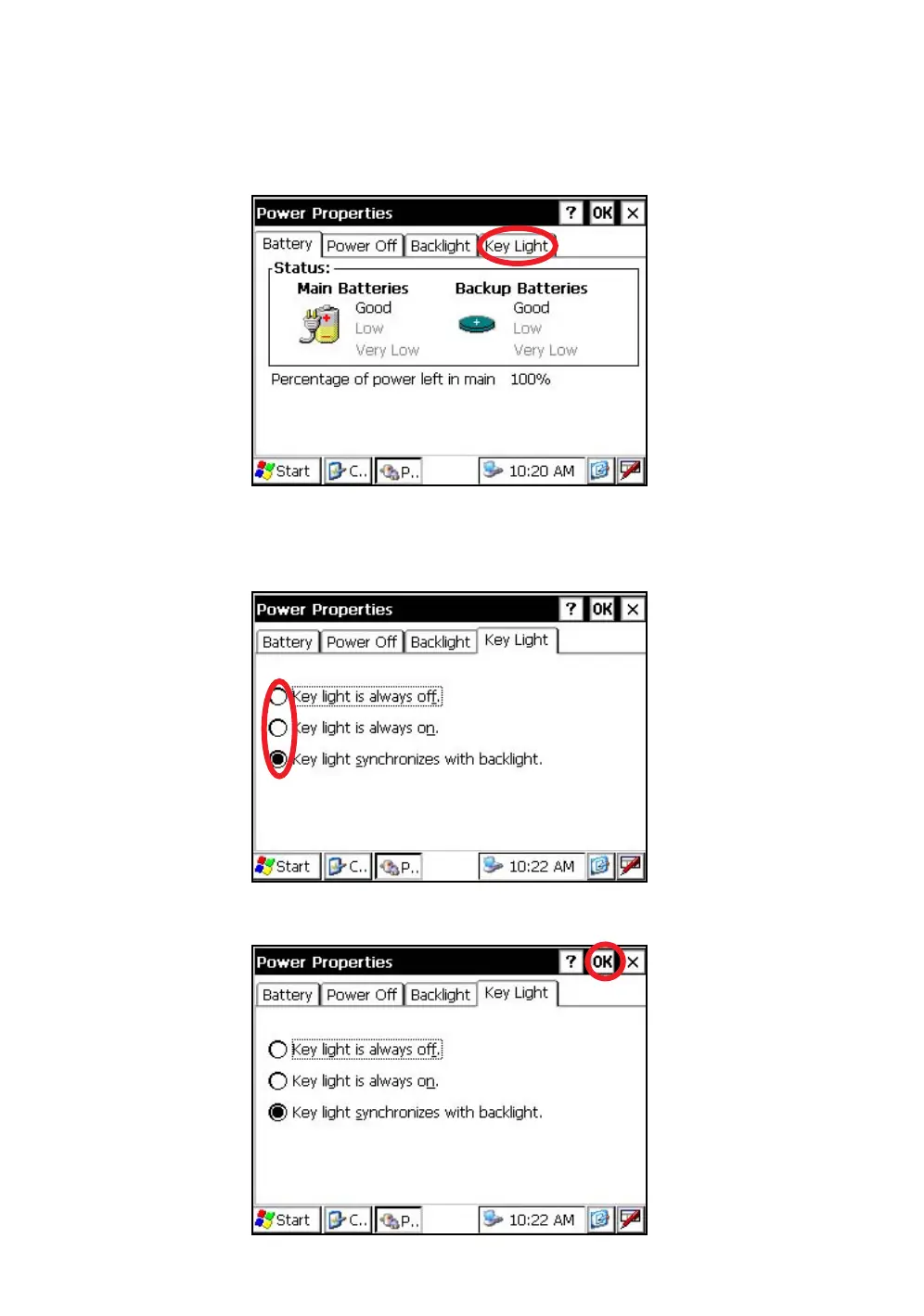

Press the tab [Key Light].

You can see the "Key Light" screen on Display.

Select a Radio button.

(Factory setting is “Key light synchronizes with backlight.” as default)

Press the [OK] key on title bar. After that "Power Properties" screen will close automatically
