1 NOMENCLATURE AND FUNCTIONS

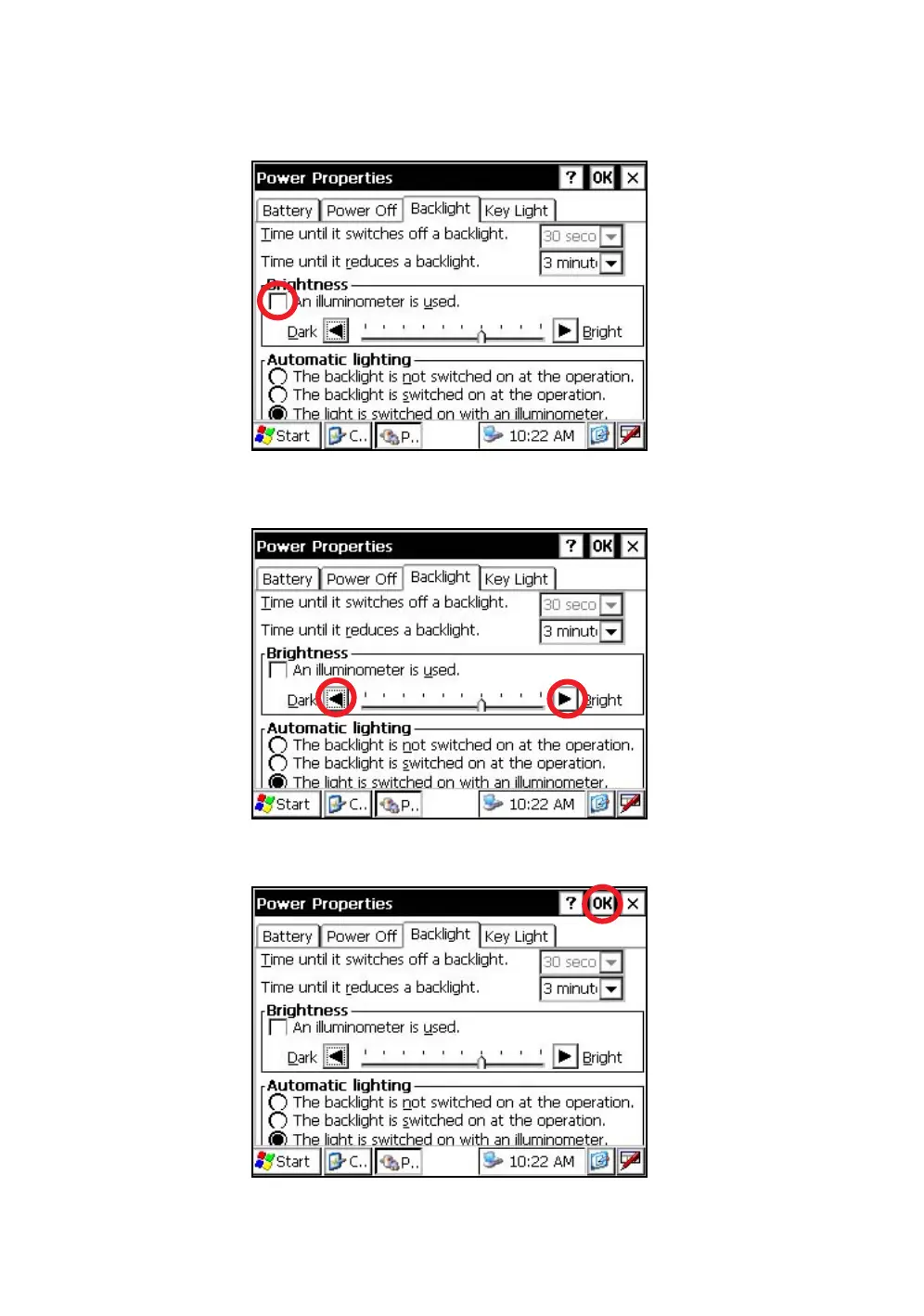

1.3.2 Adjust the Backlight Brightness by Manual

On the "Backlight" screen, please check it 'OFF' "An illuminometer is used.”.

(Factory setting is 'ON' as default)

The "Brightness adjusting slide bar” will be appeared on Display.

Adjust the brightness by pressing [Dark-Bright] button.

Press the [OK] key on title bar. After that "Power Properties" screen will close automatically.
