7 CHECK AND ADJUSTMENT

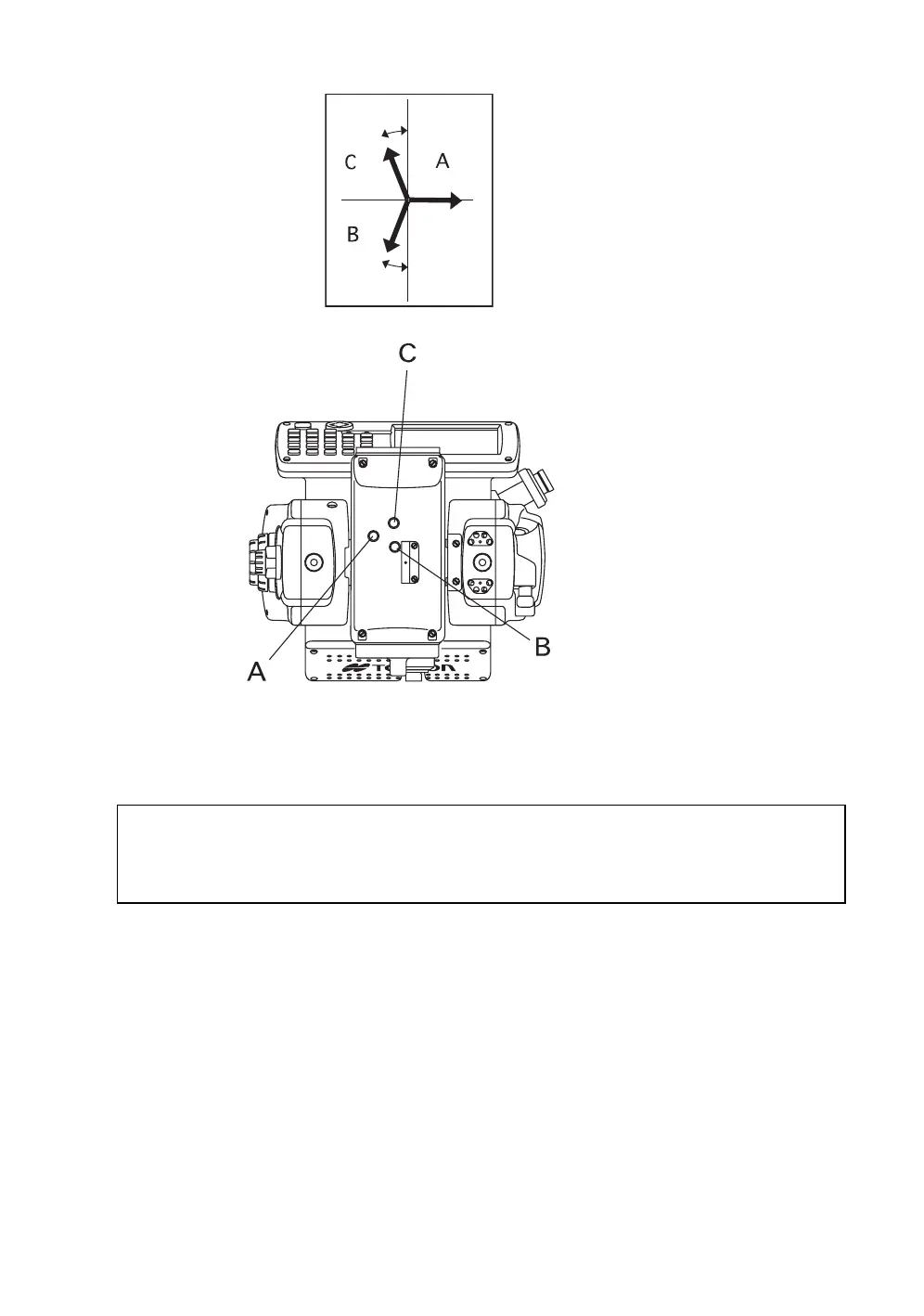

When screws A, B and C are turned clockwise (the direction for tightening them), the laser pointer, as
seen on the target from the standpoint of the IS, will move in the direction shown in the drawing.
About30
°
The direction of the laser pointer
Adjustment screws
As seen from above
About30°
• Tighten the 3 screws so that they are equally tight.
• Do not lose the rubber caps of the adjustment screws.
• Place the operation keys on the telescope eyepiece side, and then turn on the laser pointer
(The laser pointer will not be emitted if the operation keys are placed on the objective lens side).
