7 CHECK AND ADJUSTMENT

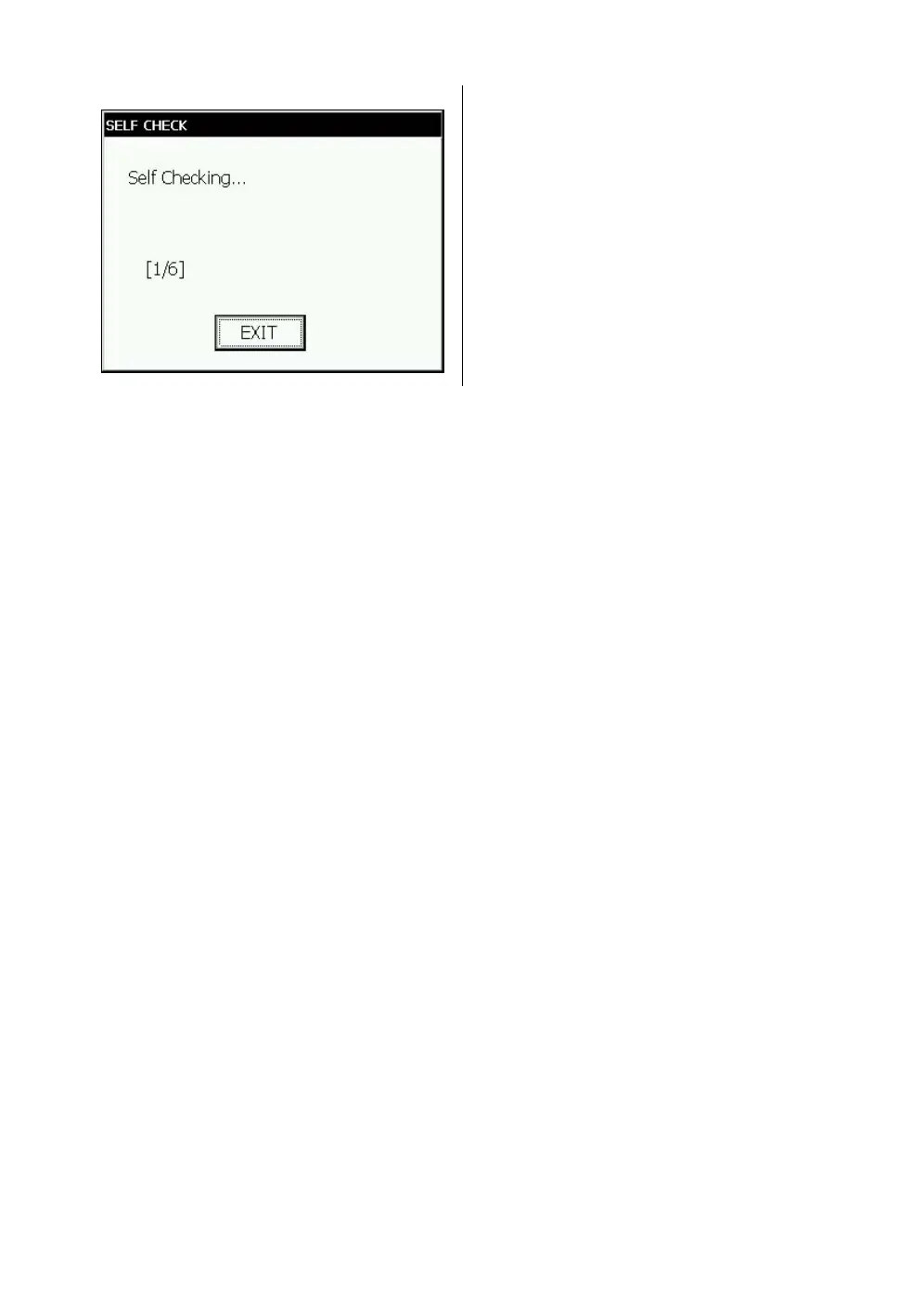

The instrument will turn automatically and the

tilt sensor offset value will be measured and

memorized.

To cancel turning the instrument, press [EXIT]

key.

After checking, the ADJUST MPDE menu will

be shown.
