This radio button group is associated with the receiver parameter /par/ajm/mode.
Multipath Reduction
The checkboxes Code multipath reduction and Carrier multipath reduction
(Figure 40) are used for mitigation of the multipath phenomenon.

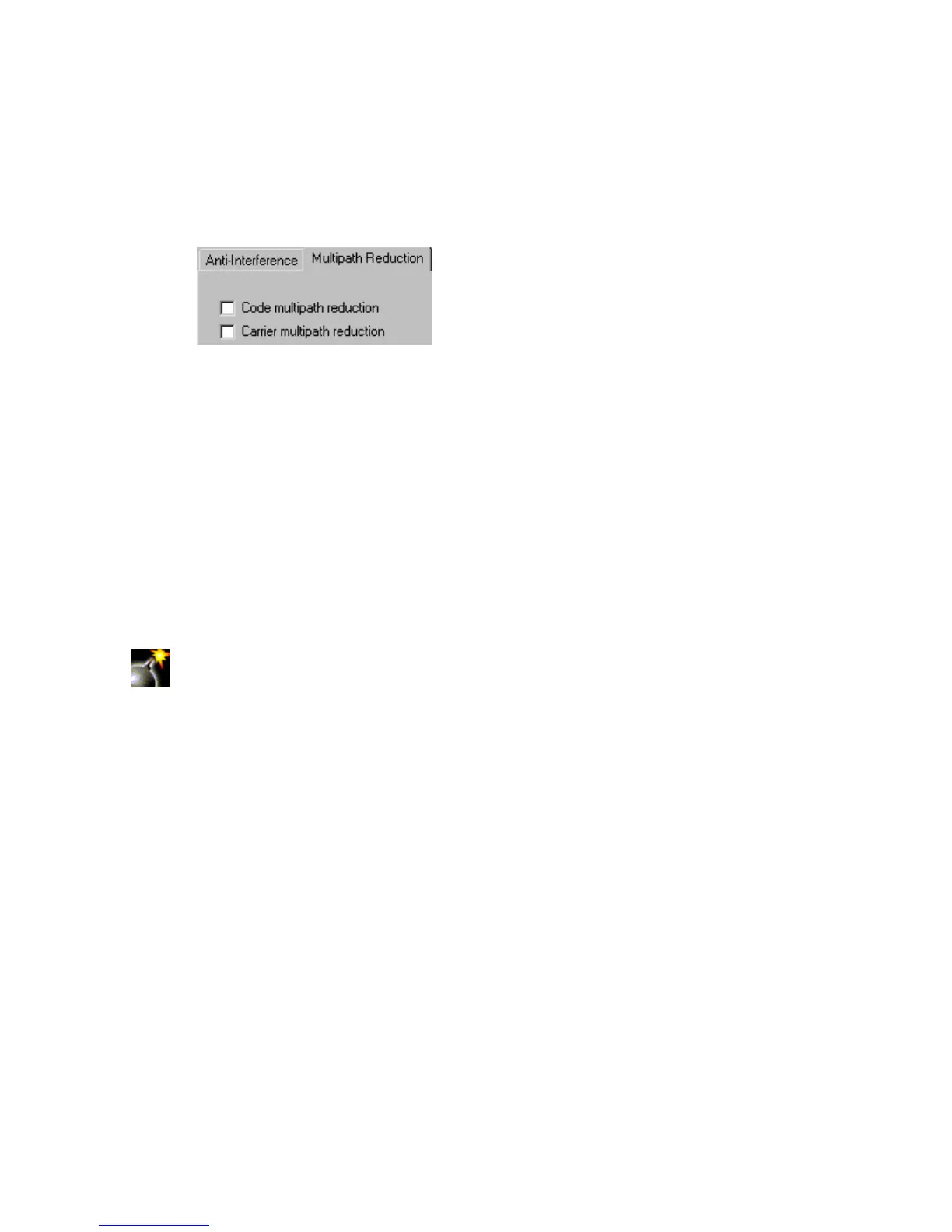

Figure 40. “Multipath Reduction” tab
When the reference station and rover station run in DGPS mode and they are not free from the im-
pact of multipath, we recommend that you select the Code multipath reduction checkbox
for both the reference and rover stations. This checkbox is associated with the receiver parameter
/par/raw/corr/ca/code. If one uses a pair of receivers in RTK mode, select the checkbox Carrier
multipath reduction for both receivers. The checkbox is associated with the receiver pa-
rameter /par/raw/corr/ca/carrier.
Loops Management
In this subtab the user can configure the settings that deal with the receiver capability of searching,
acquiring and tracking the GNSS satellite signals (Figure 41).
Care should be taken when changing the settings for this subtab. An improperly
set the controls may result in receiver malfunction. Topcon recommends that us-
ers do not change these settings without good reason. For an explanation of this
subtab, please see details under figure 41.
