Toshiba TOSVERT VF-AS3 User Manual

E6582062
3-15 3. [Basic operation] Operation panel and screen display
3
9
10

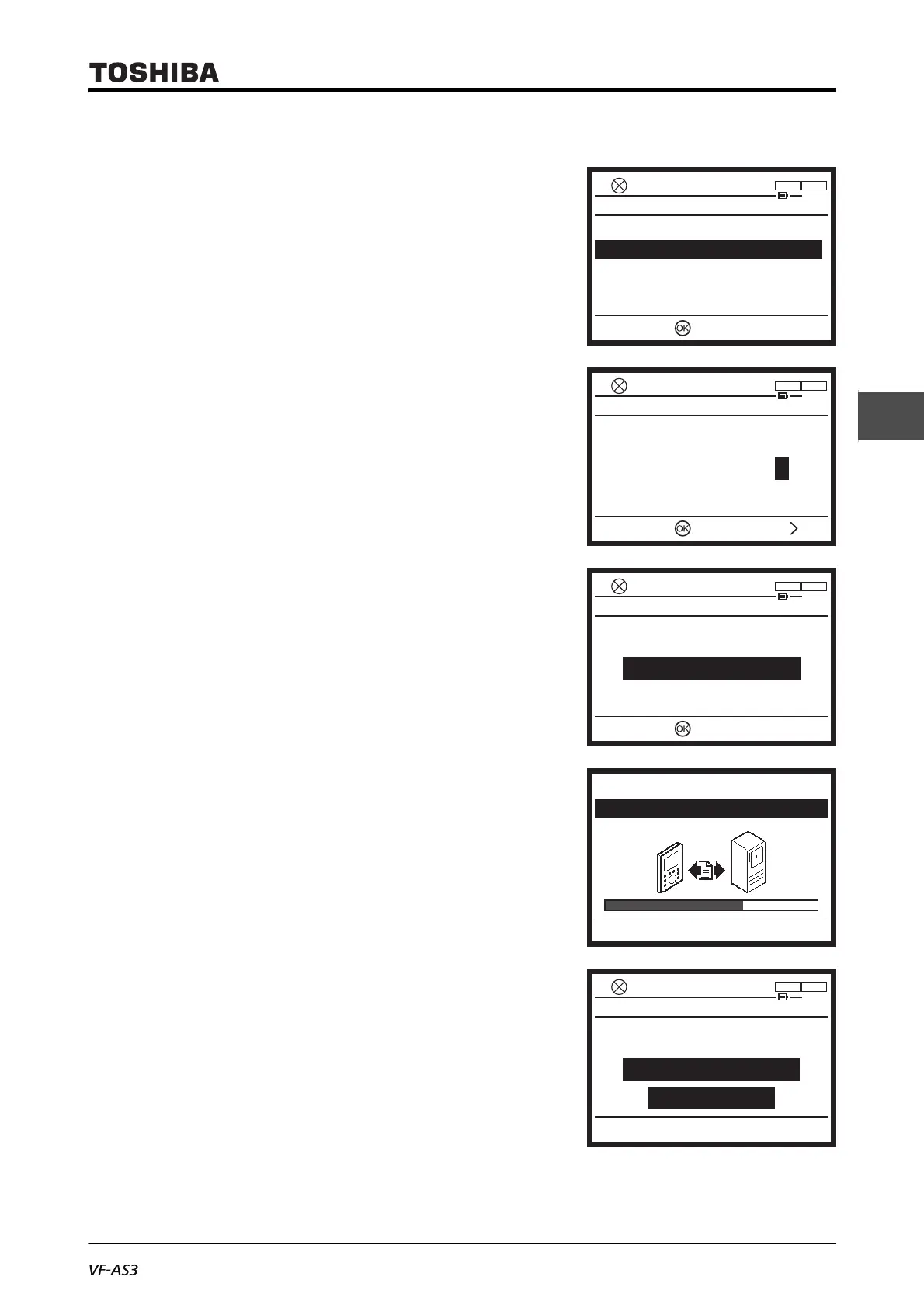

(1) Copying to LCD (uploading)
(1) Select "Copy to the keypad" and press the [OK] or
[F2] key.
(2) Set a figure 0 - 99 after the inverter type followed
by #, and press the [OK] or [F2] key.
(3) The highlighted part is the file name. In the follow-
ing example, "VFAS3-2037P#1” is the file name.
(4) When you press the [OK] or [F2] key, copying of
the parameters of the inverter body to the file
(memory) of the LCD body is started.
(5) When the transfer is completed normally, the file
name and CRC are displayed.
0.0HzSTOP
15:20
Copy function
Copy to the drive
Copy to the keypad
F R
Top Return
0.0HzSTOP
15:20
Copy to the keypad
F R
Top Return
Set the file number after #.
VFAS3-2037P#1
0.0HzSTOP
15:21
Copy to the keypad
F R
Top Return
The copy will start when OK-key is pushed.
VFAS3-2037P#1
Transferring...
0.0HzSTOP
15:21
Copy to the keypad
F R
Top Return
The copy has been completed.
VFAS3-2037P#1
CRC=FA1C

Toshiba TOSVERT VF-AS3 Specifications

General

Model	TOSVERT VF-AS3
Category	Inverter
Overload Capacity	150% for 60 seconds
Cooling Method	Forced Air Cooling
Control Method	V/f control, Sensorless vector control
Braking Unit	Built-in
Communication Protocols	Modbus RTU, DeviceNet, Profibus DP
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault
Enclosure	IP20
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
