E6582062

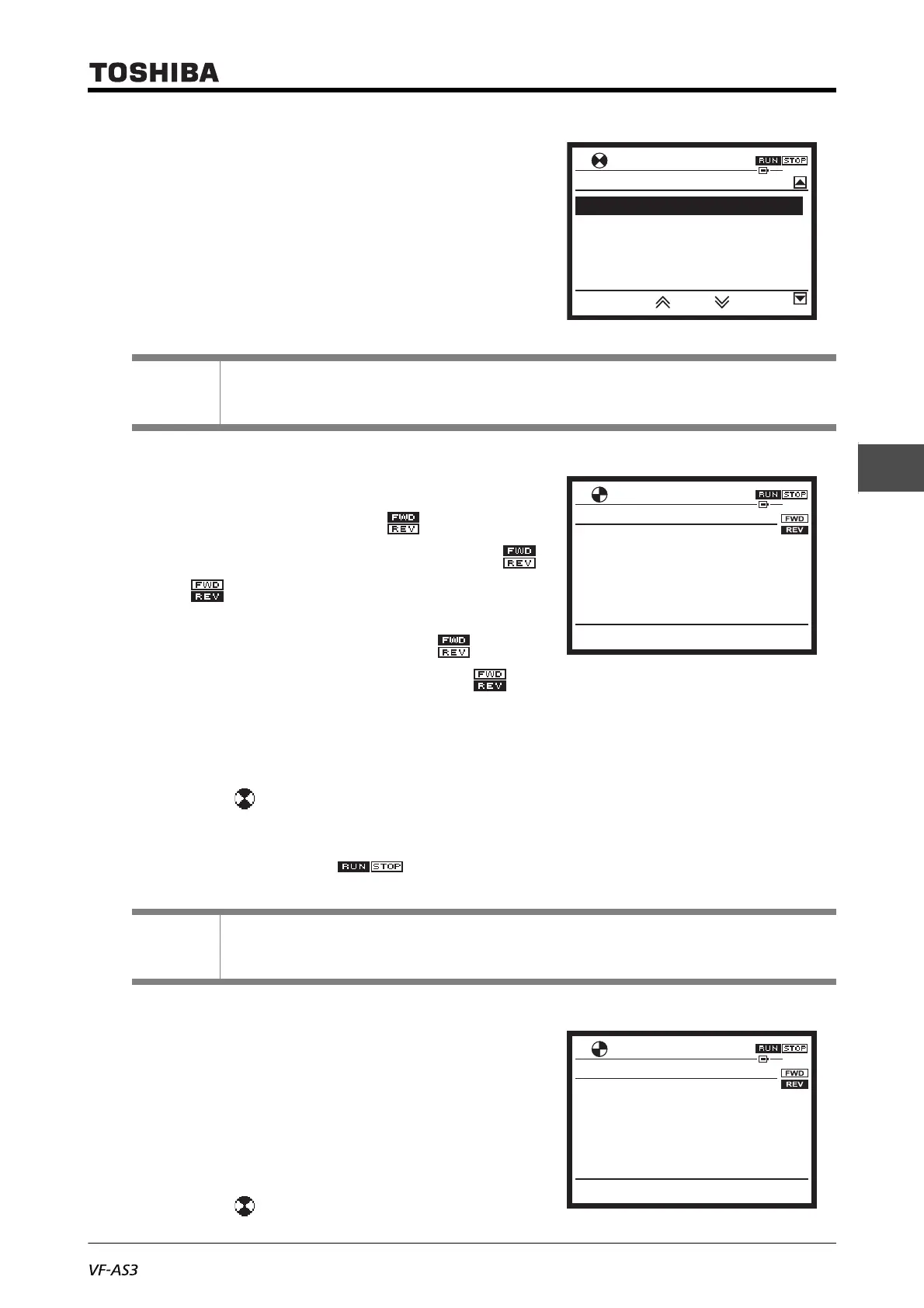

4-25 4. [Basic operation] Operation methods of motor
3
4
9
The basic parameter screen is displayed.
Check that the setting value of <Fr: Panel Fwd/Rev
run select> is "2."
6 Press the [ESC] key or [F1] to [F4] keys to switch
to the [Standard mode] screen.
• Icon of direction of rotation
Only when the [FWD]/[REV] key is enabled,
is displayed in the mode name area in the
upper right of the screen.
When the motor is running forward, is
highlighted. When it is running reversely, is
highlighted.
The following are always displayed in the status area on the upper side of the screen
regardless of display mode. (From the left)
• The icon is rotating (clockwise for forward run)
• Operation status "RUN"
• Frequency command (display contents vary depending on the setting of the parameter)
• Run command icon
7 When you press the [FWD/REV] key, the direction
of rotation of the motor is switched to reverse run.
The motor decelerates and shows 0.0 Hz once.
Then, it accelerates to the frequency command
value set with <FC: Panel run frequency> and
becomes stable.
You can check the direction of rotation of the motor
with the following display.
• The icon is rotating counterclockwise
Memo
• When you select "1: Rev run" and press the [OK] key, the motor decelerates and starts reverse
run. [FWD/REV] key operation is not possible.
Memo
• You can also check the direction of rotation of the motor on the [Monitor mode] screen. For
details, refer to [8. 1. 1].
30.0HzRUN
15:33
Basic parameters
Fr : Panel Fwd/Rev run
FMSL : FM function
FM: FM
2
0
100.0%
OLM : Motor OL characteristic 0
tHrA : tHrA 4.00A
Easy Screen Copy Monitor
Hz
30.0HzRUN
30.0
15:33
Standard Mode
Easy Screen Copy Monitor
Hz
30.0HzRUN
30.0
15:33
Standard Mode
