4. [Basic operation] Operation methods of motor 4-24
4
9

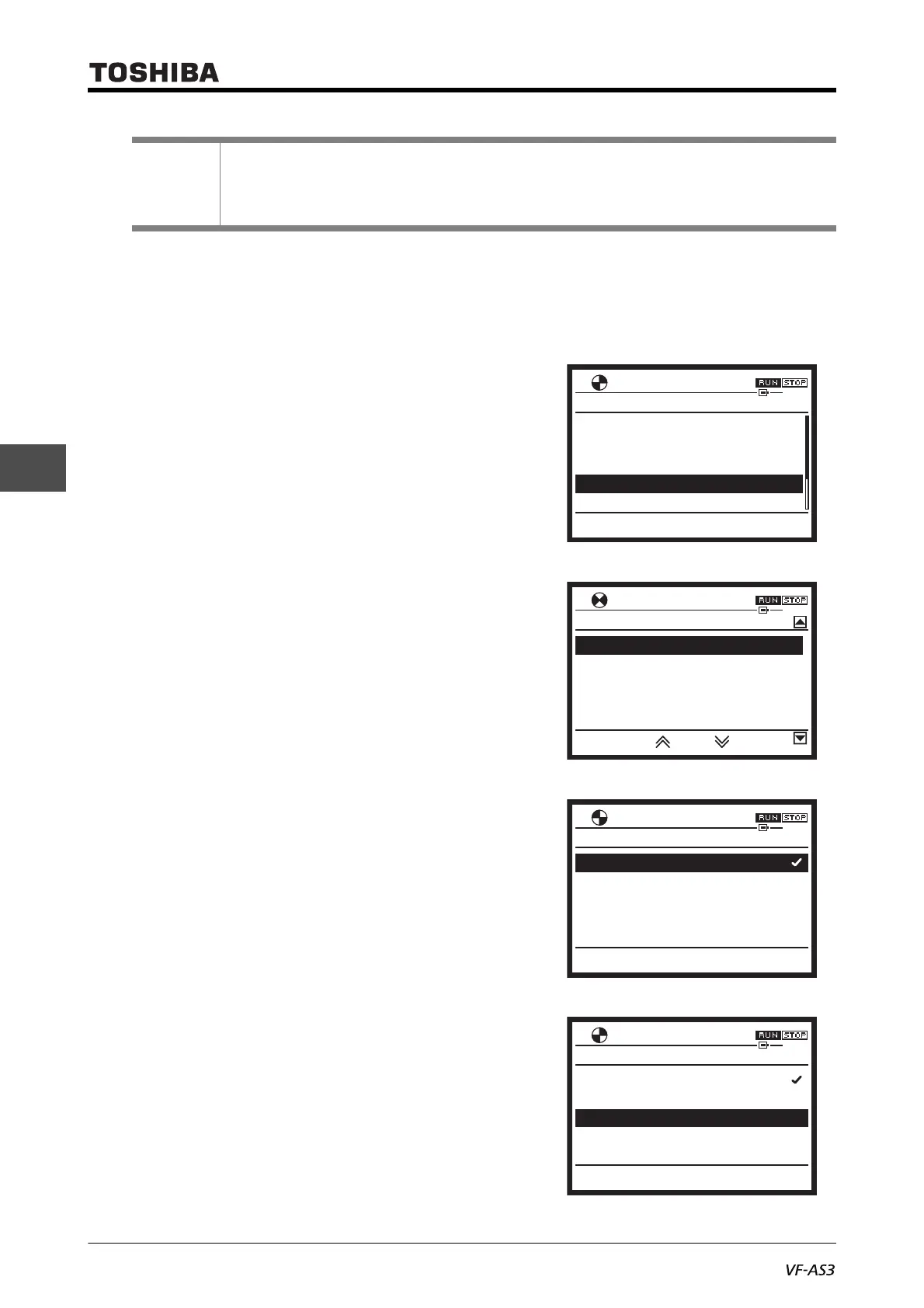

1 Operate the motor with the operation panel according to [4. 3. 1].
2 Switch to [Setting mode].
3 Select "4. Basic parameter" and press the [OK]
key.
The basic parameter screen is displayed.
4 Select <Fr: Panel Fwd/Rev run select> and press
the [OK] key.
The setting screen is displayed.
5 Select "2: Fwd run (switchable F/R by panel)" and
press the [OK] key.
Reference
• How to switch the display mode of the operation panel -> Refer to [3. 1. 2]
• Procedure to change parameter setting -> Refer to [4. 2. 3]
• Details of <Fr: Panel Fwd/Rev run select> -> Refer to [5. 3. 9]
1. History function
2. Direct access
3. Guidance function
4. Basic parameters
5. Extended parameters(F - - -)
Top
30.0HzRUN
15:31
Monitor
Setting Mode
30.0HzRUN
15:32
Basic parameters
Fr : Panel Fwd/Rev run
FMSL : FM function
FM: FM
0
0
100.0%
OLM : Motor OL characteristic 0
tHrA : tHrA 4.00A
30.0HzRUN
15:32
Fr Panel Fwd/Rev run
0: Fwd run
1: Rev run
2: Fwd run (switch F/R by panel)
3: Rev run (switch F/R by panel)
30.0HzRUN
15:33
Fr Panel Fwd/Rev run
0: Fwd run
1: Rev run
2: Fwd run (switch F/R by panel)
3: Rev run (switch F/R by panel)

Toshiba TOSVERT VF-AS3 Specifications

General

Model	TOSVERT VF-AS3
Category	Inverter
Overload Capacity	150% for 60 seconds
Cooling Method	Forced Air Cooling
Control Method	V/f control, Sensorless vector control
Braking Unit	Built-in
Communication Protocols	Modbus RTU, DeviceNet, Profibus DP
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault
Enclosure	IP20
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
