E6582062
4-33 4. [Basic operation] Operation methods of motor
3
4
9

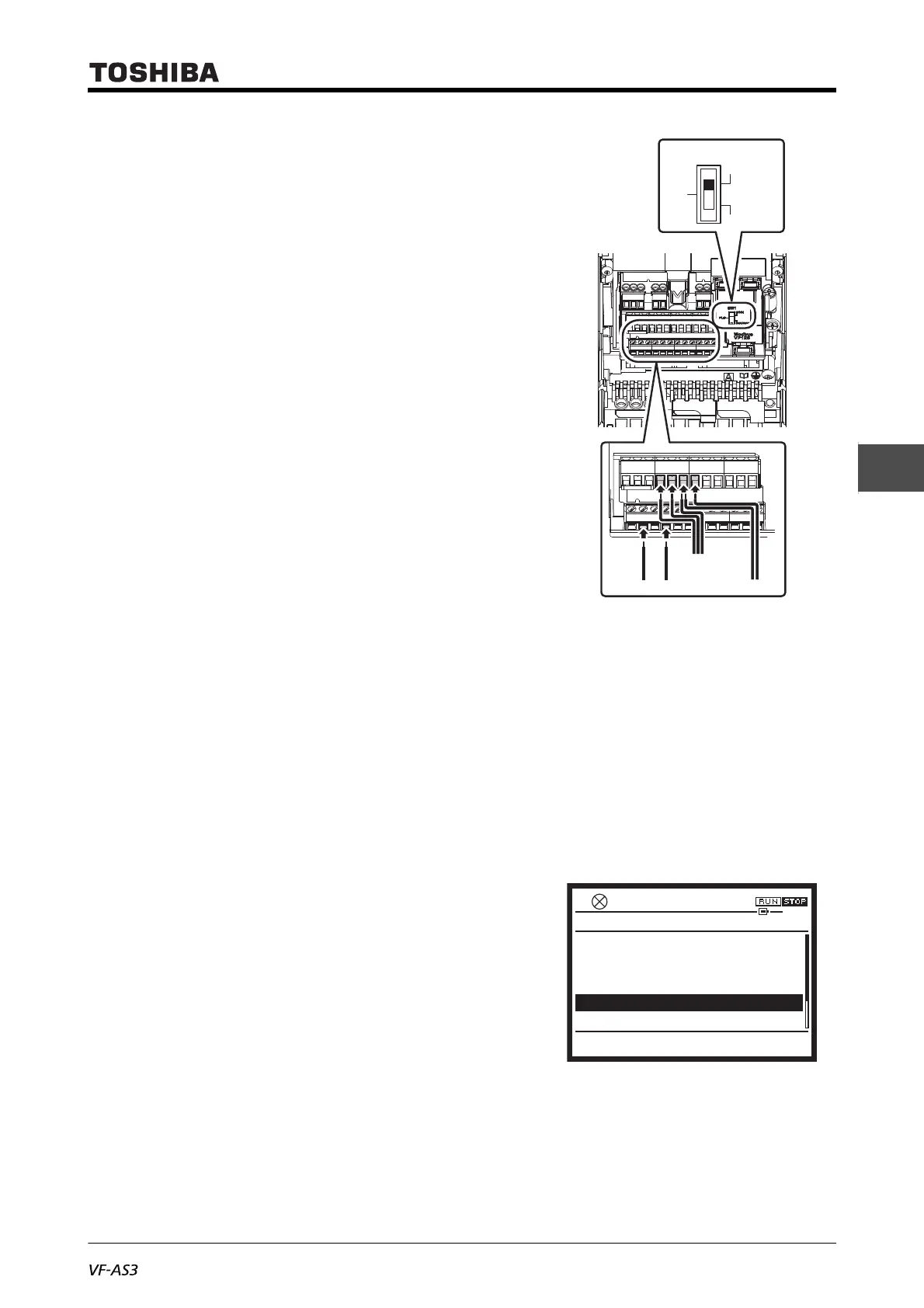

3 Check that the slide switch [SW1] is on the SINK
side.
If it is set to PLC/SOURCE side, set it to the SINK
side.
For details of the slide switch, refer to [2. 3. 5].
4 Check connection of the terminals to be used on
the control terminal block.
For details of positions of the control terminal block
and terminals, refer to [2. 3. 5].
Digital input terminals [F], [CC]
• Connect the switch and execute forward run of
the motor.
Potentiometer input terminals [PP], [RR], [CC]
• Connect both ends of the potentiometer to the
terminal [PP] and terminal [CC], and the sliding
terminal to the terminal [RR]. Rotate the
potentiometer to change the frequency command.
The terminal [PP] is used for a 10 Vdc power supply for analog input.
Analog input terminals [RX], [CC]
• Input 0 - 10 Vdc or -10 to +10 Vdc as a frequency command signal between the terminal [RX]
and terminal [CC].
5 Mount the covers.
For how to mount them, refer to [2. 2].
6 Turn on the power of the inverter.
7 Switch to [Setting mode].
Select "4. Basic parameter" and press the [OK]
key. The basic parameter screen is displayed.
PLC
SINK
SOURCE
SW1
Connect switches
Connect
potentiometers
Apply DC voltage
1. History function
2. Direct access
3. Guidance function
4. Basic parameters
5. Extended parameters(F - - -)
Top
0.0HzSTOP
15:13
Monitor
Setting Mode
