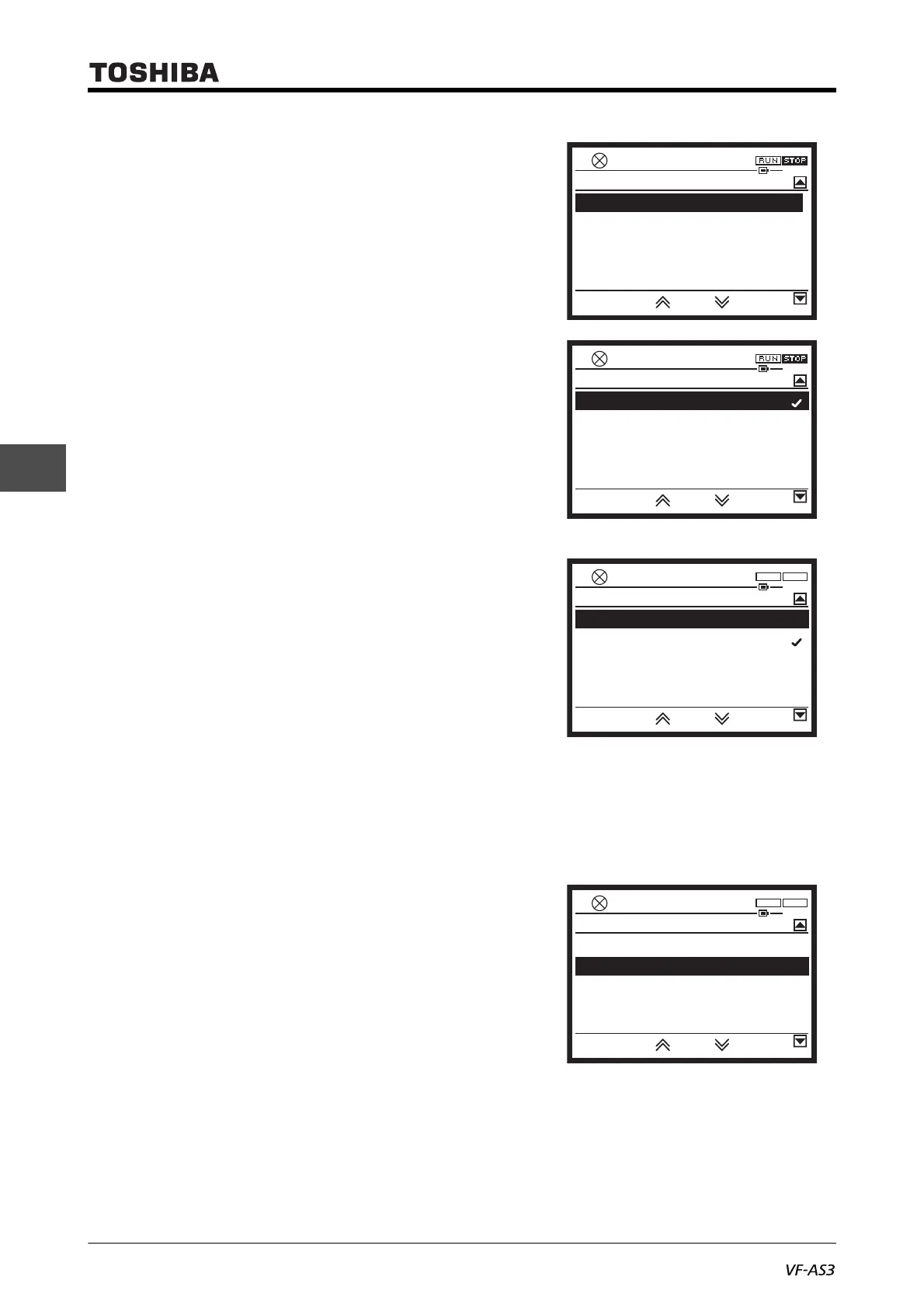

4. [Basic operation] Operation methods of motor 4-34
4
9
8 Select <CMOd: Run command select> and press
the [OK] key.
You can also select <CMOd: Run command
select> on the [Easy mode] screen.
The setting screen is displayed.
9 Select "0: Terminal" and press the [OK] key.
The basic parameter screen is displayed.
Check that the setting value of <CMOd: Run
command select> is "0."
10 Select <FMOd: Frequency command select 1> and press the [OK] key.
The setting screen is displayed.
11 Select "1: Terminal RR" and press the [OK] key.
0.0HzSTOP
15:51
Basic parameters
CMOd : Run command select
FMOd : Frequency command select 1
vb : Manual torque boost 1
vL : Base frequency 1
1
10
4.80%
60.0Hz
Pt : V/f Pattern 0
2: Embedded Ethernet
3: RS485 com (connector 1)
4: RS485 com (connector 2)
5: Communication option
0.0HzSTOP
15:51
CMOd :Run command select
1: Operation panel,Ext panel
1: Operation panel,Ext panel
2: Embedded Ethernet
3: RS485 com (connector 1)
4: RS485 com (connector 2)
0.0HzSTOP
15:51
CMOd :Run command select
0: Terminal
F R
2: Terminal RX
3: Terminal Ⅱ
4: Terminal AI4(option)
0.0HzSTOP
15:55
FMOd :Frequency command select 1
0: -
1: Terminal RR
F R

Toshiba TOSVERT VF-AS3 Specifications

General

Model	TOSVERT VF-AS3
Category	Inverter
Overload Capacity	150% for 60 seconds
Cooling Method	Forced Air Cooling
Control Method	V/f control, Sensorless vector control
Braking Unit	Built-in
Communication Protocols	Modbus RTU, DeviceNet, Profibus DP
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault
Enclosure	IP20
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
