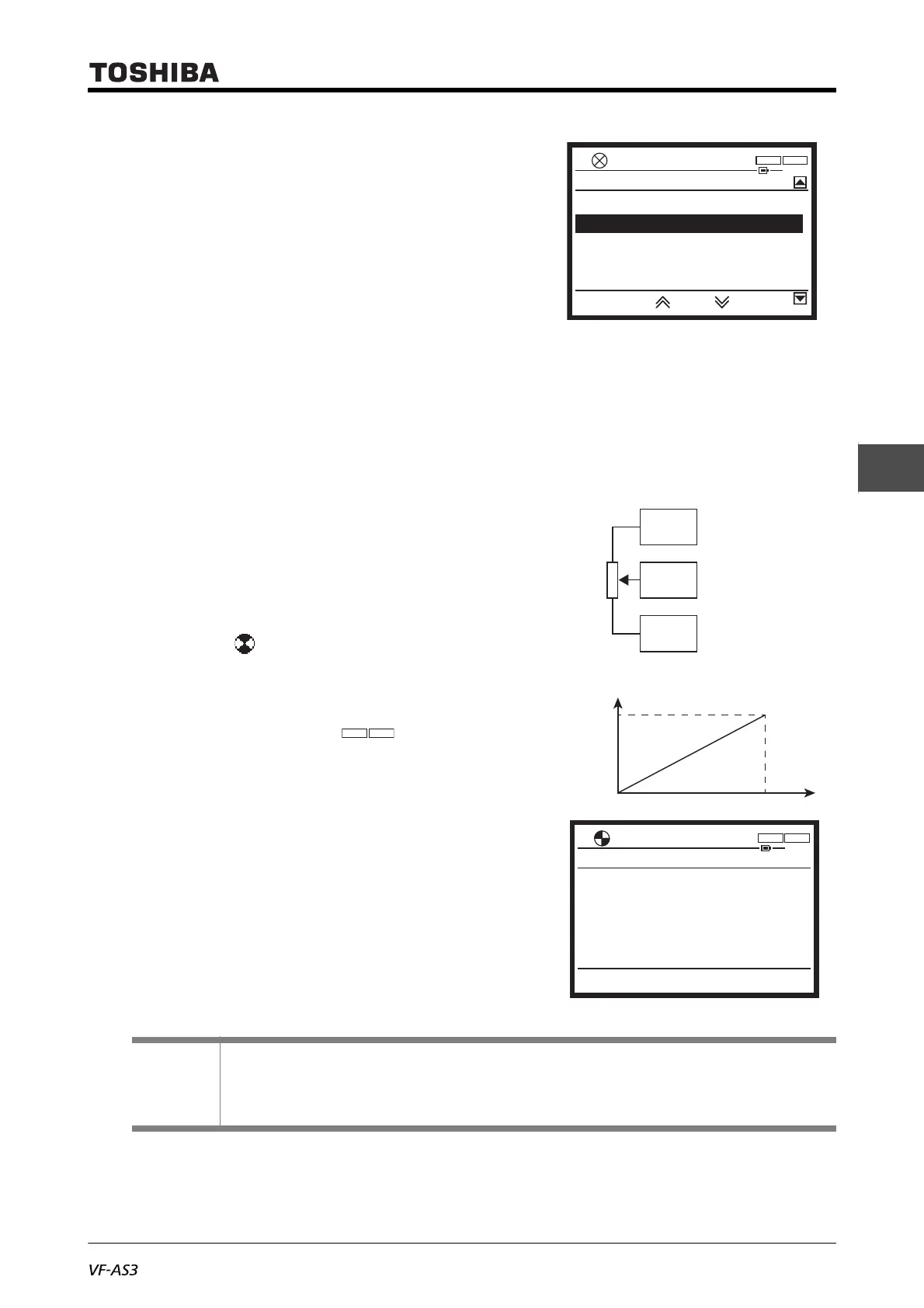

4-35 4. [Basic operation] Operation methods of motor
3
4
9
The basic parameter screen is displayed.
Check that the setting value of <FMOd: Frequency
command select 1> is "1."
In this setting, the voltage signal input to the
terminal [RR] should be the frequency command.
Here, the voltage input to the terminal [RR] is
adjusted with the potentiometer.
12 Press the [ESC] key or [F1] to [F4] keys to switch
to the [Standard mode] screen.
In the main area of the [Standard mode] screen, the output frequency (0.0 Hz) is displayed.
13 Turn on the external switch.
14 When you rotate the potentiometer, the frequency
command value increases, and the motor starts
running.
The following are always displayed in the status
area on the upper side of the screen regardless of
display mode. (From the left)
• The icon is rotating
• Operation status "RUN"
• Frequency command (display contents vary
depending on the setting of the parameter)
• Run command icon
15 When you turn off the external switch, the motor decelerates and stops.
Memo
• In some cases, for example, when the potentiometer is set to the maximum/minimum, you can
set the two frequency command points. The default setting is 0.0 Hz/60.0 Hz. For details, refer
to [7. 3. 2].
0.0HzSTOP
15:55
Basic parameters
CMOd : Run command select
vb : Manual torque boost 1
vL : Base frequency 1
0
4.80%
60.0Hz
Pt : V/f Pattern 0
FMOd : Frequency command select 1 1
F R
Easy Keypad Copy Monitor
Hz
30.0HzRUN
60.0
16:14
Top View Mode
Output frequency
: Frequency settings
by potentiometer
60Hz
0
PP
RR
MAX
MIN
MIN MAX
CC
Standard Mode
Easy Screen Copy Monitor
Hz
60.0HzRUN
60.0
20:52
F R
To Next Page
