5-27 5. [Fundamental operation] How to use parameters
3
4
5
9

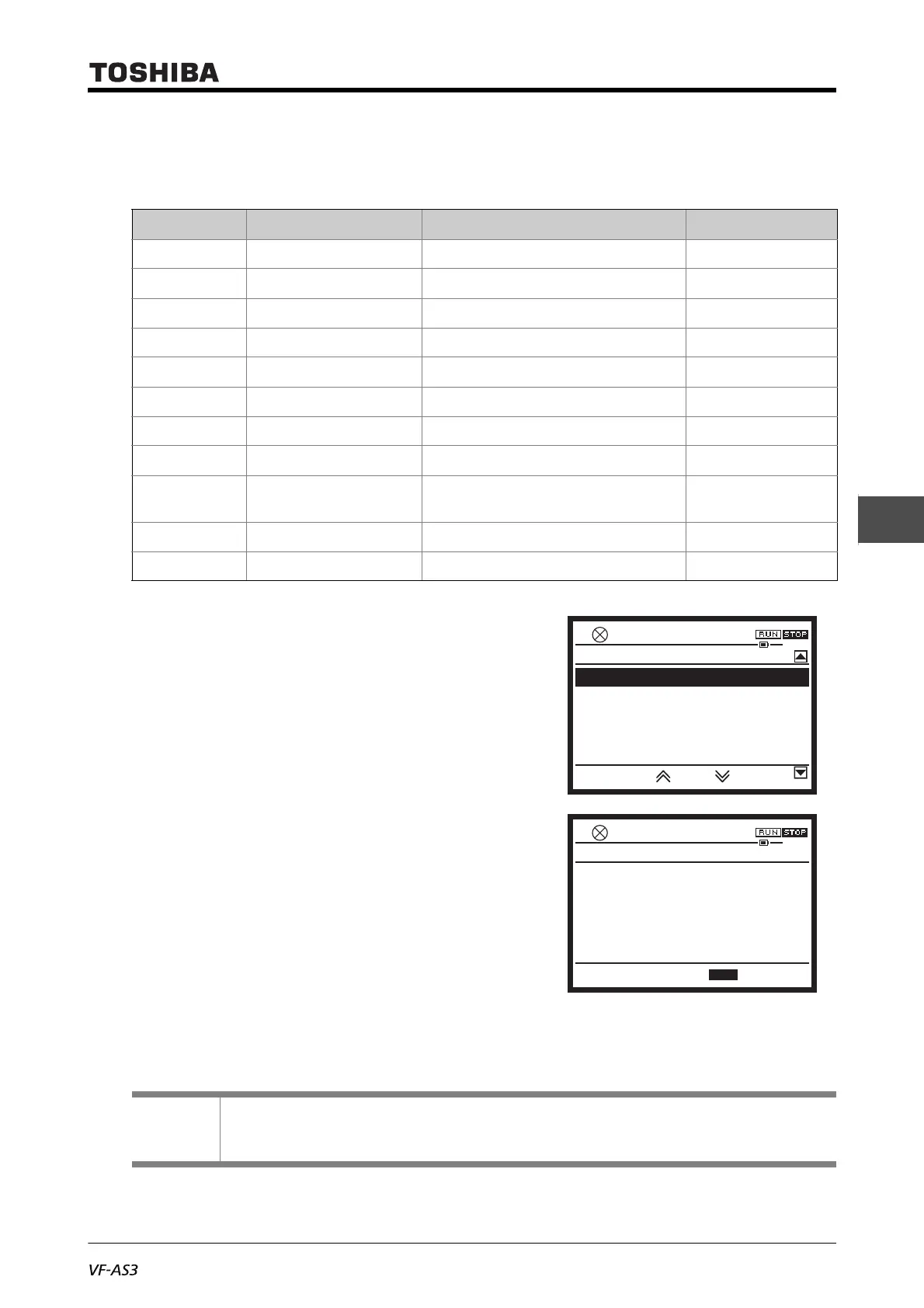

■ Setting parameters in [Easy mode]
Up to 32 parameters are displayed in [Easy mode]. Set among <F751: Easy setting 1> through
<F782: Easy setting 32>.
In [Easy mode], only parameters registered with <F751:
Easy setting 1> through <F782: Easy setting 32> appear
in the order of registration.
Set communication numbers of registered parameters
for <F751: Easy setting 1> through <F782: Easy setting
32>.
For communication numbers, refer to [11. 2] - [11. 5].
Set the parameter address you want to display to F751-
F782.
For example,
• in case the parameter F123 is set to F751, set 123 to
F751.
• in case the parameter A456 is set to F752, set 1456 to
F752.
• in case the parameter C789 is set to F753, set 2789 to F753.
Title Parameter name Adjustment range Default setting
F751 Easy setting 1 0 - 2999 3<CMOd>
F752 Easy setting 2 0 - 2999 4<FMOd>
F753 Easy setting 3 0 - 2999 9<ACC>
F754 Easy setting 4 0 - 2999 10<dEC>
F755 Easy setting 5 0 - 2999 12<UL>
F756 Easy setting 6 0 - 2999 13<LL>
F757 Easy setting 7 0 - 2999 31<tHrA>
F758 Easy setting 8 0 - 2999 6<FM>
F759 - F780 Easy setting 9 through
Easy setting 30
0 - 2999 999
(No function)
F781 Easy setting 31 0 - 2999 701<F701>
F782 Easy setting 32 0 - 2999 50<PSEL>
Memo
• When no parameter should be registered, set <F751: Easy setting 1> through <F782: Easy setting
32> to "999".
0.0HzSTOP
15:18
Extended parameters (F ---)
0
A752: Easy setting 2
A753: Easy setting 3
A754: Easy setting 4
A755: Easy setting 5
4
9
10
12
F7 -- F8 --
A751: Easy setting 1
3
0.0HzSTOP
15:18
Min: 0 Max: 2999
X1000 X100 X10 X1
F751 :Easy setting 1
3
